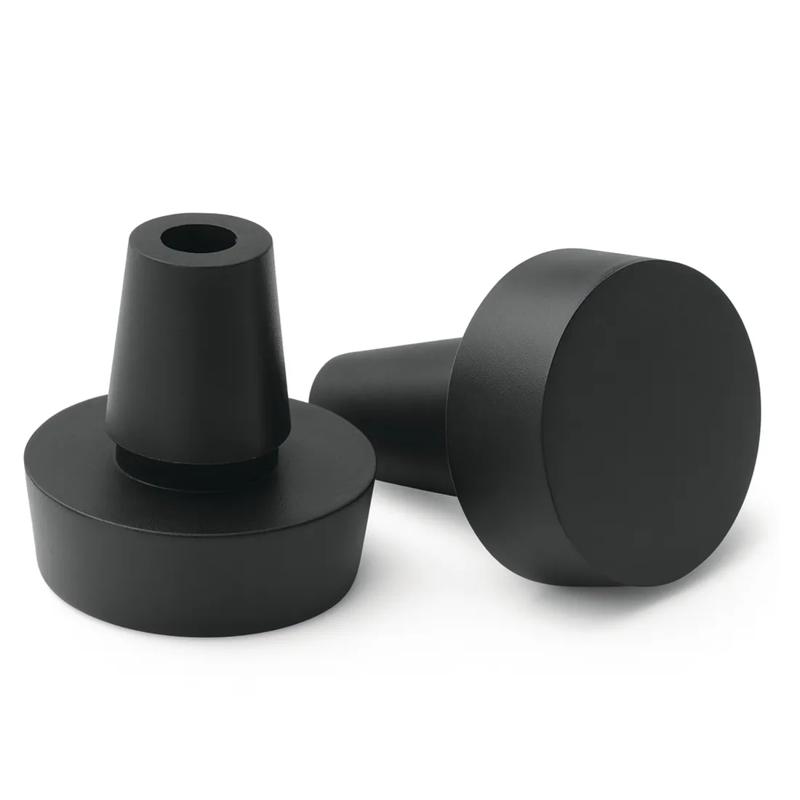

SRPOF - Push On Feet
Showing 1-5 of 5
Per page:1-5 of 5
Item Code | Gap Height | Color | Maximum Hole Diameter | Material | Head Diameter | Head Height | Base Height | Base Diameter | Panel Thickness | Type | Material Flammability Standard | Minimum Hole Diameter | Inside Diameter | UL/CSA Description | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
POF-40022 | 3.3 mm | Black | 3.8 mm | TPE/TPV | 4.4 mm | 4.1 mm | 1.5 | 7.9 | 3.2 mm | 1 | UL94 HB | 3.7 mm | 3.2 mm | UL E80017 | |
POF-12664 | 1.3 mm | Black | 7.1 mm | TPE/TPV | 8.6 mm | 4.1 mm | 5.1 | 15.7 | 1.2 mm | 3 | UL94 HB | 7.0 mm | 7.0 mm | UL E80017 | |
POF-40059 | 1.6 mm | Black | 9.6 mm | TPE | 12.7 mm | 3.6 mm | 12.2 | 12.7 | 1.5 mm | 2 | UL94 HB | 9.5 mm | 9.5 mm | UL E80017 | |
POF-40048 | 1.6 mm | Black | 4.6 mm | TPE | 6.1 mm | 3.0 mm | 2.3 | 7.9 | 1.5 mm | 1 | UL94 HB | 4.5 mm | 3.7 mm | UL E80017 | |
POF-50185 | 2.0 mm | Black | 6.1 mm | TPE | 7.3 mm | 8.6 mm | 4.6 | 13.4 | 1.9 mm | 3 | UL94 HB | 6.0 mm | 6.0 mm | UL E80017 |
Per page:
1-5 of 5
1–5 of 5 variants
Per page:
POF-40022
Gap Height
3.3 mm
Color
Black
Maximum Hole Diameter
3.8 mm
Material
TPE/TPV
POF-12664
Gap Height
1.3 mm
Color
Black
Maximum Hole Diameter
7.1 mm
Material
TPE/TPV
POF-40059
Gap Height
1.6 mm
Color
Black
Maximum Hole Diameter
9.6 mm
Material
TPE
POF-40048
Gap Height
1.6 mm
Color
Black
Maximum Hole Diameter
4.6 mm
Material
TPE
Per page:
1–5 of 6
