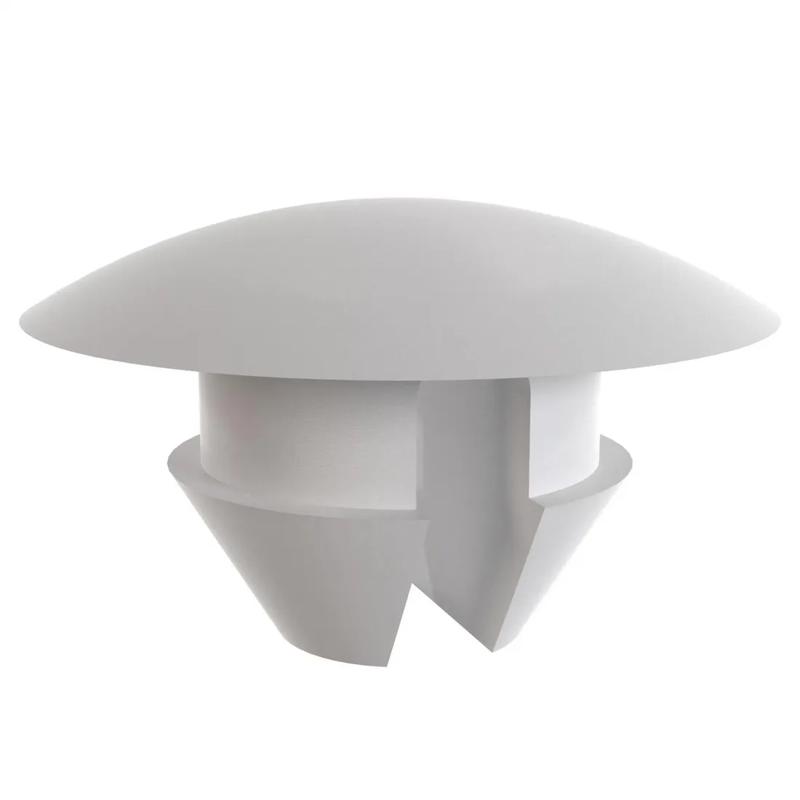

SRBDH - Domed Split Stem Bumper
Showing 1-6 of 6
Per page:1-6 of 6
Item Code | Color | Fitting Diameter | Accessory Type | Maximum Panel Thickness | Stem Style | Base Height | Base Diameter | Overall Height | Head Style | Type | Fitting Height | Length Under Head | Maximum Mounting Hole Size | Material | Base Material | Base Shape | Panel Thickness | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BDH025A | Natural | 5.54 mm | Split Stem Bumper | 1.8 mm | Split | 1.27 mm | 8.73 mm | 5.16 mm | Domed | Stem | 2.11 mm | 1.78 mm | 4.75 mm | Nylon 6 | PA | Round | 1.8 mm | |
BDH030A | Natural | 5.54 mm | Split Stem Bumper | 1.7 mm | Split | 2.36 mm | 9.91 mm | 6.35 mm | Domed | Stem | 2.24 mm | 1.73 mm | 4.75 mm | Nylon 6 | PA | Round | 1.7 mm | |
BDH040A | Natural | 6.17 mm | Split Stem Bumper | 4.0 mm | Split | 1.6 mm | 9.53 mm | 8.71 mm | Domed | Stem | 3.18 mm | 3.96 mm | 5.33 mm | Nylon 6 | PA | Round | 4.0 mm | |
BDH005A | Natural | 3.18 mm | Split Stem Bumper | 1.6 mm | Split | 2.36 mm | 6.35 mm | 5.16 mm | Domed | Stem | 1.17 mm | 1.6 mm | 2.77 mm | Nylon 6 | PA | Round | 1.6 mm | |
BDH020A | Natural | 4.39 mm | Split Stem Bumper | 2.4 mm | Split | 2.36 mm | 9.53 mm | 6.73 mm | Domed | Stem | 2.36 mm | 2.36 mm | 3.96 mm | Nylon 6 | PA | Round | 2.4 mm | |
BDH010A | Natural | 3.81 mm | Split Stem Bumper | 3.3 mm | Split | 1.17 mm | 9.53 mm | 7.8 mm | Domed | Stem | 3.3 mm | 3.3 mm | 3.18 mm | Nylon 6 | PA | Round | 3.3 mm |
Per page:
1-6 of 6
1–5 of 6 variants
Per page:
BDH025A
Color
Natural
Fitting Diameter
5.54 mm
Accessory Type
Split Stem Bumper
Maximum Panel Thickness
1.8 mm
BDH030A
Color
Natural
Fitting Diameter
5.54 mm
Accessory Type
Split Stem Bumper
Maximum Panel Thickness
1.7 mm
BDH040A
Color
Natural
Fitting Diameter
6.17 mm
Accessory Type
Split Stem Bumper
Maximum Panel Thickness
4.0 mm
BDH005A
Color
Natural
Fitting Diameter
3.18 mm
Accessory Type
Split Stem Bumper
Maximum Panel Thickness
1.6 mm
Per page:
1–5 of 7
