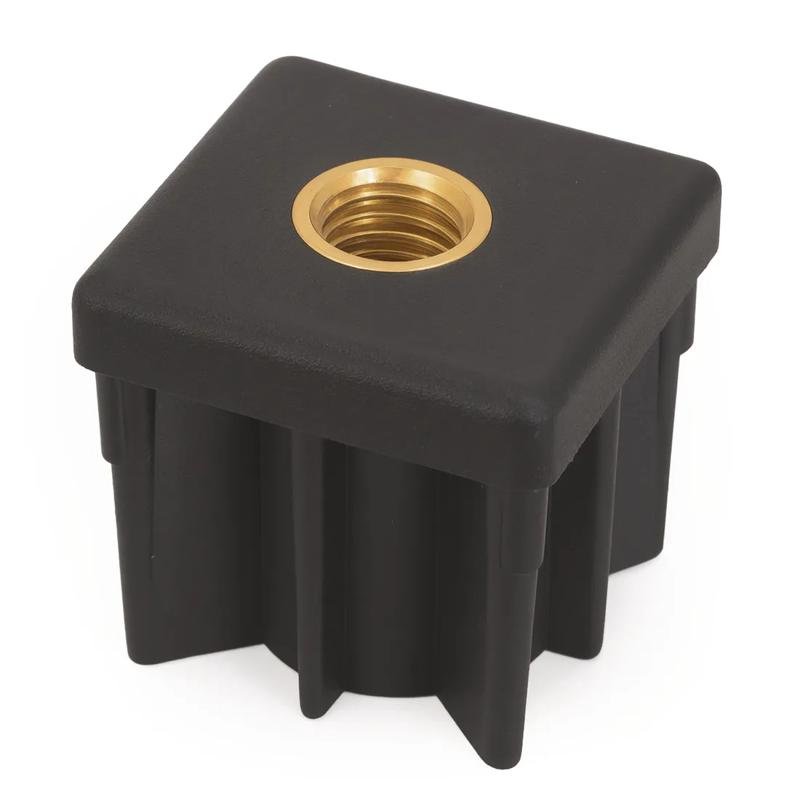

SRSQH - Square Heavy Duty Threaded Inserts
Showing 1-10 of 32
Per page:1-10 of 32
Item Code | Insert Material | Threaded Center | Max. Tube Gauge | Metal Prongs | Fitting Style | Maximum Static Load Capacity (Seed) | Pitch/TPI | Maximum Wall Thickness | Type | Tube Size | Color | Thread Size | Material | Head Shape | Finish | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SQH0450A | Brass | Y | 11 | Y | Push-Fit | 1800.0 lb | 10 TPI | 0.120 in | Heavy Duty | 1.500 in | Black | 3/4 in | Glass Filled Nylon;Brass | Square | - | |
SQH0400A | Brass | Y | 11 | Y | Push-Fit | 1350.0 lb | 11 TPI | 0.120 in | Heavy Duty | 1.500 in | Black | 5/8 in | Glass Filled Nylon;Brass | Square | - | |
SQH0800A | Brass | Y | 12 | Y | Push-Fit | 1350.0 lb | 11 TPI | 0.109 in | Heavy Duty | 2.000 in | Black | 5/8 in | Glass Filled Nylon;Brass | Square | - | |
SQH0200A | Brass | Y | 16 | Y | Push-Fit | 1350.0 lb | 11 TPI | 0.065 in | Heavy Duty | 1.500 in | Black | 5/8 in | Glass Filled Nylon;Brass | Square | - | |
SQH0650A | Brass | Y | 16 | Y | Push-Fit | 2000.0 lb | 10 TPI | 0.065 in | Heavy Duty | 2.000 in | Black | 3/4 in | Glass Filled Nylon;Brass | Square | - | |
SQH0550A | Brass | Y | 16 | Y | Push-Fit | 1350.0 lb | 13 TPI | 0.065 in | Heavy Duty | 2.000 in | Black | 1/2 in | Glass Filled Nylon;Brass | Square | - | |
SQH0350A | Brass | Y | 11 | Y | Push-Fit | 1350.0 lb | 13 TPI | 0.120 in | Heavy Duty | 1.500 in | Black | 1/2 in | Glass Filled Nylon;Brass | Square | - | |
SQH0250A | Brass | Y | 16 | Y | Push-Fit | 1800.0 lb | 10 TPI | 0.065 in | Heavy Duty | 1.500 in | Black | 3/4 in | Glass Filled Nylon;Brass | Square | - | |
SQH0500A | Brass | Y | 16 | Y | Push-Fit | 1350.0 lb | 16 TPI | 0.065 in | Heavy Duty | 2.000 in | Black | 3/8 in | Glass Filled Nylon;Brass | Square | - |
Per page:
1-10 of 32
1–5 of 32 variants
Per page:
SQH0450A
Insert Material
Brass
Threaded Center
Y
Max. Tube Gauge
11
Metal Prongs
Y
SQH0400A
Insert Material
Brass
Threaded Center
Y
Max. Tube Gauge
11
Metal Prongs
Y
SQH0800A
Insert Material
Brass
Threaded Center
Y
Max. Tube Gauge
12
Metal Prongs
Y
SQH0200A
Insert Material
Brass
Threaded Center
Y
Max. Tube Gauge
16
Metal Prongs
Y
Per page:
1–5 of 33
