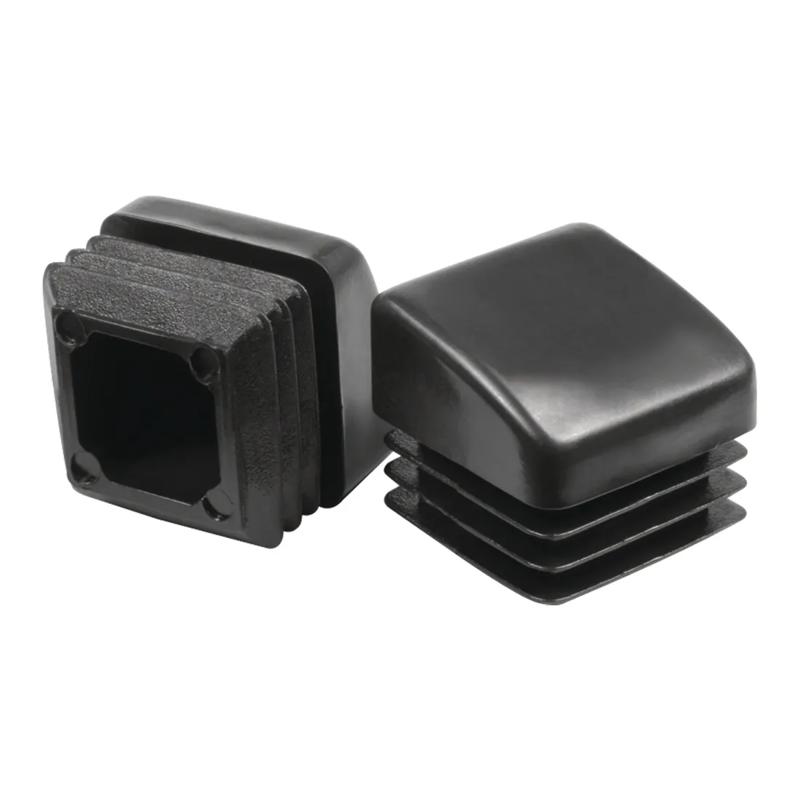

SRAFSQ - Square Angled Tube Inserts
Showing 1-3 of 3
Per page:1-3 of 3
Item Code | Threaded Center | Max. Tube Gauge | Fitting Style | Finish | Min. Tube Gauge | Maximum Wall Thickness | Included Angle | Maximum Wall Thickness | Tube Size | Color | Material | Head Shape | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
AFSQ10162015A | Y | 20 | Ribbed | Polished | 16 | 0.065 in | 15 ° | 0.035 in | 1.000 in | Black | LDPE | Angled | |
AFSQ07161825A | Y | 18 | Ribbed | Polished | 16 | 0.065 in | 25 ° | 0.049 in | 0.750 in | Black | LDPE | Angled | |
AFSQ07161805A | Y | 18 | Ribbed | Polished | 16 | 0.065 in | 5 ° | 0.049 in | 0.750 in | Black | LDPE | Angled |
Per page:
1-3 of 3
1–4 of 3 variants
Per page:
AFSQ10162015A
Threaded Center
Y
Max. Tube Gauge
20
Fitting Style
Ribbed
Finish
Polished
AFSQ07161825A
Threaded Center
Y
Max. Tube Gauge
18
Fitting Style
Ribbed
Finish
Polished
AFSQ07161805A
Threaded Center
Y
Max. Tube Gauge
18
Fitting Style
Ribbed
Finish
Polished
