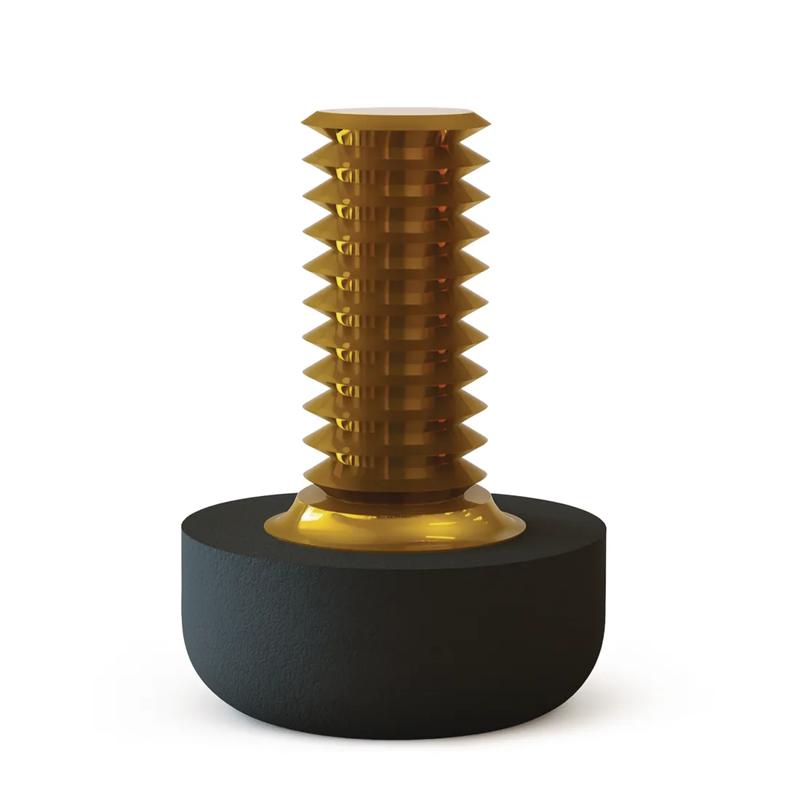

SRTB - Threaded Insert Bumper
Showing 1-4 of 4
Per page:1-4 of 4
Item Code | Color | Compression | Hardness | Base Diameter | Stud Material | Thread Size | Base Material | Base Height | Load Capacity | Base Shape | Overall Height | Thread Material | Mount Type | Thread Type | Thread Length | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TB-2 | Black | 5.0 kg | 40 - 50 Shore A | 9.5 | Brass | #8-32 | Rubber | 5.1 | 0.8 kg | - | - | - | - | - | - | |
TB-1 | Black | 5.0 kg | 40 - 50 Shore A | 9.5 | Brass | #6-32 | Rubber | 5.1 | 0.8 kg | - | - | - | - | - | - | |
TB-3 | Black | - | 40 - 50 Shore A | 9.5 mm | - | M3 | Butyl Rubber | 5.1 mm | - | Round | 15.3 mm | Brass | Threaded Stud | M3 | 10.2 mm | |
TB-4 | Black | - | 40 - 50 Shore A | 9.5 mm | - | M4 | Butyl Rubber | 5.1 mm | - | Round | 15.3 mm | Brass | Screw Mount | M4 | 10.2 mm |
Per page:
1-4 of 4
1–5 of 4 variants
Per page:
TB-2
Color
Black
Compression
5.0 kg
Hardness
40 - 50 Shore A
Base Diameter
9.5
TB-1
Color
Black
Compression
5.0 kg
Hardness
40 - 50 Shore A
Base Diameter
9.5
TB-3
Color
Black
Hardness
40 - 50 Shore A
Base Height
5.1 mm
Base Diameter
9.5 mm
TB-4
Color
Black
Hardness
40 - 50 Shore A
Base Height
5.1 mm
Base Diameter
9.5 mm
