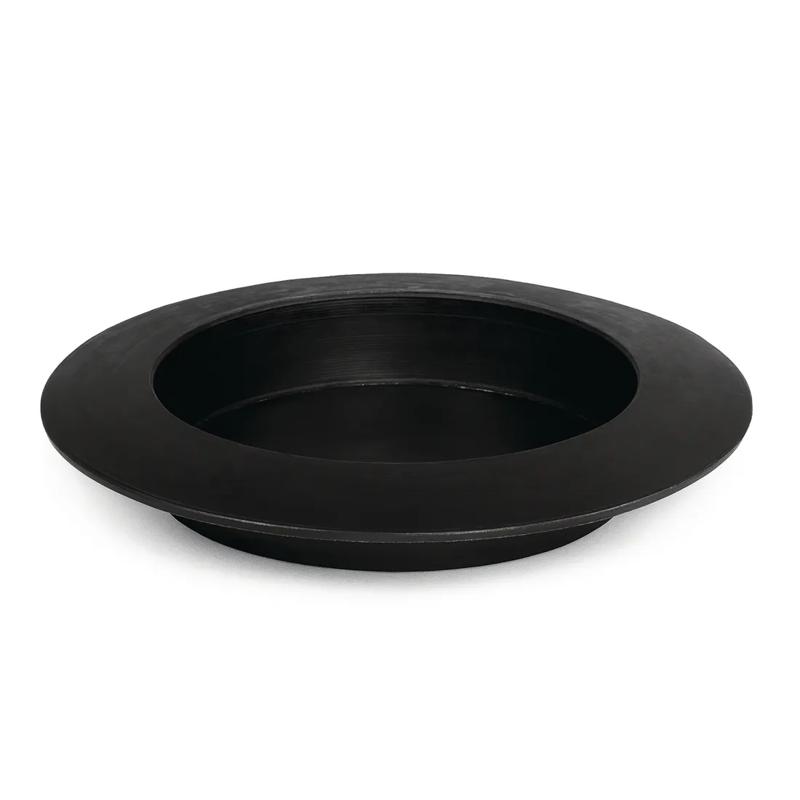

SRFPR - Raised-Face Protector Plugs
Showing 1-10 of 10
Per page:1-10 of 10

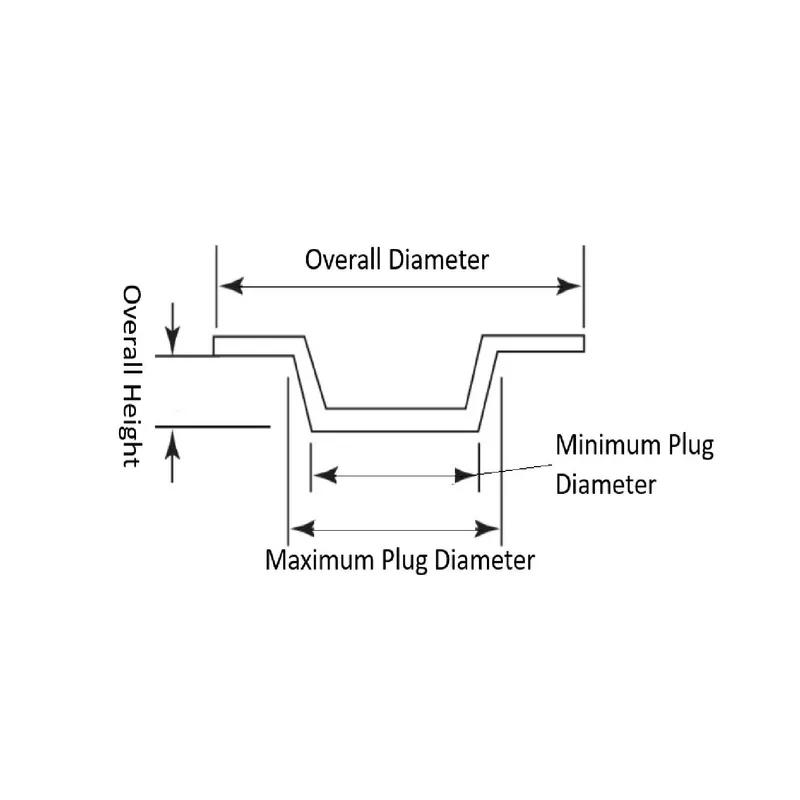

Item Code | Color | Minimum Plug Diameter | Flange Diameter | Nominal Pipe Size | Flange Thickness | Height Under Flange | Material | Overall Diameter | Overall Height | Maximum Plug Diameter | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|
FPR6A | Black | 5.950 in | 8.810 in | 6.000 in | 0.125 in | 1.265 in | PE | 8.810 in | 1.390 in | 6.050 in | |
FPR10A | Black | 9.995 | 15.215 in | 10.000 in | 0.170 | 1.330 | PE | 12.925 | 38.1 | 10.150 | |
FPR1A | Black | 1.110 | 2.080 in | 1.000 in | 0.150 | 0.375 | PE | 2.080 | 13.3 | 1.156 | |
FPR2-1/2A | Black | 2.490 | 4.315 in | 2-1/2 in | 0.130 | 0.480 | PE | 4.315 | 15.5 | 2.510 | |
FPR2A | Black | 2.050 | 3.805 in | 2.000 in | 0.140 | 0.440 | PE | 3.805 | 14.7 | 2.075 | |
FPR4A | Black | 3.995 | 6.550 in | 4.000 in | 0.130 | 0.925 | PE | 6.550 | 26.8 | 4.095 | |
FPR3A | Black | 3.030 | 5.195 in | 3.000 in | 0.132 | 0.730 | PE | 5.195 | 21.9 | 3.110 | |
FPR12A | Black | 12.010 | 12.925 in | 12.000 in | 0.165 | 1.330 | PE | 15.215 | 38 | 12.155 | |
FPR5A | Black | 4.990 | 7.475 in | 5.000 in | 0.125 | 1.070 | PE | 7.475 | 30.4 | 5.080 |
Per page:
1-10 of 10
1–5 of 10 variants
Per page:
FPR6A
Color
Black
Minimum Plug Diameter
5.950 in
Flange Diameter
8.810 in
Nominal Pipe Size
6.000 in
FPR10A
Color
Black
Minimum Plug Diameter
9.995
Flange Diameter
15.215 in
Flange Thickness
0.170
FPR1A
Color
Black
Minimum Plug Diameter
1.110
Flange Diameter
2.080 in
Flange Thickness
0.150
FPR2-1/2A
Color
Black
Minimum Plug Diameter
2.490
Flange Diameter
4.315 in
Flange Thickness
0.130
Per page:
1–5 of 11
