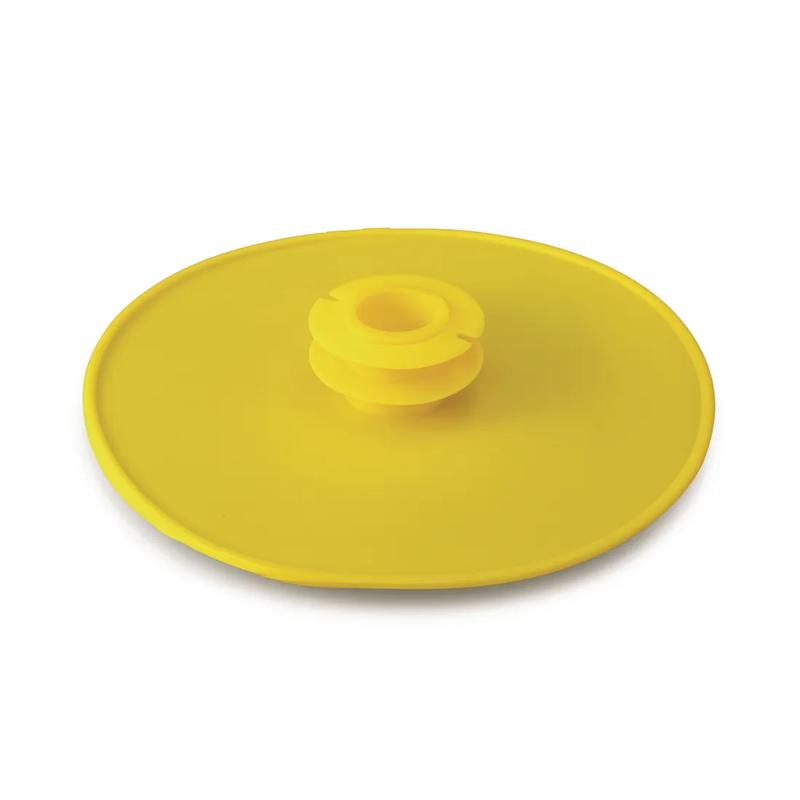

SRPI - Push-In Full-Face Protectors
Showing 1-10 of 15
Per page:1-10 of 15

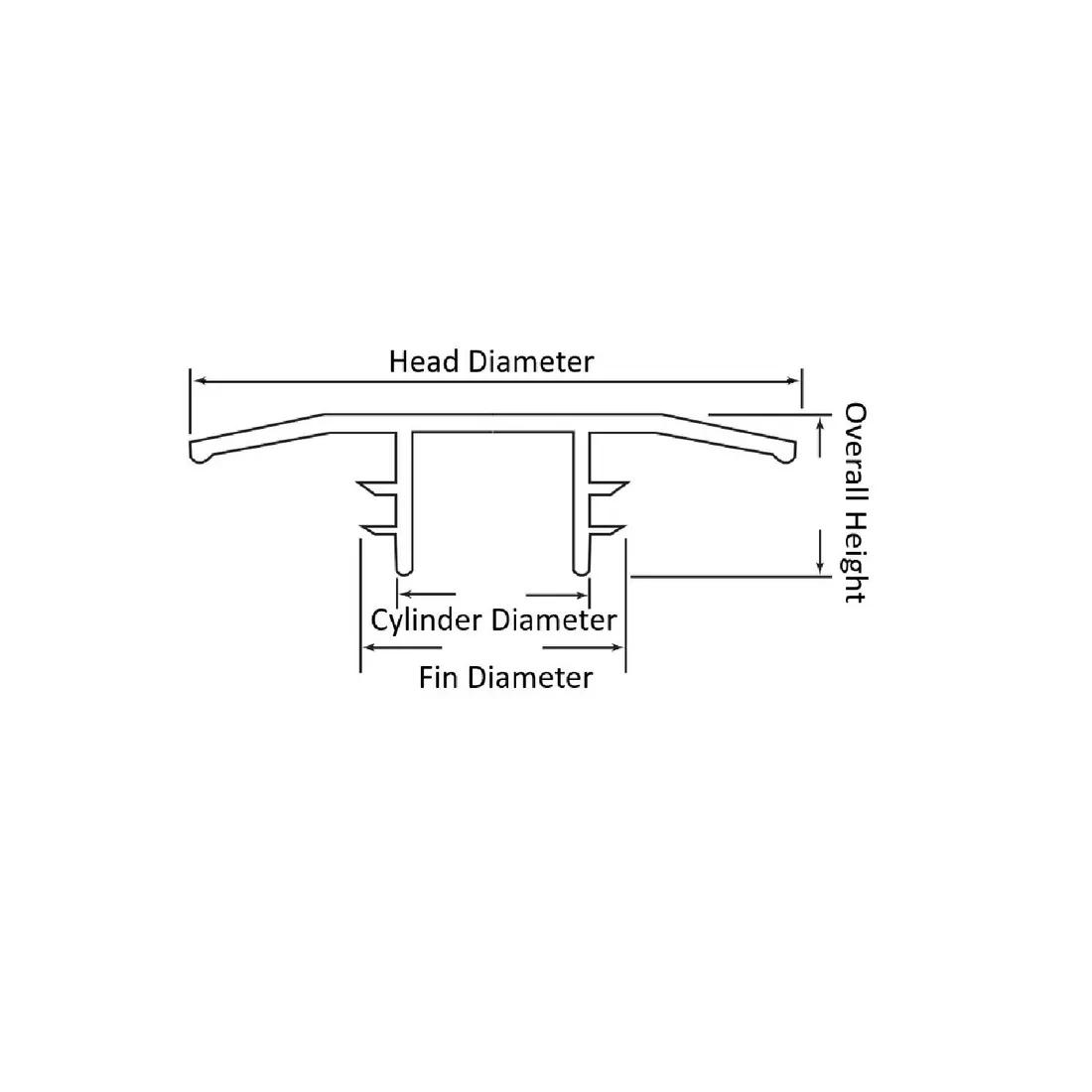

Item Code | Color | Material | Cylinder Diameter | Head Diameter | Nominal Pipe Size | Overall Height | Fin Diameter | Request Quote |
|---|---|---|---|---|---|---|---|---|
PI200A | Yellow | PE | 186.94 mm | 335.99 mm | DN 200, 8.000 in | 33.47 mm | 208.58 mm | |
PI150A | Yellow | PE | 139.49 mm | 279.98 mm | DN 150, 6.000 in | 32.18 mm | 163.98 mm | |
PI15A | Yellow | PE | 9.09 mm | 89.99 mm | DN 15, 1/2 in | 16.07 mm | 19.17 mm | |
PI100A | Yellow | PE | 89.99 mm | 216.99 mm | DN 100, 4.000 in | 23.59 mm | 109.24 mm | |
PI10A | Yellow | PE | 6.98 mm | 85.97 mm | DN 10, 3/8 in | 15.39 mm | 14.09 mm | |
PI20A | Yellow | PE | 14.3 mm | 99.99 mm | DN 20, 3/4 in | 21.08 mm | 23.97 mm | |
PI50A | Yellow | PE | 39.97 mm | 159.99 mm | DN 50, 2.000 in | 20.29 mm | 55.98 mm | |
PI32A | Yellow | PE | 22.47 mm | 135.99 mm | DN 32, 1-1/4 in | 19.98 mm | 39.09 mm | |
PI125A | Yellow | PE | 110.99 mm | 245.99 mm | DN 125, 5.000 in | 26.08 mm | 133.98 mm |
Per page:
1-10 of 15
1–5 of 15 variants
Per page:
PI200A
Color
Yellow
Material
PE
Cylinder Diameter
186.94 mm
Head Diameter
335.99 mm
PI150A
Color
Yellow
Material
PE
Cylinder Diameter
139.49 mm
Head Diameter
279.98 mm
PI15A
Color
Yellow
Material
PE
Cylinder Diameter
9.09 mm
Head Diameter
89.99 mm
PI100A
Color
Yellow
Material
PE
Cylinder Diameter
89.99 mm
Head Diameter
216.99 mm
Per page:
1–5 of 16
