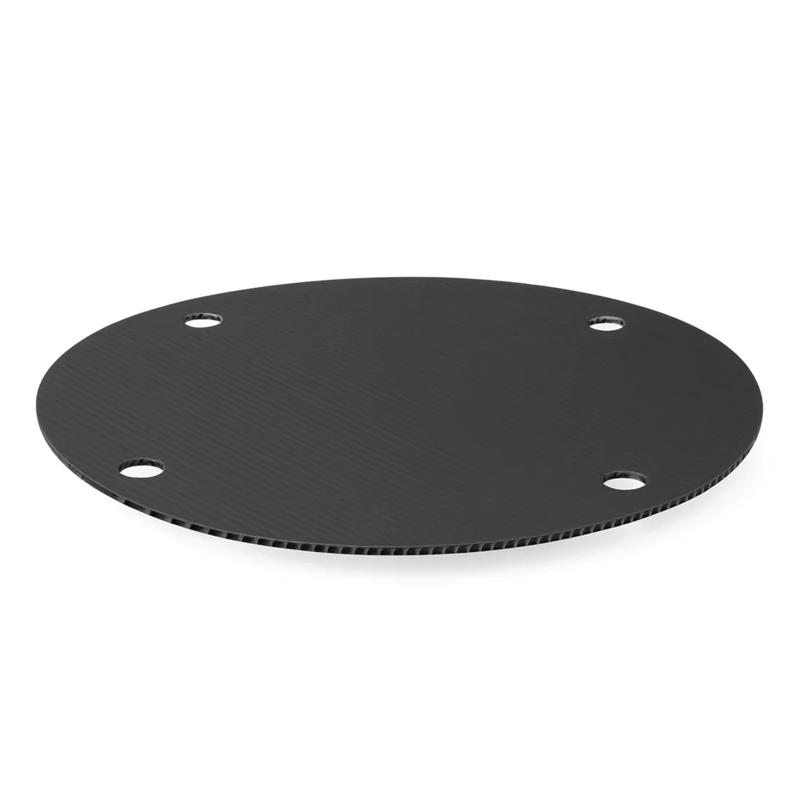

SRPCL - Flange Protection Discs
Showing 1-10 of 63
Per page:1-10 of 63
Item Code | Color | Material | Nominal Pipe Size | Outside Diameter | Compatible Fasteners | Bolt Hole Size | Bolt Circle Diameter | Request Quote |
|---|---|---|---|---|---|---|---|---|
PCL6DN15A | Black | Corrugated PP | DN 15 | 80.0 mm | CT022B | 11.0 mm | 55.0 mm | |
PCL6DN20A | Black | Corrugated PP | DN 20 | 90.0 mm | CT022B | 11.0 mm | 65.0 mm | |
PCL6DN25A | Black | Corrugated PP | DN 25 | 100.0 mm | CT022B | 11.0 mm | 75.0 mm | |
PCL6DN150A | Black | Corrugated PP | DN 150 | 265.0 mm | CT022B | 18.0 mm | 225.0 mm | |
PCL6DN65A | Black | Corrugated PP | DN 65 | 160.0 mm | CT022B | 14.0 mm | 130.0 mm | |
PCL6DN100A | Black | Corrugated PP | DN 100 | 210.0 mm | CT022B | 18.0 mm | 170.0 mm | |
PCL6DN10A | Black | Corrugated PP | DN 10 | 75.0 mm | CT022B | 11.0 mm | 50.0 mm | |
PCL6DN500A | Black | Corrugated PP | DN 500 | 645.0 mm | CT022B | 22.0 mm | 600.0 mm | |
PCL6DN32A | Black | Corrugated PP | DN 32 | 120.0 mm | CT022B | 14.0 mm | 90.0 mm |
Per page:
1-10 of 63
1–5 of 63 variants
Per page:
PCL6DN15A
Color
Black
Material
Corrugated PP
Nominal Pipe Size
DN 15
Outside Diameter
80.0 mm
PCL6DN20A
Color
Black
Material
Corrugated PP
Nominal Pipe Size
DN 20
Outside Diameter
90.0 mm
PCL6DN25A
Color
Black
Material
Corrugated PP
Nominal Pipe Size
DN 25
Outside Diameter
100.0 mm
PCL6DN150A
Color
Black
Material
Corrugated PP
Nominal Pipe Size
DN 150
Outside Diameter
265.0 mm
Per page:
1–5 of 64
