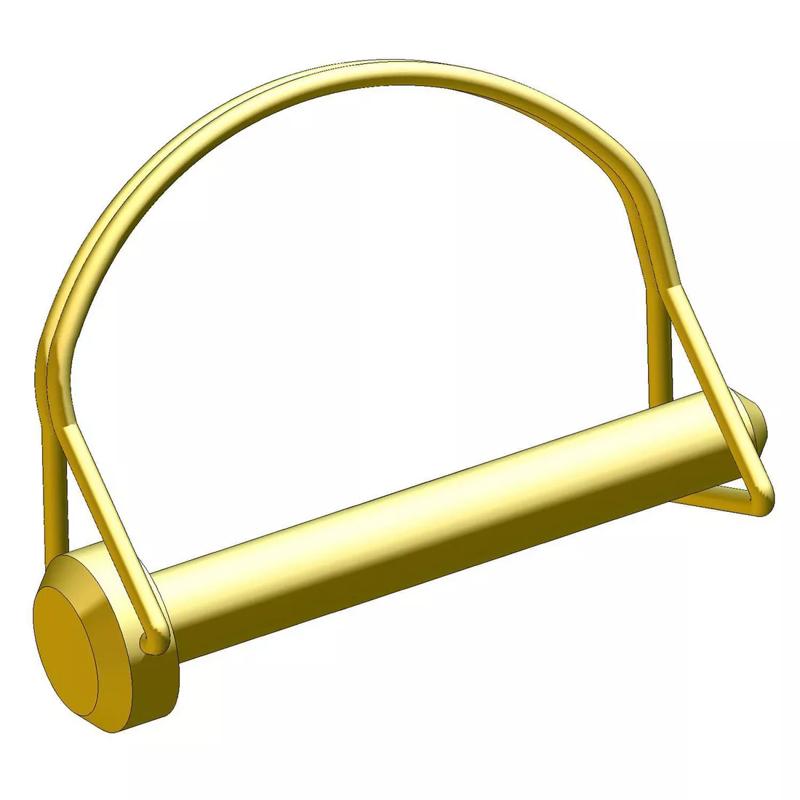

SRWL - Wire Lock Pins
Showing 1-7 of 7
Per page:1-7 of 7
Item Code | Pin Diameter | Overall Length | Wire Diameter | Usable Length | Pin Material | Shape | Grade | Pin Coating | Request Quote |
|---|---|---|---|---|---|---|---|---|---|
WL4X1750RND--Y2R | 0.250 in | 2.500 in | 0.092 in | 1.750 in | Steel | Round | Grade 2 | Yellow Trivalent Zinc Plated | |
WL4X2312RND--Y2R | 0.250 in | 2.875 in | 0.092 in | 2.312 in | Steel | Round | Grade 2 | Yellow Trivalent Zinc Plated | |
WL3X1750RND--23 | 0.187 in | 2.300 in | 0.092 in | 1.750 in | Steel | Round | Grade 2 | Black Hexavalent Zinc Plated | |
WL6X2250RND--Y2R | 0.375 in | 3.125 in | 0.092 in | 2.250 in | Steel | Round | Grade 2 | Yellow Trivalent Zinc Plated | |
WL5X2375SQ---Y2R | 0.312 in | 3.000 in | 0.092 in | 2.380 in | Steel | Square | Grade 2 | Yellow Trivalent Zinc Plated | |
WL6X2250SQ---Y2R | 0.375 in | 3.125 in | 0.092 in | 2.250 in | Steel | Square | Grade 2 | Yellow Trivalent Zinc Plated | |
WL5X2375RND--Y2R | 0.312 in | 3.000 in | 0.092 in | 2.380 in | Steel | Round | Grade 2 | Yellow Trivalent Zinc Plated |
Per page:
1-7 of 7
1–5 of 7 variants
Per page:
WL4X1750RND--Y2R
Pin Diameter
0.250 in
Overall Length
2.500 in
Wire Diameter
0.092 in
Usable Length
1.750 in
WL4X2312RND--Y2R
Pin Diameter
0.250 in
Overall Length
2.875 in
Wire Diameter
0.092 in
Usable Length
2.312 in
WL3X1750RND--23
Pin Diameter
0.187 in
Overall Length
2.300 in
Wire Diameter
0.092 in
Usable Length
1.750 in
WL6X2250RND--Y2R
Pin Diameter
0.375 in
Overall Length
3.125 in
Wire Diameter
0.092 in
Usable Length
2.250 in
Per page:
1–5 of 8
