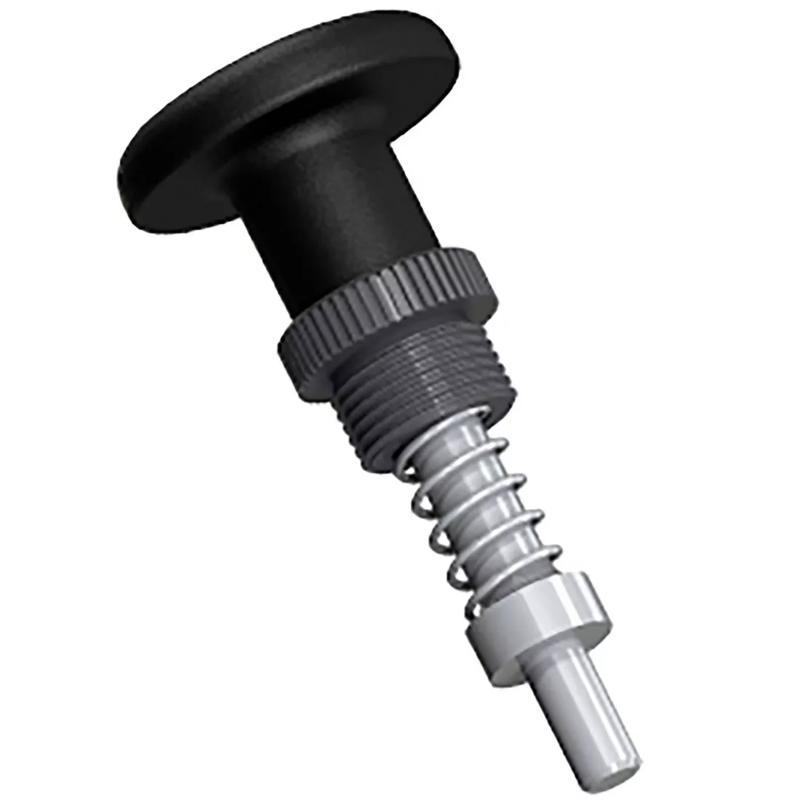

Item Code | Barrel Height | Barrel Material | Overall Length | Barrel Diameter | Knob Diameter | Pin Material | Knob Color | Tip Shape | Knob Material | Barrel Coating | Lock Out Option | Grade | Type | Pin Coating | Nose Diameter | Nose Length | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PI1/2S2.25-BPL5 | 2.250 in | Steel | 4.270 in | 1.000 in | 1.640 in | Steel | Black | Short | PP | Plain | No | C1022;1215;C1010-C1021 | Push Pull | Clear Zinc Plated | 0.500 in | 0.550 in | |
PI1/2-1.5-B-PL5 | 1.500 in | Steel | 3.840 in | 1.000 in | 1.640 in | Steel | Black | Standard Straight | PP | Plain | No | C1022;1215;C1010-C1021 | Push Pull | Clear Zinc Plated | 0.500 in | 0.875 in | |
PI5/16-1.5-BPL5 | 1.500 in | Steel | 3.590 in | 1.000 in | 1.640 in | Steel | Black | Standard Straight | PP | Plain | No | C1022;1215;C1010-C1021 | Push Pull | Clear Zinc Plated | 0.312 in | 0.610 in | |
PI3/8-1.5-B-PL5 | 1.500 in | Steel | 3.570 in | 1.000 in | 1.640 in | Steel | Black | Standard Straight | PP | Plain | No | C1022;1215;C1010-C1021 | Push Pull | Clear Zinc Plated | 0.375 in | 0.600 in | |
PI1/2T1.5-B-PL5 | 1.500 in | Steel | 3.620 in | 1.000 in | 1.640 in | Steel | Black | Tapered | PP | Plain | No | C1022;1215;C1010-C1021 | Push Pull | Clear Zinc Plated | 0.500 in | 0.625 in | |
PI1/2S1.5-B-PL5 | 1.500 in | Steel | 3.540 in | 1.000 in | 1.640 in | Steel | Black | Short | PP | Plain | No | C1022;1215;C1010-C1021 | Push Pull | Clear Zinc Plated | 0.500 in | 0.562 in | |
PI3/8-1.5LOBPL5 | 1.500 in | Steel | 3.550 in | 1.000 in | 1.640 in | Steel | Black | Standard Straight | PP | Plain | Yes | C1022;1215;C1010-C1021 | Push Pull | Clear Zinc Plated | 0.375 in | 0.610 in |
Barrel Height
2.250 in
Barrel Material
Steel
Overall Length
4.270 in
Barrel Diameter
1.000 in
Barrel Height
1.500 in
Barrel Material
Steel
Overall Length
3.840 in
Barrel Diameter
1.000 in
Barrel Height
1.500 in
Barrel Material
Steel
Overall Length
3.590 in
Barrel Diameter
1.000 in
Barrel Height
1.500 in
Barrel Material
Steel
Overall Length
3.570 in
Barrel Diameter
1.000 in
