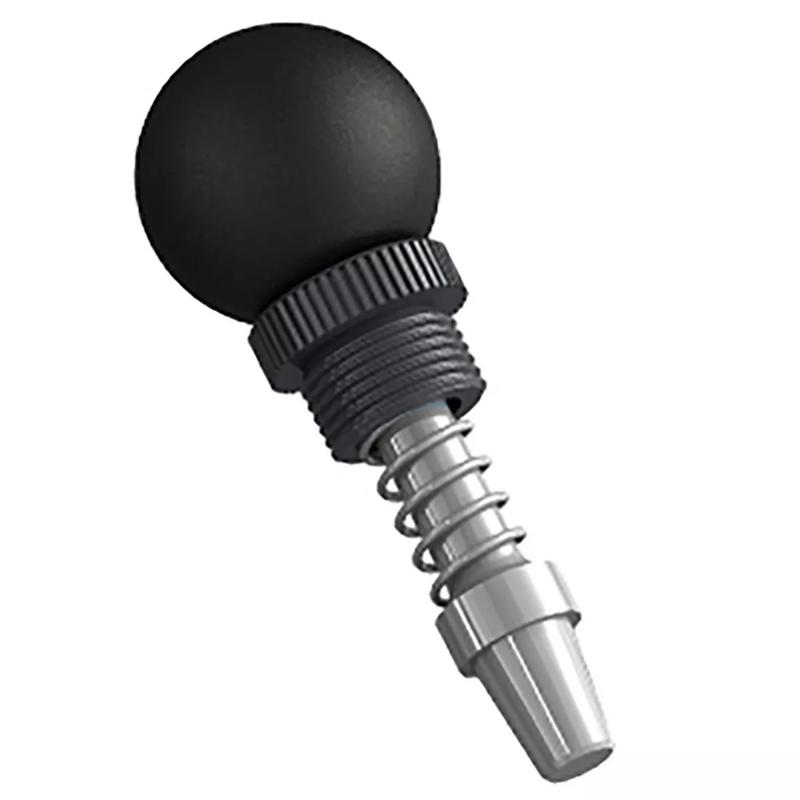

SRKNPI - Retractable Spring Plungers, Weld Mount
Showing 1-10 of 14
Per page:1-10 of 14
Item Code | Barrel Height | Barrel Material | Overall Length | Barrel Diameter | Knob Diameter | Pin Material | Knob Color | Tip Shape | Knob Material | Barrel Coating | Lock Out Option | Grade | Type | Pin Coating | Nose Diameter | Nose Length | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PI1/2S2.25-B-B3 | 2.250 in | Steel | 4.410 in | 1.000 in | 1.360 in | Steel | Black | Short | PP | Plain | No | C1022;1215;C1010-C1021 | Ball | Clear Zinc Plated | 0.500 in | 0.550 in | |
PI1/2S1.5-B--B3 | 1.500 in | Steel | 3.620 in | 1.000 in | 1.360 in | Steel | Black | Short | PP | Plain | No | C1022;1215;C1010-C1021 | Ball | Clear Zinc Plated | 0.500 in | 0.562 in | |
PI1/2T1.5-B--B3 | 1.500 in | Steel | 3.680 in | 1.000 in | 1.360 in | Steel | Black | Tapered | PP | Plain | No | C1022;1215;C1010-C1021 | Ball | Clear Zinc Plated | 0.500 in | 0.625 in | |
PI1/2-1.5-B-TR6 | 1.500 in | Steel | 4.080 in | 1.000 in | 2.270 in | Steel | Black | Standard Straight | PP | Plain | No | C1022;1215;C1010-C1021 | T-Handle | Clear Zinc Plated | 0.500 in | 0.875 in | |
PI1/2S1.5-B-TR6 | 1.500 in | Steel | 3.730 in | 1.000 in | 2.270 in | Steel | Black | Short | PP | Plain | No | C1022;1215;C1010-C1021 | T-Handle | Clear Zinc Plated | 0.500 in | 0.562 in | |
PI1/2S2.25-BTR6 | 2.250 in | Steel | 4.530 in | 1.000 in | 2.270 in | Steel | Black | Short | PP | Plain | No | C1022;1215;C1010-C1021 | T-Handle | Clear Zinc Plated | 0.500 in | 0.550 in | |
PI1/2-1.5-B--B3 | 1.500 in | Steel | 3.970 in | 1.000 in | 1.360 in | Steel | Black | Standard Straight | PP | Plain | No | C1022;1215;C1010-C1021 | Ball | Clear Zinc Plated | 0.500 in | 0.875 in | |
PI3/8-1.5-B--B3 | 1.500 in | Steel | 3.680 in | 1.000 in | 1.360 in | Steel | Black | Standard Straight | PP | Plain | No | C1022;1215;C1010-C1021 | Ball | Clear Zinc Plated | 0.375 in | 0.600 in | |
PI5/16-1.5-B-B3 | 1.500 in | Steel | 3.720 in | 1.000 in | 1.360 in | Steel | Black | Standard Straight | PP | Plain | No | C1022;1215;C1010-C1021 | Ball | Clear Zinc Plated | 0.312 in | 0.610 in |
Per page:
1-10 of 14
1–5 of 14 variants
Per page:
PI1/2S2.25-B-B3
Barrel Height
2.250 in
Barrel Material
Steel
Overall Length
4.410 in
Barrel Diameter
1.000 in
PI1/2S1.5-B--B3
Barrel Height
1.500 in
Barrel Material
Steel
Overall Length
3.620 in
Barrel Diameter
1.000 in
PI1/2T1.5-B--B3
Barrel Height
1.500 in
Barrel Material
Steel
Overall Length
3.680 in
Barrel Diameter
1.000 in
PI1/2-1.5-B-TR6
Barrel Height
1.500 in
Barrel Material
Steel
Overall Length
4.080 in
Barrel Diameter
1.000 in
Per page:
1–5 of 15
