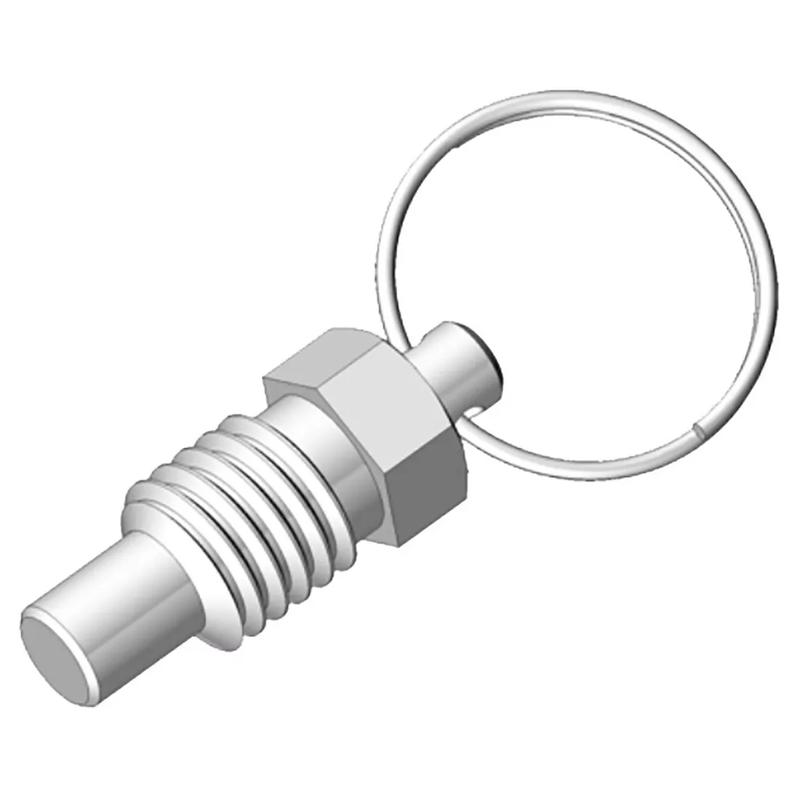

SRSP - Non Lock-Out Short Pull Ring Plunger Pins
Showing 1-10 of 12
Per page:1-10 of 12
Item Code | Barrel Height | Ring Outside Diameter (Seed) | Body Size | Head Height | Thread Length | Initial End Force | Head Width Across Flats | Type | Final End Force | Locking Function | Threadlocker | Thread Size | Material | Pin Coating | Nose Diameter | Nose Length | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SP6C--SR--V--21 | 0.190 in | 0.750 in | 0.630 in | 0.130 in | 0.440 | 0.750 in | 0.380 in | Ring Pull Short | 3.000 in | Non Lock-Out | Yes | 3/8-16 | Steel | Clear Zinc Plated | 0.250 in | 0.280 in | |
SP8C--SR--V--21 | 0.250 in | 1.000 in | 0.810 in | 0.130 in | 0.560 | 1.000 in | 0.500 in | Ring Pull Short | 4.000 in | Non Lock-Out | Yes | 1/2-13 | Steel | Clear Zinc Plated | 0.310 in | 0.380 in | |
SP1C--SR--V--21 | 0.310 in | 1.000 in | 1.000 in | 0.130 in | 0.690 | 1.250 in | 0.620 in | Ring Pull Short | 5.000 in | Non Lock-Out | Yes | 5/8-11 | Steel | Clear Zinc Plated | 0.380 in | 0.440 in | |
SP6C--SR--V--70 | 0.190 in | 0.750 in | 0.630 in | 0.130 in | 0.440 | 0.750 in | 0.380 in | Ring Pull Short | 3.000 in | Non Lock-Out | Yes | 3/8-16 | Stainless Steel | Plain | 0.250 in | 0.280 in | |
SP8C--SR-----70 | 0.250 in | 1.000 in | 0.810 in | 0.130 in | 0.560 | 1.000 in | 0.500 in | Ring Pull Short | 4.000 in | Non Lock-Out | No | 1/2-13 | Stainless Steel | Plain | 0.310 in | 0.380 in | |
SP4C--SR--V--21* | 0.180 in | 0.750 in | 0.440 in | - | 0.310 in | 0.500 in | 0.250 in | Ring Pull Short | 2.000 in | Non Lock-Out | Yes | 1/4-20 | Steel | Clear Zinc Plated | 0.160 in | 0.190 in | |
SP6C--SR-----70 | 0.190 in | 0.750 in | 0.630 in | 0.130 in | 0.440 | 0.750 in | 0.380 in | Ring Pull Short | 3.000 in | Non Lock-Out | No | 3/8-16 | Stainless Steel | Plain | 0.250 in | 0.280 in | |
SP8C--SR-----21 | 0.250 in | 1.000 in | 0.810 in | 0.130 in | 0.560 | 1.000 in | 0.500 in | Ring Pull Short | 4.000 in | Non Lock-Out | No | 1/2-13 | Steel | Clear Zinc Plated | 0.310 in | 0.380 in | |
SP1C--SR-----21 | 0.310 in | 1.000 in | 1.000 in | 0.130 in | 0.690 | 1.250 in | 0.620 in | Ring Pull Short | 5.000 in | Non Lock-Out | No | 5/8-11 | Steel | Clear Zinc Plated | 0.380 in | 0.440 in |
Per page:
1-10 of 12
1–5 of 12 variants
Per page:
SP6C--SR--V--21
Barrel Height
0.190 in
Ring Outside Diameter (Seed)
0.750 in
Body Size
0.630 in
Head Height
0.130 in
SP8C--SR--V--21
Barrel Height
0.250 in
Ring Outside Diameter (Seed)
1.000 in
Body Size
0.810 in
Head Height
0.130 in
SP1C--SR--V--21
Barrel Height
0.310 in
Ring Outside Diameter (Seed)
1.000 in
Body Size
1.000 in
Head Height
0.130 in
SP6C--SR--V--70
Barrel Height
0.190 in
Ring Outside Diameter (Seed)
0.750 in
Body Size
0.630 in
Head Height
0.130 in
Per page:
1–5 of 13
