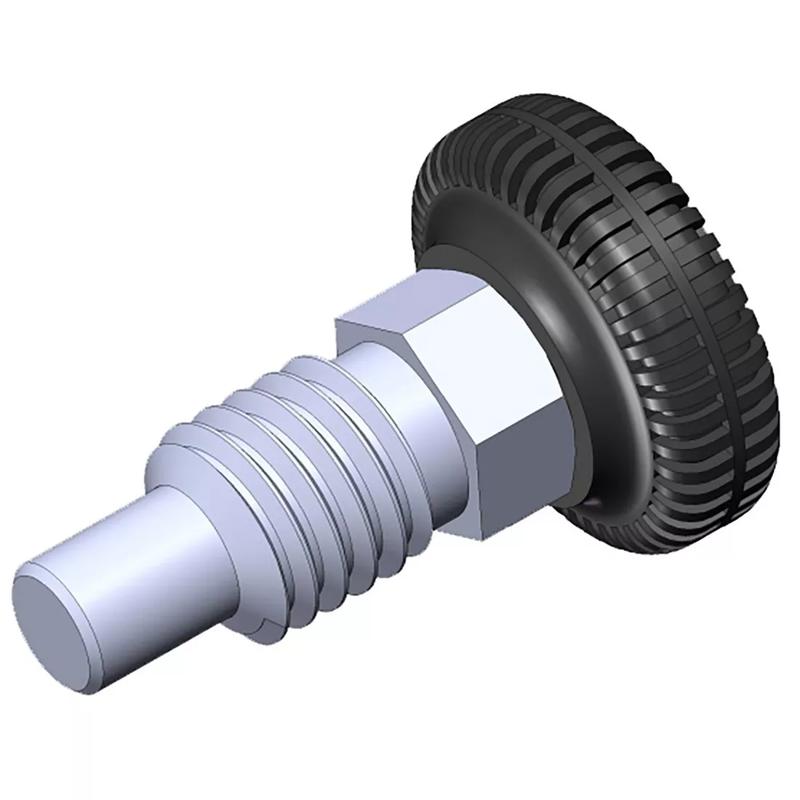

SRSP - Non Lock-Out Plastic Knob Plunger Pins
Showing 1-6 of 6
Per page:1-6 of 6
Item Code | Barrel Height | Head Diameter | Body Size | Head Height | Thread Length | Pin Material | Initial End Force | Type | Final End Force | Locking Function | Threadlocker | Knob Material | Thread Size | Material | Pin Coating | Nose Diameter | Nose Length | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SP4C--SK3-V--21* | 0.170 in | 0.750 in | 0.440 in | 0.460 in | 0.310 in | Steel | 0.500 in | Push Pull | 2.000 in | Non Lock-Out | Yes | PP | 1/4-20 | PP;Steel | Clear Zinc Plated | 0.160 in | 0.190 in | |
SP6C--SK3-V--21 | 0.170 in | 0.750 in | 0.630 in | 0.460 in | 0.310 | Steel | 0.750 in | Push Pull | 3.000 in | Non Lock-Out | Yes | PP | 3/8-16 | PP;Steel | Clear Zinc Plated | 0.250 in | 0.280 in | |
SP8C--SK4-V--21 | 0.170 in | 1.000 in | 0.810 in | 0.580 in | 0.430 | Steel | 1.000 in | Push Pull | 4.000 in | Non Lock-Out | Yes | PP | 1/2-13 | PP;Steel | Clear Zinc Plated | 0.310 in | 0.380 in | |
SP4C--SK3----21* | 0.170 in | 0.750 in | 0.440 in | 0.460 in | 0.310 in | Steel | 0.500 in | Push Pull | 2.000 in | Non Lock-Out | No | PP | 1/4-20 | PP;Steel | Clear Zinc Plated | 0.160 in | 0.190 in | |
SP6C--SK3----21 | 0.170 in | 0.750 in | 0.630 in | 0.460 in | 0.310 in | Steel | 0.750 in | Push Pull | 3.000 in | Non Lock-Out | No | PP | 3/8-16 | PP;Steel | Clear Zinc Plated | 0.250 in | 0.280 in | |
SP8C--SK4----21 | 0.170 in | 1.000 in | 0.810 in | 0.580 in | 0.430 | Steel | 1.000 in | Push Pull | 4.000 in | Non Lock-Out | No | PP | 1/2-13 | PP;Steel | Clear Zinc Plated | 0.310 in | 0.380 in |
Per page:
1-6 of 6
1–5 of 6 variants
Per page:
SP4C--SK3-V--21*
Barrel Height
0.170 in
Head Diameter
0.750 in
Body Size
0.440 in
Head Height
0.460 in
SP6C--SK3-V--21
Barrel Height
0.170 in
Head Diameter
0.750 in
Body Size
0.630 in
Head Height
0.460 in
SP8C--SK4-V--21
Barrel Height
0.170 in
Head Diameter
1.000 in
Body Size
0.810 in
Head Height
0.580 in
SP4C--SK3----21*
Barrel Height
0.170 in
Head Diameter
0.750 in
Body Size
0.440 in
Head Height
0.460 in
Per page:
1–5 of 7
