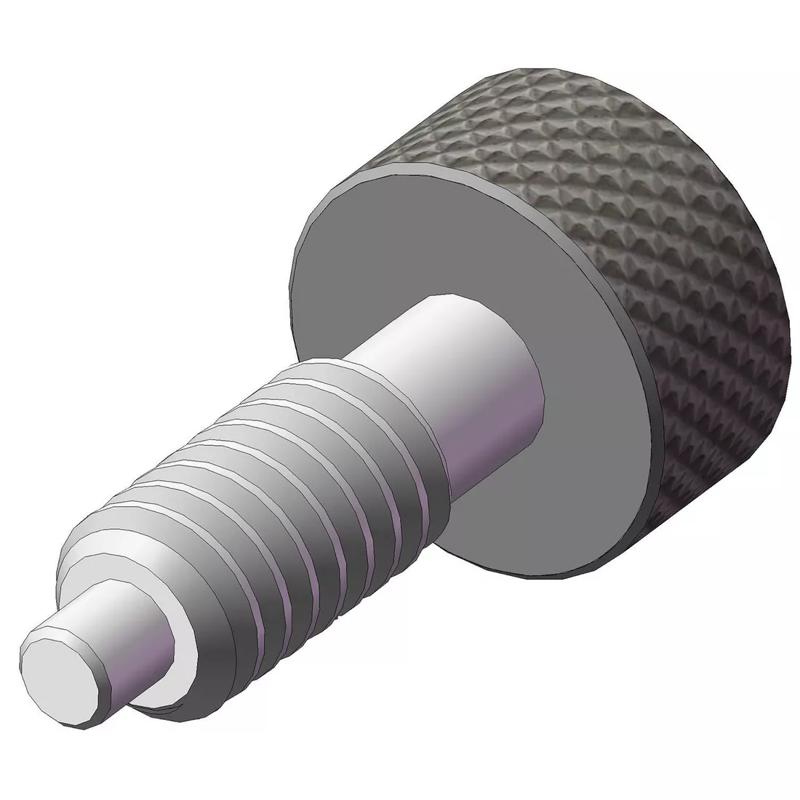

SRSP - Metal Knurled Knob Retractable Plunger Pins
Showing 1-6 of 6
Per page:1-6 of 6
Item Code | Head Diameter | Head Height | Thread Length | Initial End Force | Type | Final End Force | Locking Function | Threadlocker | Thread Size | Material | Pin Coating | Nose Diameter | Nose Length | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SP4C--SM--LL-70 | 0.500 in | 0.019 in | 0.500 in | 1.000 in | Knurled | 4.000 in | Lock-Out | Yes | 1/4-20 | Stainless Steel | Plain | 0.123 in | 0.125 in | |
SP4C--SM---L-70 | 0.500 in | 0.019 in | 0.500 in | 1.000 in | Knurled | 4.000 in | Non Lock-Out | No | 1/4-20 | Stainless Steel | Plain | 0.123 in | 0.125 in | |
SP6C--SM--LL-21 | 0.750 in | 0.310 in | 0.750 in | 1.000 in | Knurled | 8.000 in | Lock-Out | Yes | 3/8-16 | Steel | Clear Zinc Plated | 0.185 in | 0.218 in | |
SP5C--SM--LL-21 | 0.630 in | 0.250 in | 0.625 in | 1.000 in | Knurled | 6.000 in | Lock-Out | Yes | 5/16-18 | Steel | Clear Zinc Plated | 0.154 in | 0.188 in | |
SP8C--SM--LL-70 | 1.000 in | 0.380 in | 0.875 in | 1.000 in | Knurled | 10.000 in | Lock-Out | Yes | 1/2-13 | Stainless Steel | Plain | 0.248 in | 0.250 in | |
SP4C--SM--LL-21 | 0.500 in | 0.019 in | 0.500 in | 1.000 in | Knurled | 4.000 in | Lock-Out | Yes | 1/4-20 | Steel | Clear Zinc Plated | 0.123 in | 0.125 in |
Per page:
1-6 of 6
1–5 of 6 variants
Per page:
SP4C--SM--LL-70
Head Diameter
0.500 in
Head Height
0.019 in
Thread Length
0.500 in
Initial End Force
1.000 in
SP4C--SM---L-70
Head Diameter
0.500 in
Head Height
0.019 in
Thread Length
0.500 in
Initial End Force
1.000 in
SP6C--SM--LL-21
Head Diameter
0.750 in
Head Height
0.310 in
Thread Length
0.750 in
Initial End Force
1.000 in
SP5C--SM--LL-21
Head Diameter
0.630 in
Head Height
0.250 in
Thread Length
0.625 in
Initial End Force
1.000 in
Per page:
1–5 of 7
