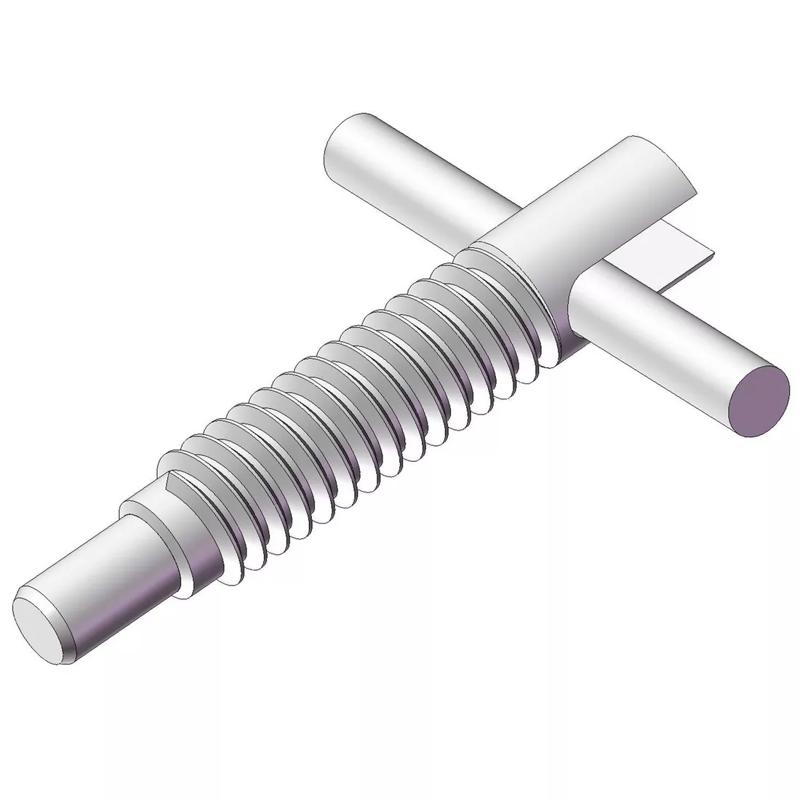

SRSP - Lock-Out T-Handle Retractable Plunger Pins
Showing 1-5 of 5
Per page:1-5 of 5
Item Code | Body Size | Thread Length | Final End Force | Locking Function | Threadlocker | Thread Size | Material | Initial End Force | Handle Diameter | Type | Handle Length | Nose Diameter | Nose Length | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SP8C--T---LV-70 | 2.000 in | 1.400 in | 5.000 in | Lock-Out | Yes | 1/2-13 | Stainless Steel | 2.500 in | 0.160 in | T-Handle | 2.000 in | 0.155 in | 0.500 in | |
SP4C--T---LV-70* | 1.140 in | 0.800 in | 2.500 in | Lock-Out | Yes | 1/4-20 | Stainless Steel | 1.000 in | 0.130 in | T-Handle | 1.130 in | 0.155 in | 0.250 in | |
SP6C--T---L--70 | 1.680 in | 1.200 in | 4.000 in | Lock-Out | No | 3/8-16 | Stainless Steel | 2.000 in | 0.130 in | T-Handle | 1.500 in | 0.155 in | 0.375 in | |
SP4C--T---L--70* | 1.140 in | 0.800 in | 2.500 in | Lock-Out | No | 1/4-20 | Stainless Steel | 1.000 in | 0.130 in | T-Handle | 1.130 in | 0.155 in | 0.250 in | |
SP8C--T---L--70 | 2.000 in | 1.400 in | 5.000 in | Lock-Out | No | 1/2-13 | Stainless Steel | 2.500 in | 0.160 in | T-Handle | 2.000 in | 0.155 in | 0.500 in |
Per page:
1-5 of 5
1–5 of 5 variants
Per page:
SP8C--T---LV-70
Body Size
2.000 in
Thread Length
1.400 in
Final End Force
5.000 in
Locking Function
Lock-Out
SP4C--T---LV-70*
Body Size
1.140 in
Thread Length
0.800 in
Final End Force
2.500 in
Locking Function
Lock-Out
SP6C--T---L--70
Body Size
1.680 in
Thread Length
1.200 in
Final End Force
4.000 in
Locking Function
Lock-Out
SP4C--T---L--70*
Body Size
1.140 in
Thread Length
0.800 in
Final End Force
2.500 in
Locking Function
Lock-Out
Per page:
1–5 of 6
