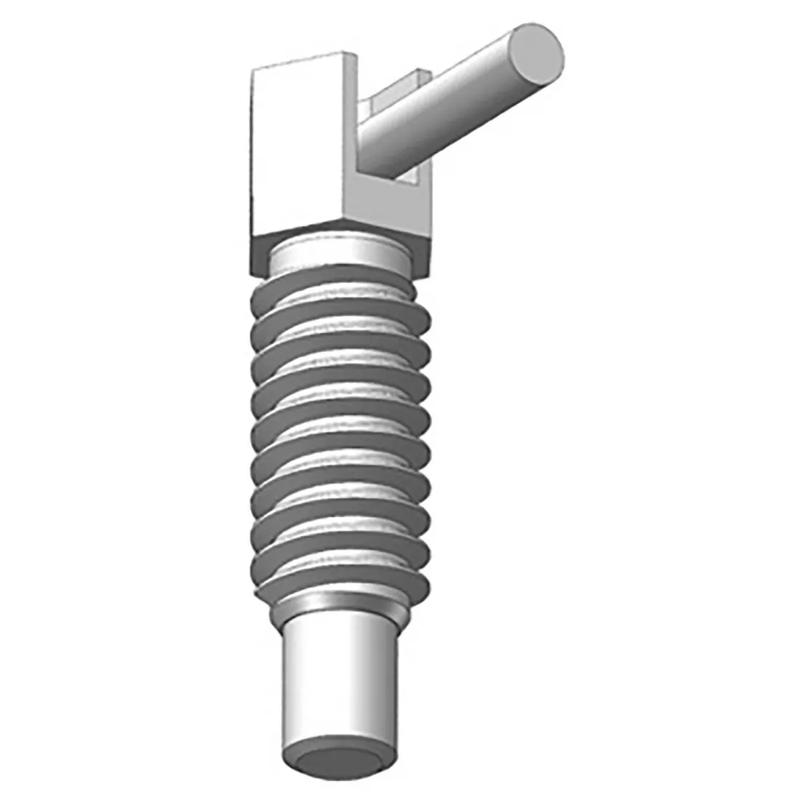

SRSP - Lock-Out Short Lever Style Plunger Pins
Showing 1-6 of 6
Per page:1-6 of 6
Item Code | Width Across Flats | Shank Length (Seed) | Body Size | Thread Length | Initial End Force | Lever Length | Final End Force | Shank Diameter | Locking Function | Threadlocker | Thread Size | Material | Lever Diameter | Type | Head Width | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SP4C--SL--LV-70 | 0.250 in | 0.200 in | 0.750 in | 0.500 | 0.120 in | 0.400 in | 0.500 in | 0.160 in | Lock-Out | Yes | 1/4-20 | Stainless Steel | 0.090 in | Lever Short | - | |
SP6C--SL--LV-70 | 0.380 in | 0.300 in | 1.130 in | 0.620 | 0.250 in | 0.750 in | 1.250 in | 0.250 in | Lock-Out | Yes | 3/8-16 | Stainless Steel | 0.140 in | Lever Short | 0.130 in | |
SP8C--SL--LV-70 | 0.500 in | 0.400 in | 1.500 in | 0.850 in | 0.500 in | 0.750 in | 2.000 in | 0.310 in | Lock-Out | Yes | 1/2-13 | Stainless Steel | 0.190 in | Lever Short | 0.150 in | |
SP6C--SL--L--70 | 0.380 in | 0.300 in | 1.130 in | 0.620 | 0.250 in | 0.750 in | 1.250 in | 0.250 in | Lock-Out | No | 3/8-16 | Stainless Steel | 0.140 in | Lever Short | 0.130 in | |
SP8C--SL--L--70 | 0.500 in | 0.400 in | 1.500 in | 0.850 | 0.500 in | 0.750 in | 2.000 in | 0.310 in | Lock-Out | No | 1/2-13 | Stainless Steel | 0.190 in | Lever Short | 0.150 in | |
SP4C--SL--L--70 | 0.250 in | 0.200 in | 0.750 in | 0.500 | 0.120 in | 0.400 in | 0.500 in | 0.160 in | Lock-Out | No | 1/4-20 | Stainless Steel | 0.090 in | Lever Short | - |
Per page:
1-6 of 6
1–5 of 6 variants
Per page:
SP4C--SL--LV-70
Width Across Flats
0.250 in
Shank Length (Seed)
0.200 in
Body Size
0.750 in
Thread Length
0.500
SP6C--SL--LV-70
Width Across Flats
0.380 in
Shank Length (Seed)
0.300 in
Body Size
1.130 in
Thread Length
0.620
SP8C--SL--LV-70
Width Across Flats
0.500 in
Shank Length (Seed)
0.400 in
Body Size
1.500 in
Thread Length
0.850 in
SP6C--SL--L--70
Width Across Flats
0.380 in
Shank Length (Seed)
0.300 in
Body Size
1.130 in
Thread Length
0.620
