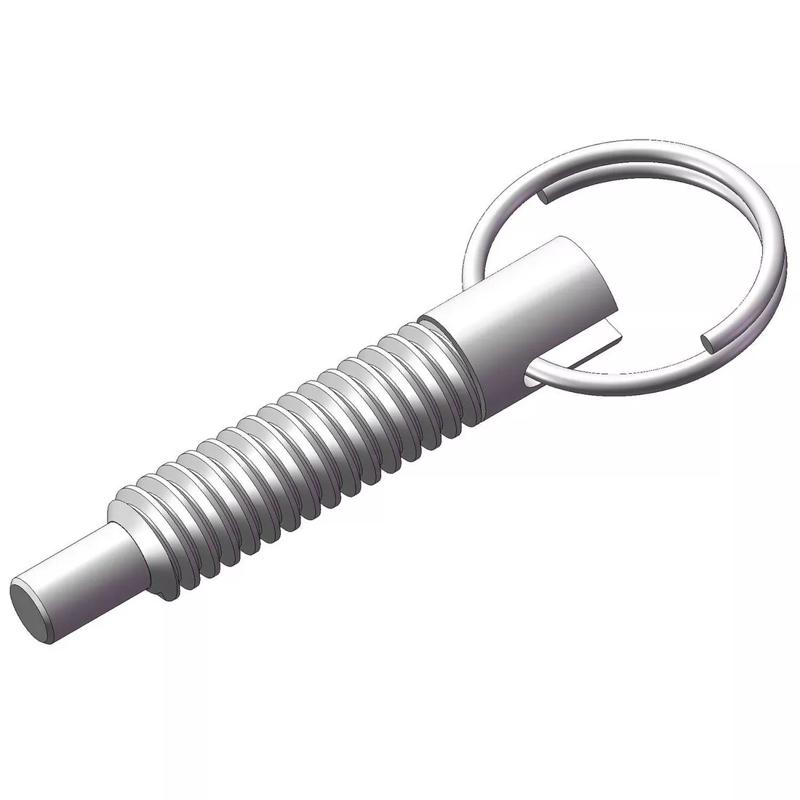

SRSP - Lock-Out Pull Ring Plunger Pins
Showing 1-6 of 6
Per page:1-6 of 6
Item Code | Ring Outside Diameter (Seed) | Body Size | Thread Length | Initial End Force | Type | Final End Force | Locking Function | Threadlocker | Thread Size | Material | Pin Coating | Nose Diameter | Nose Length | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SP8C---R--V--2R | 1.260 in | 2.000 in | 1.400 in | 2.500 in | Ring Pull | 5.000 in | Lock-Out | Yes | 1/2-13 | Steel | Clear Zinc Plated | 0.312 in | 0.500 in | |
SP6C---R--V--21 | 0.980 in | 1.680 in | 1.200 in | 2.000 in | Ring Pull | 4.000 in | Lock-Out | Yes | 3/8-16 | Steel | Clear Zinc Plated | 0.233 in | 0.375 in | |
SP4C---R--V--21 | 0.620 in | 1.140 in | 0.800 in | 1.000 in | Ring Pull | 2.500 in | Lock-Out | Yes | 1/4-20 | Steel | Clear Zinc Plated | 0.155 in | 0.250 in | |
SP4C---R-X---21 | 0.620 in | 1.140 in | 0.800 in | 1.000 in | Ring Pull | 2.500 in | Lock-Out | No | 1/4-20 | Steel | Clear Zinc Plated | 0.155 in | 0.250 in | |
SP8C---R-----2R | 1.260 in | 2.000 in | 1.400 in | 2.500 in | Ring Pull | 5.000 in | Lock-Out | No | 1/2-13 | Steel | Clear Zinc Plated | 0.312 in | 0.500 in | |
SP6C---R-----21 | 0.980 in | 1.680 in | 1.200 in | 2.000 in | Ring Pull | 4.000 in | Lock-Out | No | 3/8-16 | Steel | Clear Zinc Plated | 0.233 in | 0.375 in |
Per page:
1-6 of 6
1–5 of 6 variants
Per page:
SP8C---R--V--2R
Ring Outside Diameter (Seed)
1.260 in
Body Size
2.000 in
Thread Length
1.400 in
Initial End Force
2.500 in
SP6C---R--V--21
Ring Outside Diameter (Seed)
0.980 in
Body Size
1.680 in
Thread Length
1.200 in
Initial End Force
2.000 in
SP4C---R--V--21
Ring Outside Diameter (Seed)
0.620 in
Body Size
1.140 in
Thread Length
0.800 in
Initial End Force
1.000 in
SP4C---R-X---21
Ring Outside Diameter (Seed)
0.620 in
Body Size
1.140 in
Thread Length
0.800 in
Initial End Force
1.000 in
Per page:
1–5 of 7
