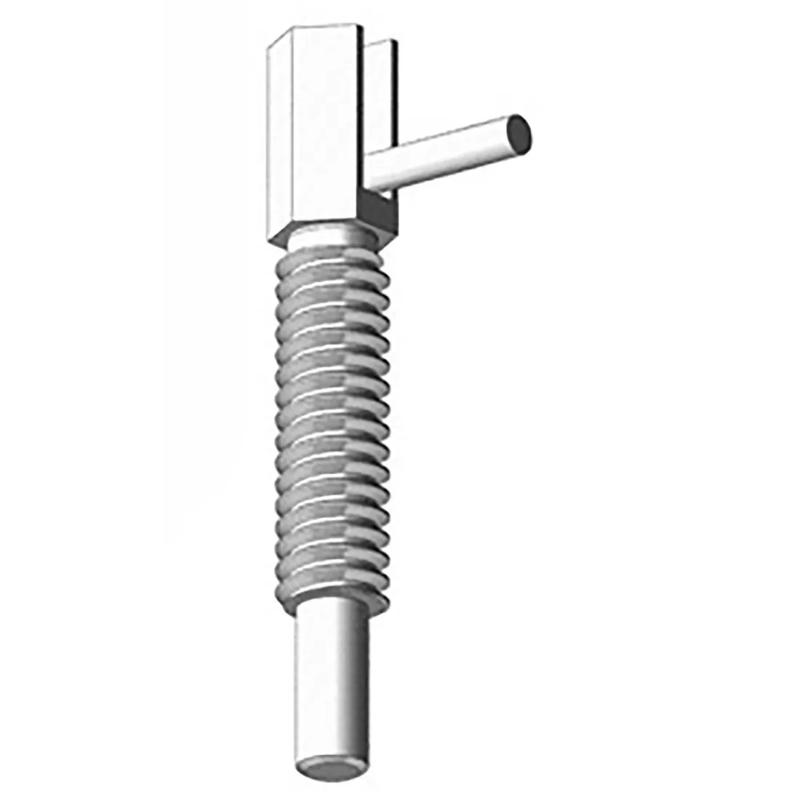

SRSP - Lock-Out Lever Style Plunger Pins
Showing 1-8 of 8
Per page:1-8 of 8
Item Code | Body Size | Thread Length | Initial End Force | Head Width Across Flats | Final End Force | Locking Function | Threadlocker | Thread Size | Material | Lever Diameter | Type | Lever Length | Pin Coating | Nose Diameter | Nose Length | Head Width | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SP4C--L---LV-70 | 1.250 in | 0.800 | 0.500 in | 0.250 in | 2.500 in | Lock-Out | Yes | 1/4-20 | Stainless Steel | 0.090 in | Lever | 0.500 in | Plain | 0.160 in | 0.380 in | - | |
SP6C--L---L--21 | 2.000 in | 1.310 | 0.750 in | 0.380 in | 3.750 in | Lock-Out | No | 3/8-16 | Steel | 0.140 in | Lever | 0.750 in | Clear Zinc Plated | 0.250 in | 0.560 in | 0.130 in | |
SP6C--L---LV-21 | 2.000 in | 1.310 | 0.750 in | 0.380 in | 3.750 in | Lock-Out | Yes | 3/8-16 | Steel | 0.140 in | Lever | 0.750 in | Clear Zinc Plated | 0.250 in | 0.560 in | 0.130 in | |
SP8C--L---LV-70 | 2.110 in | 1.250 | 1.000 in | 0.500 in | 5.000 in | Lock-Out | Yes | 1/2-13 | Stainless Steel | 0.190 in | Lever | 0.930 in | Plain | 0.310 in | 0.750 in | 0.150 in | |
SP6C--L---LV-70 | 2.000 in | 1.310 | 1.000 in | 0.380 in | 3.750 in | Lock-Out | Yes | 3/8-16 | Stainless Steel | 0.140 in | Lever | 0.750 in | Plain | 0.250 in | 0.560 in | 0.130 in | |
SP4C--L---L--70 | 1.250 in | 0.800 | 0.500 in | 0.250 in | 2.500 in | Lock-Out | No | 1/4-20 | Stainless Steel | 0.090 in | Lever | 0.500 in | Plain | 0.160 in | 0.380 in | - | |
SP6C--L---L--70 | 2.000 in | 1.310 | 1.000 in | 0.380 in | 3.750 in | Lock-Out | No | 3/8-16 | Stainless Steel | 0.140 in | Lever | 0.750 in | Plain | 0.250 in | 0.560 in | 0.130 in | |
SP8C--L---L--70 | 2.110 in | 1.250 | 1.000 in | 0.500 in | 5.000 in | Lock-Out | No | 1/2-13 | Stainless Steel | 0.190 in | Lever | 0.930 in | Plain | 0.310 in | 0.750 in | 0.150 in |
Per page:
1-8 of 8
1–5 of 8 variants
Per page:
SP4C--L---LV-70
Body Size
1.250 in
Thread Length
0.800
Initial End Force
0.500 in
Head Width Across Flats
0.250 in
SP6C--L---L--21
Body Size
2.000 in
Thread Length
1.310
Initial End Force
0.750 in
Final End Force
3.750 in
SP6C--L---LV-21
Body Size
2.000 in
Thread Length
1.310
Initial End Force
0.750 in
Final End Force
3.750 in
SP8C--L---LV-70
Body Size
2.110 in
Thread Length
1.250
Initial End Force
1.000 in
Final End Force
5.000 in
Per page:
1–5 of 9
