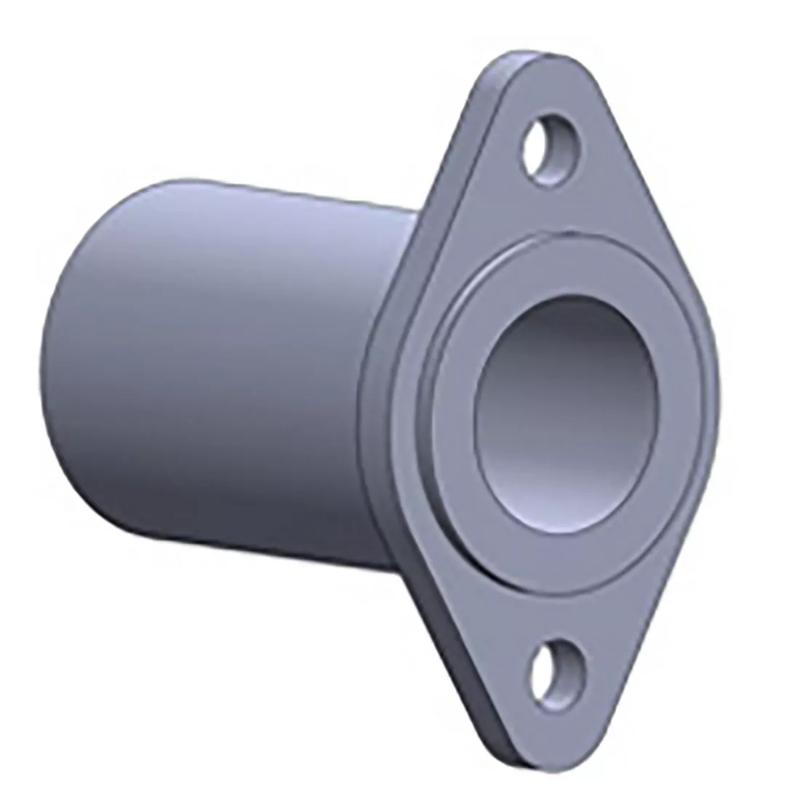

SRPR - Pin Receptacles
Item Code | Flange to Receptacle Height | Body Diameter | Flange Material | Nominal Pin Diameter (Seed) | Pin Material | Flange Thickness | Mounting Hole Center Distance | Flange Length | Flange Width | Shape | Type | Overall Length | Inside Diameter | Mounting Hole Thread Size | Usable Length | Flange Diameter | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PR4X----OVL--70 | 0.060 in | 0.375 in | Stainless Steel | 1/4 in | Stainless Steel | 0.060 in | 1.000 in | 1.250 in | 0.625 in | Oval | Receptacle | 0.688 in | 0.250 in | #6-32 | 0.375 in | - | |
PR5X----DMD--70 | 0.060 in | 0.500 in | Stainless Steel | 5/16 in | Stainless Steel | 0.060 in | 1.000 in | 1.250 in | 0.625 in | Diamond | Receptacle | 0.750 in | 0.313 in | #6-32 | 0.500 in | - | |
PR8X----DMD--70 | 0.060 in | 0.750 in | Stainless Steel | 1/2 in | Stainless Steel | 0.060 in | 1.125 in | 1.500 in | 0.875 in | Diamond | Receptacle | 1.188 in | 0.500 in | #10-32 | 0.750 in | - | |
PR4X----DMD--70 | 0.060 in | 0.375 in | Stainless Steel | 1/4 in | Stainless Steel | 0.060 in | 1.000 in | 1.250 in | 0.625 in | Diamond | Receptacle | 0.688 in | 0.250 in | #6-32 | 0.375 in | - | |
PR4X----RND--70 | 0.060 in | 0.375 in | Stainless Steel | 1/4 in | Stainless Steel | 0.060 in | 1.250 in | - | - | Circle | Receptacle | 0.688 in | 0.250 in | #6-32 | 0.375 in | 1.000 in | |
PR8X----OVL--70 | 0.060 in | 0.750 in | Stainless Steel | 1/2 in | Stainless Steel | 0.060 in | 1.125 in | 1.500 in | 0.875 in | Oval | Receptacle | 1.188 in | 0.500 in | #10-32 | 0.750 in | - | |
PR5X----OVL--70 | 0.060 in | 0.500 in | Stainless Steel | 5/16 in | Stainless Steel | 0.060 in | 1.000 in | 1.250 in | 0.625 in | Oval | Receptacle | 0.750 in | 0.313 in | #6-32 | 0.500 in | - | |
PR6X----RND--70 | 0.060 in | 0.563 in | Stainless Steel | 3/8 in | Stainless Steel | 0.060 in | 1.250 in | - | - | Circle | Receptacle | 0.875 in | 0.375 in | #6-32 | 0.563 in | 1.000 in | |
PR6X----OVL--70 | 0.060 in | 0.563 in | Stainless Steel | 3/8 in | Stainless Steel | 0.060 in | 1.000 in | 1.250 in | 0.625 in | Oval | Receptacle | 0.875 in | 0.375 in | #6-32 | 0.563 in | - |
PR4X----OVL--70
Flange to Receptacle Height
0.060 in
Body Diameter
0.375 in
Flange Material
Stainless Steel
Nominal Pin Diameter (Seed)
1/4 in
PR5X----DMD--70
Flange to Receptacle Height
0.060 in
Body Diameter
0.500 in
Flange Material
Stainless Steel
Nominal Pin Diameter (Seed)
5/16 in
PR8X----DMD--70
Flange to Receptacle Height
0.060 in
Body Diameter
0.750 in
Flange Material
Stainless Steel
Nominal Pin Diameter (Seed)
1/2 in
PR4X----DMD--70
Flange to Receptacle Height
0.060 in
Body Diameter
0.375 in
Flange Material
Stainless Steel
Nominal Pin Diameter (Seed)
1/4 in
