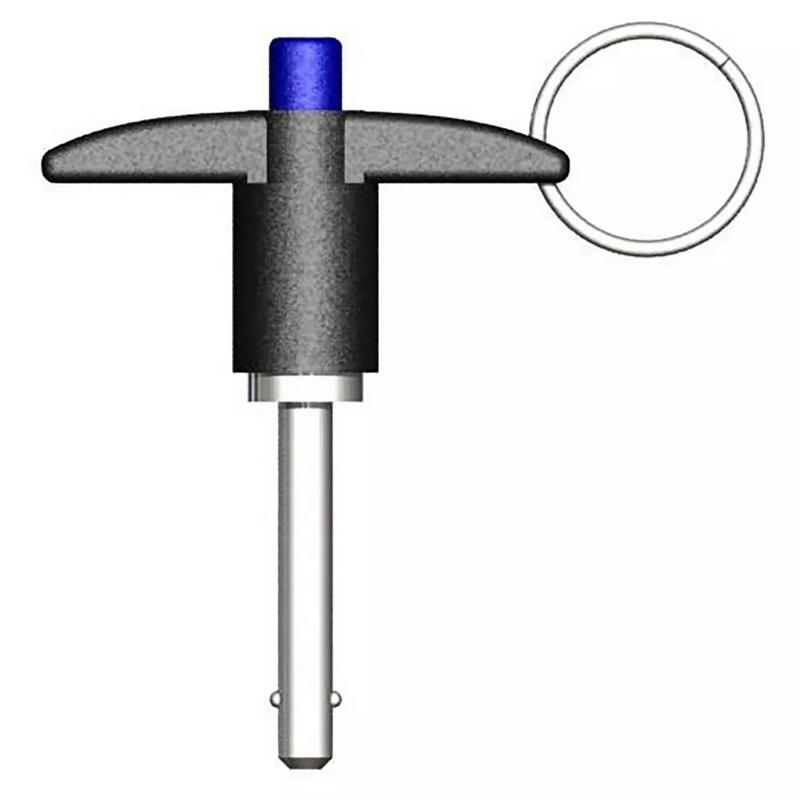

SRPL - T-Handle Pins
Item Code | Button Color | Push-Button Material | Minimum Pin Diameter (Seed) | Button Diameter (Seed) | Pin Length | Handle Projection | Handle Body Diameter | Usable Length | Nominal Pin Diameter (Seed) | Pin Material | Ball Detent Height | End Length | Maximum Pin Diameter (Seed) | Handle Color | Handle Material | Grip Length | Type | Handle Length | Handle Height | Pin Coating | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PL3X0500T----01 | Black | Aluminum | 0.187 in | 0.250 in | 0.760 in | 1.250 in | 0.500 in | 12.7 mm | 3/16 in | Steel | 0.220 in | 0.260 in | 0.189 in | Black | Cast Aluminum | 0.500 in | T-Handle | 1.813 in | 0.750 in | Zinc-Plated | |
PL4X0500T----X0 | Black | Aluminum | 0.247 in | 0.250 in | 0.790 in | 1.250 in | 0.500 in | 12.7 mm | 1/4 in | Stainless Steel | 0.289 in | 0.290 in | 0.249 in | Black | Cast Aluminum | 0.500 in | T-Handle | 1.813 in | 0.750 in | Plain | |
PL3X1000T----01 | Black | Aluminum | 0.187 in | 0.250 in | 1.260 in | 1.250 in | 0.500 in | 25.4 mm | 3/16 in | Steel | 0.220 in | 0.260 in | 0.189 in | Black | Cast Aluminum | 1.000 in | T-Handle | 1.813 in | 0.750 in | Zinc-Plated | |
PL3X1500T----01 | Black | Aluminum | 0.187 in | 0.250 in | 1.760 in | 1.250 in | 0.500 in | 38.1 mm | 3/16 in | Steel | 0.220 in | 0.260 in | 0.189 in | Black | Cast Aluminum | 1.500 in | T-Handle | 1.813 in | 0.750 in | Zinc-Plated | |
PL3X1500T----X0 | Black | Aluminum | 0.187 in | 0.250 in | 1.760 in | 1.250 in | 0.500 in | 38.1 mm | 3/16 in | Stainless Steel | 0.220 in | 0.260 in | 0.189 in | Black | Cast Aluminum | 1.500 in | T-Handle | 1.813 in | 0.750 in | Plain | |
PL3X0500T----X0 | Black | Aluminum | 0.187 in | 0.250 in | 0.760 in | 1.250 in | 0.500 in | 12.7 mm | 3/16 in | Stainless Steel | 0.220 in | 0.260 in | 0.189 in | Black | Cast Aluminum | 0.500 in | T-Handle | 1.813 in | 0.750 in | Plain | |
PL3X2000T----X0 | Black | Aluminum | 0.187 in | 0.250 in | 2.260 in | 1.250 in | 0.500 in | 50.8 mm | 3/16 in | Stainless Steel | 0.220 in | 0.260 in | 0.189 in | Black | Cast Aluminum | 2.000 in | T-Handle | 1.813 in | 0.750 in | Plain | |
PL4X1000T----X0 | Black | Aluminum | 0.247 in | 0.250 in | 1.290 in | 1.250 in | 0.500 in | 25.4 mm | 1/4 in | Stainless Steel | 0.289 in | 0.290 in | 0.249 in | Black | Cast Aluminum | 1.000 in | T-Handle | 1.813 in | 0.750 in | Plain | |
PL3X1000T----X0 | Black | Aluminum | 0.187 in | 0.250 in | 1.260 in | 1.250 in | 0.500 in | 25.4 mm | 3/16 in | Stainless Steel | 0.220 in | 0.260 in | 0.189 in | Black | Cast Aluminum | 1.000 in | T-Handle | 1.813 in | 0.750 in | Plain |
PL3X0500T----01
Button Color
Black
Push-Button Material
Aluminum
Minimum Pin Diameter (Seed)
0.187 in
Button Diameter (Seed)
0.250 in
PL4X0500T----X0
Button Color
Black
Push-Button Material
Aluminum
Minimum Pin Diameter (Seed)
0.247 in
Button Diameter (Seed)
0.250 in
PL3X1000T----01
Button Color
Black
Push-Button Material
Aluminum
Minimum Pin Diameter (Seed)
0.187 in
Button Diameter (Seed)
0.250 in
PL3X1500T----01
Button Color
Black
Push-Button Material
Aluminum
Minimum Pin Diameter (Seed)
0.187 in
Button Diameter (Seed)
0.250 in
