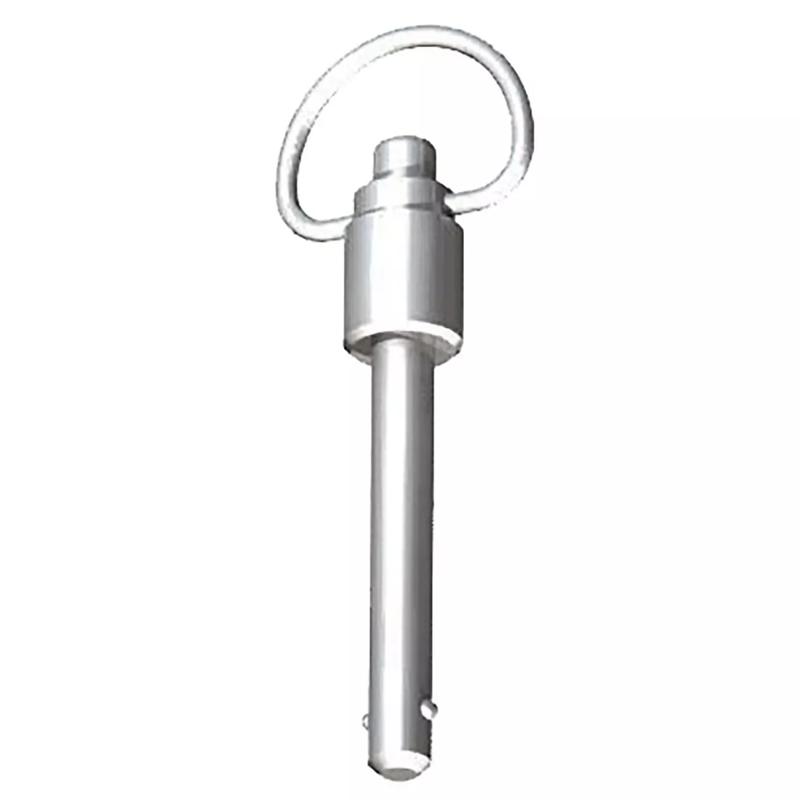

SRPL - Ring Handle Quick Release Pins
Item Code | Spindle Material | Push-Button Material | Minimum Pin Diameter (Seed) | Button Diameter (Seed) | Material | Handle Projection | Grip Length | Handle Body Diameter | Usable Length | Nominal Pin Diameter (Seed) | Pin Material | Ball Detent Height | End Length | Handle Width | Maximum Pin Diameter (Seed) | Handle Height | Ring to Handle Body Distance | Type | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PL3X1000R----X0 | Stainless Steel | Stainless Steel | 0.187 in | 0.250 in | Stainless Steel | 0.813 in | 1.000 in | 0.438 in | 25.4 mm | 3/16 in | Stainless Steel | 0.220 in | 0.260 in | 1.125 in | 0.189 in | 0.453 in | 1.344 in | Ring | |
PL3X0500R----X0 | Stainless Steel | Stainless Steel | 0.187 in | 0.250 in | Stainless Steel | 0.813 in | 0.500 in | 0.438 in | 12.7 mm | 3/16 in | Stainless Steel | 0.220 in | 0.260 in | 1.125 in | 0.189 in | 0.453 in | 1.344 in | Ring | |
PL3X2000R----X0 | Stainless Steel | Stainless Steel | 0.187 in | 0.250 in | Stainless Steel | 0.813 in | 2.000 in | 0.438 in | 50.8 mm | 3/16 in | Stainless Steel | 0.220 in | 0.260 in | 1.125 in | 0.189 in | 0.453 in | 1.344 in | Ring | |
PL4X0500R----X0 | Stainless Steel | Stainless Steel | 0.247 in | 0.250 in | Stainless Steel | 0.813 in | 0.500 in | 0.438 in | 12.7 mm | 1/4 in | Stainless Steel | 0.289 in | 0.290 in | 1.125 in | 0.249 in | 0.453 in | 1.344 in | Ring | |
PL5X1000R----X0 | Stainless Steel | Stainless Steel | 0.310 in | 0.250 in | Stainless Steel | 0.844 in | 1.000 in | 0.438 in | 1.000 in | 5/16 in | Stainless Steel | 0.375 in | 0.330 in | 1.125 in | 0.311 in | 0.453 in | 1.344 in | Ring | |
PL5X1500R----X0 | Stainless Steel | Stainless Steel | 0.310 in | 0.250 in | Stainless Steel | 0.844 in | 1.500 in | 0.438 in | 38.1 mm | 5/16 in | Stainless Steel | 0.375 in | 0.330 in | 1.125 in | 0.311 in | 0.453 in | 1.344 in | Ring | |
PL4X2000R----X0 | Stainless Steel | Stainless Steel | 0.247 in | 0.250 in | Stainless Steel | 0.813 in | 2.000 in | 0.438 in | 50.8 mm | 1/4 in | Stainless Steel | 0.289 in | 0.290 in | 1.125 in | 0.249 in | 0.453 in | 1.344 in | Ring | |
PL5X2500R----X0 | Stainless Steel | Stainless Steel | 0.310 in | 0.250 in | Stainless Steel | 0.844 in | 2.500 in | 0.438 in | 63.5 mm | 5/16 in | Stainless Steel | 0.375 in | 0.330 in | 1.125 in | 0.311 in | 0.453 in | 1.344 in | Ring | |
PL4X1000R----X0 | Stainless Steel | Stainless Steel | 0.247 in | 0.250 in | Stainless Steel | 0.813 in | 1.000 in | 0.438 in | 25.4 mm | 1/4 in | Stainless Steel | 0.289 in | 0.290 in | 1.125 in | 0.249 in | 0.453 in | 1.344 in | Ring |
PL3X1000R----X0
Spindle Material
Stainless Steel
Push-Button Material
Stainless Steel
Minimum Pin Diameter (Seed)
0.187 in
Button Diameter (Seed)
0.250 in
PL3X0500R----X0
Spindle Material
Stainless Steel
Push-Button Material
Stainless Steel
Minimum Pin Diameter (Seed)
0.187 in
Button Diameter (Seed)
0.250 in
PL3X2000R----X0
Spindle Material
Stainless Steel
Push-Button Material
Stainless Steel
Minimum Pin Diameter (Seed)
0.187 in
Button Diameter (Seed)
0.250 in
PL4X0500R----X0
Spindle Material
Stainless Steel
Push-Button Material
Stainless Steel
Minimum Pin Diameter (Seed)
0.247 in
Button Diameter (Seed)
0.250 in
