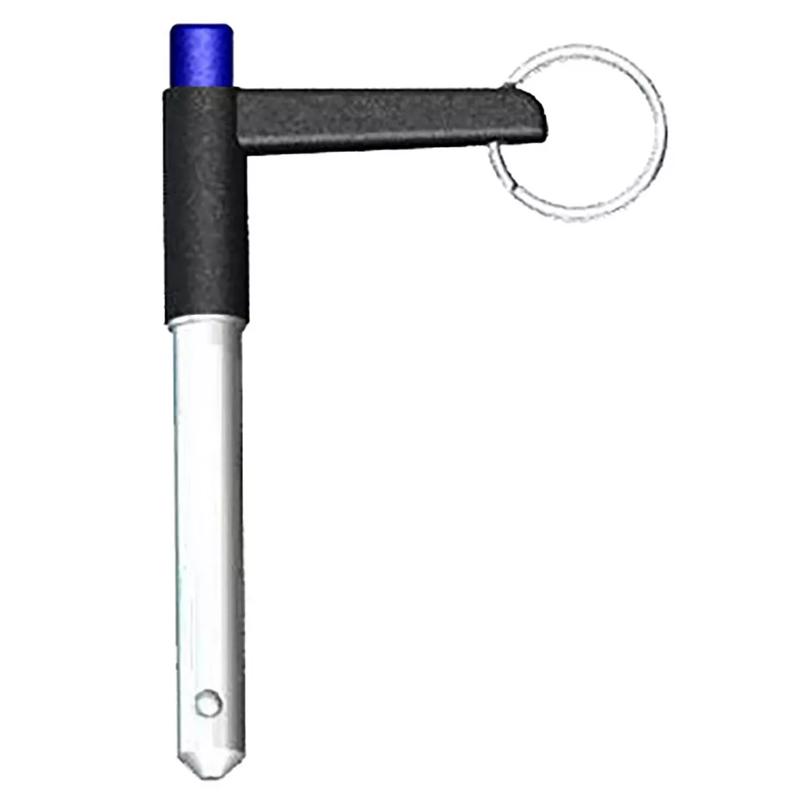

SRPL - L-Handle Quick Release Pins
Item Code | Button Color | Push-Button Material | Minimum Pin Diameter (Seed) | Button Diameter (Seed) | Pin Length | Handle Projection | Handle Body Diameter | Usable Length | Nominal Pin Diameter (Seed) | Pin Material | Ball Detent Height | End Length | Maximum Pin Diameter (Seed) | Handle Color | Handle Height | Handle Material | Grip Length | Type | Handle Length | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PL3X0500L----X0 | Black | Aluminum | 0.187 in | 0.250 in | 0.760 in | 1.250 in | 0.500 in | 12.7 mm | 3/16 in | Stainless Steel | 0.220 in | 0.260 in | 0.189 in | Black | 0.750 in | Cast Aluminum | 0.500 in | L-Handle | 1.750 in | |
PL5X1500L----X0 | Black | Aluminum | 0.310 in | 0.250 in | 1.830 in | 1.250 in | 0.500 in | 1.500 in | 5/16 in | Stainless Steel | 0.375 in | 0.330 in | 0.311 in | Black | 0.750 in | Cast Aluminum | 1.500 in | L-Handle | 1.750 in | |
PL6X2000L----X0 | Black | Aluminum | 0.372 in | 0.313 in | 2.365 in | 1.438 in | 0.594 in | 50.8 mm | 3/8 in | Stainless Steel | 0.440 in | 0.365 in | 0.374 in | Black | 0.938 in | Cast Aluminum | 2.000 in | L-Handle | 2.000 in | |
PL4X0500L----X0 | Black | Aluminum | 0.247 in | 0.250 in | 0.790 in | 1.250 in | 0.500 in | 12.7 mm | 1/4 in | Stainless Steel | 0.289 in | 0.290 in | 0.249 in | Black | 0.750 in | Cast Aluminum | 0.500 in | L-Handle | 1.750 in | |
PL4X1000L----X0 | Black | Aluminum | 0.247 in | 0.250 in | 1.290 in | 1.250 in | 0.500 in | 25.4 mm | 1/4 in | Stainless Steel | 0.289 in | 0.290 in | 0.249 in | Black | 0.750 in | Cast Aluminum | 1.000 in | L-Handle | 1.750 in | |
PL4X2000L----X0 | Black | Aluminum | 0.247 in | 0.250 in | 2.290 in | 1.250 in | 0.500 in | 2.000 in | 1/4 in | Stainless Steel | 0.289 in | 0.290 in | 0.249 in | Black | 0.750 in | Cast Aluminum | 2.000 in | L-Handle | 1.750 in | |
PL6X1500L----X0 | Black | Aluminum | 0.372 in | 0.313 in | 1.865 in | 1.438 in | 0.594 in | 38.1 mm | 3/8 in | Stainless Steel | 0.440 in | 0.365 in | 0.374 in | Black | 0.938 in | Cast Aluminum | 1.500 in | L-Handle | 2.000 in | |
PL8X3500L----X0 | Black | Aluminum | 0.497 in | 0.469 in | 3.960 in | 1.625 in | 0.750 in | 88.9 mm | 1/2 in | Stainless Steel | 0.594 in | 0.460 in | 0.499 in | Black | 1.000 in | Cast Aluminum | 3.500 in | L-Handle | 2.250 in | |
PL6X3000L----X0 | Black | Aluminum | 0.372 in | 0.313 in | 3.365 in | 1.438 in | 0.594 in | 3.000 in | 3/8 in | Stainless Steel | 0.440 in | 0.365 in | 0.374 in | Black | 0.938 in | Cast Aluminum | 3.000 in | L-Handle | 2.000 in |
PL3X0500L----X0
Button Color
Black
Push-Button Material
Aluminum
Minimum Pin Diameter (Seed)
0.187 in
Button Diameter (Seed)
0.250 in
PL5X1500L----X0
Button Color
Black
Push-Button Material
Aluminum
Minimum Pin Diameter (Seed)
0.310 in
Button Diameter (Seed)
0.250 in
PL6X2000L----X0
Button Color
Black
Push-Button Material
Aluminum
Minimum Pin Diameter (Seed)
0.372 in
Button Diameter (Seed)
0.313 in
PL4X0500L----X0
Button Color
Black
Push-Button Material
Aluminum
Minimum Pin Diameter (Seed)
0.247 in
Button Diameter (Seed)
0.250 in
