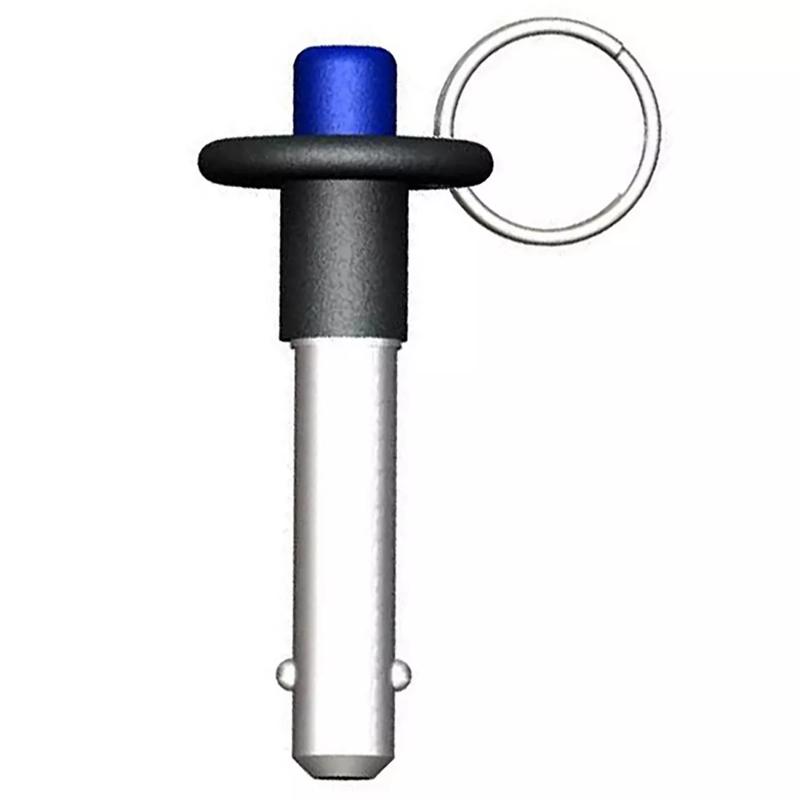

SRPL - Button Handle Quick Release Pins
Item Code | Push-Button Material | Minimum Pin Diameter (Seed) | Button Diameter (Seed) | Pin Length | Handle Projection | Handle Body Diameter | Usable Length | Nominal Pin Diameter (Seed) | Pin Material | Ball Detent Height | End Length | Maximum Pin Diameter (Seed) | Handle Color | Type | Handle Height | Handle Head Diameter | Button Color | Handle Material | Grip Length | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PL3X2000B----X0 | Aluminum | 0.187 in | 0.250 in | 2.260 in | 0.813 in | 0.438 in | 50.8 mm | 3/16 in | Stainless Steel | 0.220 in | 0.260 in | 0.189 in | Black | Button | 0.625 in | 0.813 in | Blue | Cast Aluminum | 2.000 in | |
PL3X0500B----X0 | Aluminum | 0.187 in | 0.250 in | 0.760 in | 0.813 in | 0.438 in | 12.7 mm | 3/16 in | Stainless Steel | 0.220 in | 0.260 in | 0.189 in | Black | Button | 0.625 in | 0.813 in | Blue | Cast Aluminum | 0.500 in | |
PL3X1000B----X0 | Aluminum | 0.187 in | 0.250 in | 1.260 in | 0.813 in | 0.438 in | 1.000 in | 3/16 in | Stainless Steel | 0.220 in | 0.260 in | 0.189 in | Black | Button | 0.625 in | 0.813 in | Blue | Cast Aluminum | 1.000 in | |
PL4X1500B----X0 | Aluminum | 0.247 in | 0.250 in | 1.790 in | 0.875 in | 0.438 in | 1.500 in | 1/4 in | Stainless Steel | 0.289 in | 0.290 in | 0.249 in | Black | Button | 0.625 in | 0.813 in | Blue | Cast Aluminum | 1.500 in | |
PL6X2000B----X0 | Aluminum | 0.372 in | 0.313 in | 2.365 in | 1.031 in | 0.563 in | 50.8 mm | 3/8 in | Stainless Steel | 0.440 in | 0.365 in | 0.374 in | Black | Button | 0.750 in | 1.125 in | Blue | Cast Aluminum | 2.000 in | |
PL3X1500B----X0 | Aluminum | 0.187 in | 0.250 in | 1.760 in | 0.813 in | 0.438 in | 38.1 mm | 3/16 in | Stainless Steel | 0.220 in | 0.260 in | 0.189 in | Black | Button | 0.625 in | 0.813 in | Blue | Cast Aluminum | 1.500 in | |
PL4X2000B----X0 | Aluminum | 0.247 in | 0.250 in | 2.290 in | 0.875 in | 0.438 in | 50.8 mm | 1/4 in | Stainless Steel | 0.289 in | 0.290 in | 0.249 in | Black | Button | 0.625 in | 0.813 in | Blue | Cast Aluminum | 2.000 in | |
PL6X1500B----X0 | Aluminum | 0.372 in | 0.313 in | 1.865 in | 1.031 in | 0.563 in | 38.1 mm | 3/8 in | Stainless Steel | 0.440 in | 0.365 in | 0.374 in | Black | Button | 0.750 in | 1.125 in | Blue | Cast Aluminum | 1.500 in | |
PL6X2500B----X0 | Aluminum | 0.372 in | 0.313 in | 2.865 in | 1.031 in | 0.563 in | 63.5 mm | 3/8 in | Stainless Steel | 0.440 in | 0.365 in | 0.374 in | Black | Button | 0.750 in | 1.125 in | Blue | Cast Aluminum | 2.500 in |
PL3X2000B----X0
Push-Button Material
Aluminum
Minimum Pin Diameter (Seed)
0.187 in
Button Diameter (Seed)
0.250 in
Pin Length
2.260 in
PL3X0500B----X0
Push-Button Material
Aluminum
Minimum Pin Diameter (Seed)
0.187 in
Button Diameter (Seed)
0.250 in
Pin Length
0.760 in
PL3X1000B----X0
Push-Button Material
Aluminum
Minimum Pin Diameter (Seed)
0.187 in
Button Diameter (Seed)
0.250 in
Pin Length
1.260 in
PL4X1500B----X0
Push-Button Material
Aluminum
Minimum Pin Diameter (Seed)
0.247 in
Button Diameter (Seed)
0.250 in
Pin Length
1.790 in
