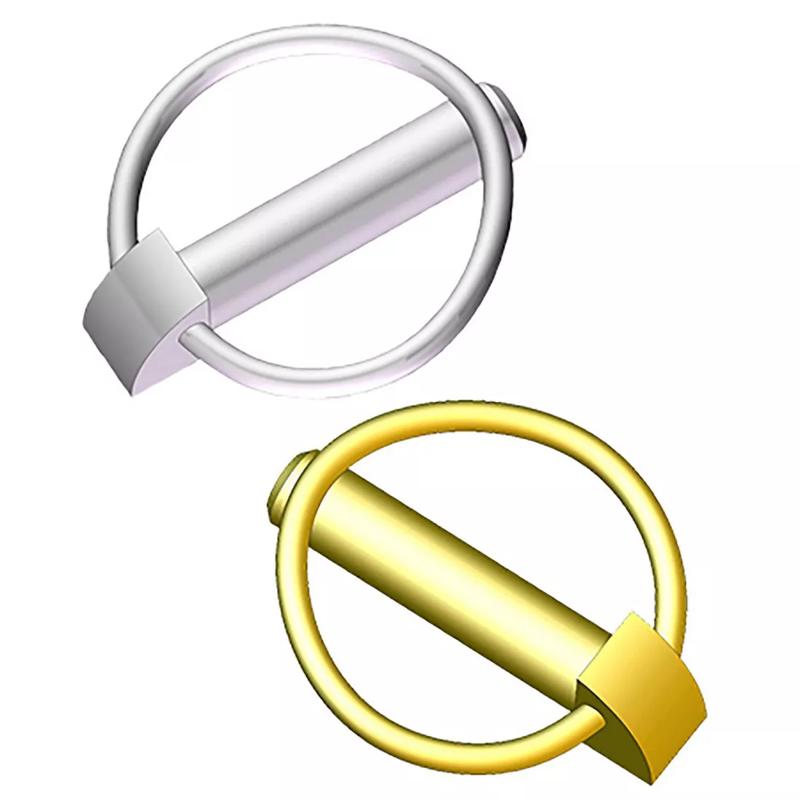

SRLP - Lynch Pins
Showing 1-5 of 5
Per page:1-5 of 5
Item Code | Pin Diameter | Overall Length | Usable Length | Pin Material | Coating | Ring Diameter | Pin and Ball Height | Grade | Request Quote |
|---|---|---|---|---|---|---|---|---|---|
LP3/16X1-1/8-Y2R | 0.187 in | 1.750 in | 1.125 in | Low-Carbon Steel | Zinc Plated;Yellow CR+3 Trivalent Zinc | 0.125 in | 1.422 in | Grade 2 | |
LP1/4X1-7/16-Y2R | 0.250 in | 2.125 in | 1.438 in | Low-Carbon Steel | Zinc Plated;Yellow CR+3 Trivalent Zinc | 0.109 in | 1.750 in | Grade 2 | |
LP7/16X1-15/32Y2R | 0.437 in | 2.219 in | 1.469 in | Low-Carbon Steel | Zinc Plated;Yellow CR+3 Trivalent Zinc | 0.156 in | 1.750 in | Grade 2 | |
LP5/16X1-1/2-Y2R | 0.312 in | 2.156 in | 1.500 in | Low-Carbon Steel | Zinc Plated;Yellow CR+3 Trivalent Zinc | 0.125 in | 1.781 in | Grade 2 | |
LP7/16X1-19/32Y2R | 0.437 in | 2.500 in | 1.594 in | Low-Carbon Steel | Zinc Plated;Yellow CR+3 Trivalent Zinc | 0.172 in | 2.000 in | Grade 2 |
Per page:
1-5 of 5
1–5 of 5 variants
Per page:
LP3/16X1-1/8-Y2R
Pin Diameter
0.187 in
Overall Length
1.750 in
Usable Length
1.125 in
Pin Material
Low-Carbon Steel
LP1/4X1-7/16-Y2R
Pin Diameter
0.250 in
Overall Length
2.125 in
Usable Length
1.438 in
Pin Material
Low-Carbon Steel
LP7/16X1-15/32Y2R
Pin Diameter
0.437 in
Overall Length
2.219 in
Usable Length
1.469 in
Pin Material
Low-Carbon Steel
LP5/16X1-1/2-Y2R
Pin Diameter
0.312 in
Overall Length
2.156 in
Usable Length
1.500 in
Pin Material
Low-Carbon Steel
Per page:
1–5 of 6
