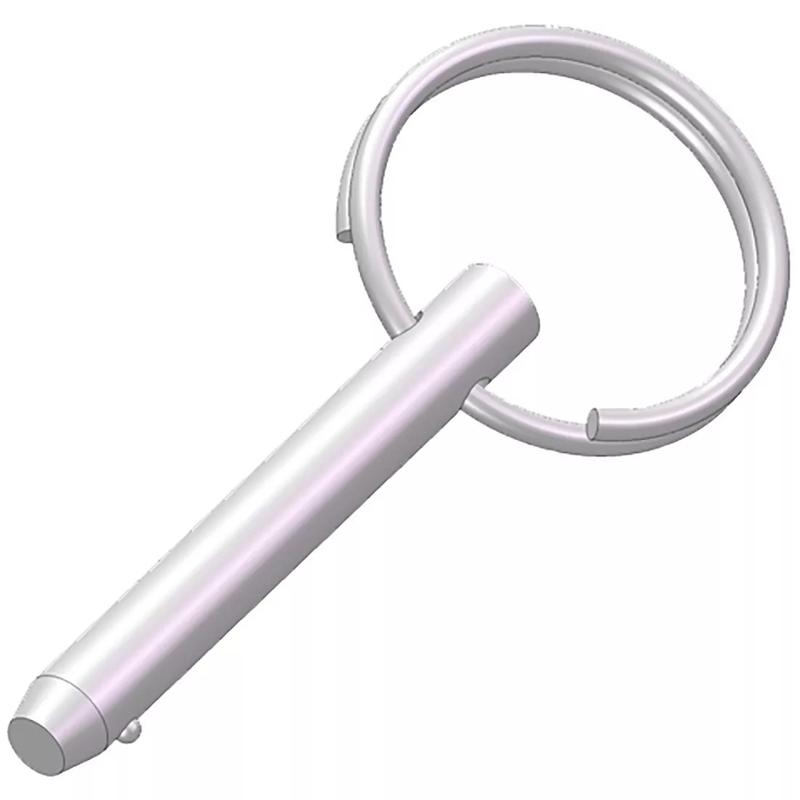

SRRD - Ring Detent Pins
Showing 1-10 of 104
Per page:1-10 of 104
Item Code | Pin Diameter | Ring Outside Diameter (Seed) | Overall Length | Ball Position (Seed) | Usable Length | Pin Material | Coating | Pin and Ball Height | Grade | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|
RD3160500----2R | 0.187 in | 1.000 in | 0.887 in | 0.200 in | 0.500 in | Low-Carbon Steel | Zinc-Plated | 0.204 in | Grade 2 | |
RD3161000----21 | 0.187 in | 1.000 in | 1.387 in | 0.200 in | 1.000 in | Low-Carbon Steel | Zinc-Plated | 0.204 in | Grade 2 | |
RD4X2500-----21 | 0.250 in | 1.000 in | 3.062 in | 0.312 in | 2.500 in | Low-Carbon Steel | Zinc-Plated | 0.286 in | Grade 2 | |
RD4X0500-----21 | 0.250 in | 1.000 in | 1.062 in | 0.312 in | 0.500 in | Low-Carbon Steel | Zinc-Plated | 0.286 in | Grade 2 | |
RD3163000----21 | 0.187 in | 1.000 in | 3.387 in | 0.200 in | 3.000 in | Low-Carbon Steel | Zinc-Plated | 0.204 in | Grade 2 | |
RD5X1250-----21 | 0.312 in | 1.000 in | 1.875 in | 0.375 in | 1.250 in | Low-Carbon Steel | Zinc-Plated | 0.358 in | Grade 2 | |
RD5X1000-----21 | 0.312 in | 1.000 in | 1.625 in | 0.375 in | 1.000 in | Low-Carbon Steel | Zinc-Plated | 0.358 in | Grade 2 | |
RD3162500----21 | 0.187 in | 1.000 in | 2.887 in | 0.200 in | 2.500 in | Low-Carbon Steel | Zinc-Plated | 0.204 in | Grade 2 | |
RD3160750----21 | 0.187 in | 1.000 in | 1.137 in | 0.200 in | 0.750 in | Low-Carbon Steel | Zinc-Plated | 0.204 in | Grade 2 |
Per page:
1-10 of 104
1–5 of 104 variants
Per page:
RD3160500----2R
Pin Diameter
0.187 in
Ring Outside Diameter (Seed)
1.000 in
Overall Length
0.887 in
Ball Position (Seed)
0.200 in
RD3161000----21
Pin Diameter
0.187 in
Ring Outside Diameter (Seed)
1.000 in
Overall Length
1.387 in
Ball Position (Seed)
0.200 in
RD4X2500-----21
Pin Diameter
0.250 in
Ring Outside Diameter (Seed)
1.000 in
Overall Length
3.062 in
Ball Position (Seed)
0.312 in
RD4X0500-----21
Pin Diameter
0.250 in
Ring Outside Diameter (Seed)
1.000 in
Overall Length
1.062 in
Ball Position (Seed)
0.312 in
Per page:
1–5 of 105
