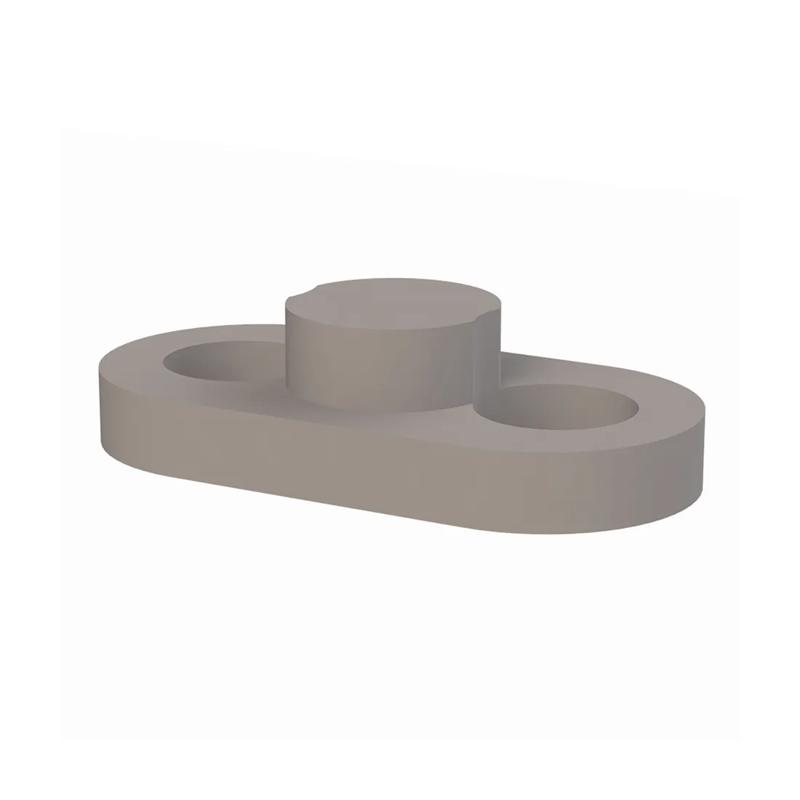

SR22CM - Capacitor Mounts
Showing 1-3 of 3
Per page:1-3 of 3
Item Code | Material Flammability Standard | Color | Mounting Hole Diameter | Base Height | Mounting Hole Center Distance | Maximum Operating Temperature | Length | Minimum Operating Temperature | Material | Width | Center Diameter (Seed) | Height | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
22CM0150 | UL94 V-2 | Natural | 0.045 in | 0.022 in | 0.150 in | 185 °F | 0.270 in | -40 °F | Nylon 6/6 | 0.125 in | 0.090 - 0.125 in | 0.045 in | |
22CM0200 | UL94 V-2 | Natural | 0.045 in | 0.022 in | 0.200 in | 185 °F | 0.290 in | -40 °F | Nylon 6/6 | 0.090 in | 0.090 in | 0.045 in | |
22CM0100 | UL94 V-2 | Natural | 0.045 in | 0.022 in | 0.100 in | 185 °F | 0.180 in | -40 °F | Nylon 6/6 | 0.090 in | 0.050 - 0.070 in | 0.045 in |
Per page:
1-3 of 3
1–4 of 3 variants
Per page:
22CM0150
Material Flammability Standard
UL94 V-2
Color
Natural
Mounting Hole Diameter
0.045 in
Base Height
0.022 in
22CM0200
Material Flammability Standard
UL94 V-2
Color
Natural
Mounting Hole Diameter
0.045 in
Base Height
0.022 in
22CM0100
Material Flammability Standard
UL94 V-2
Color
Natural
Mounting Hole Diameter
0.045 in
Base Height
0.022 in
