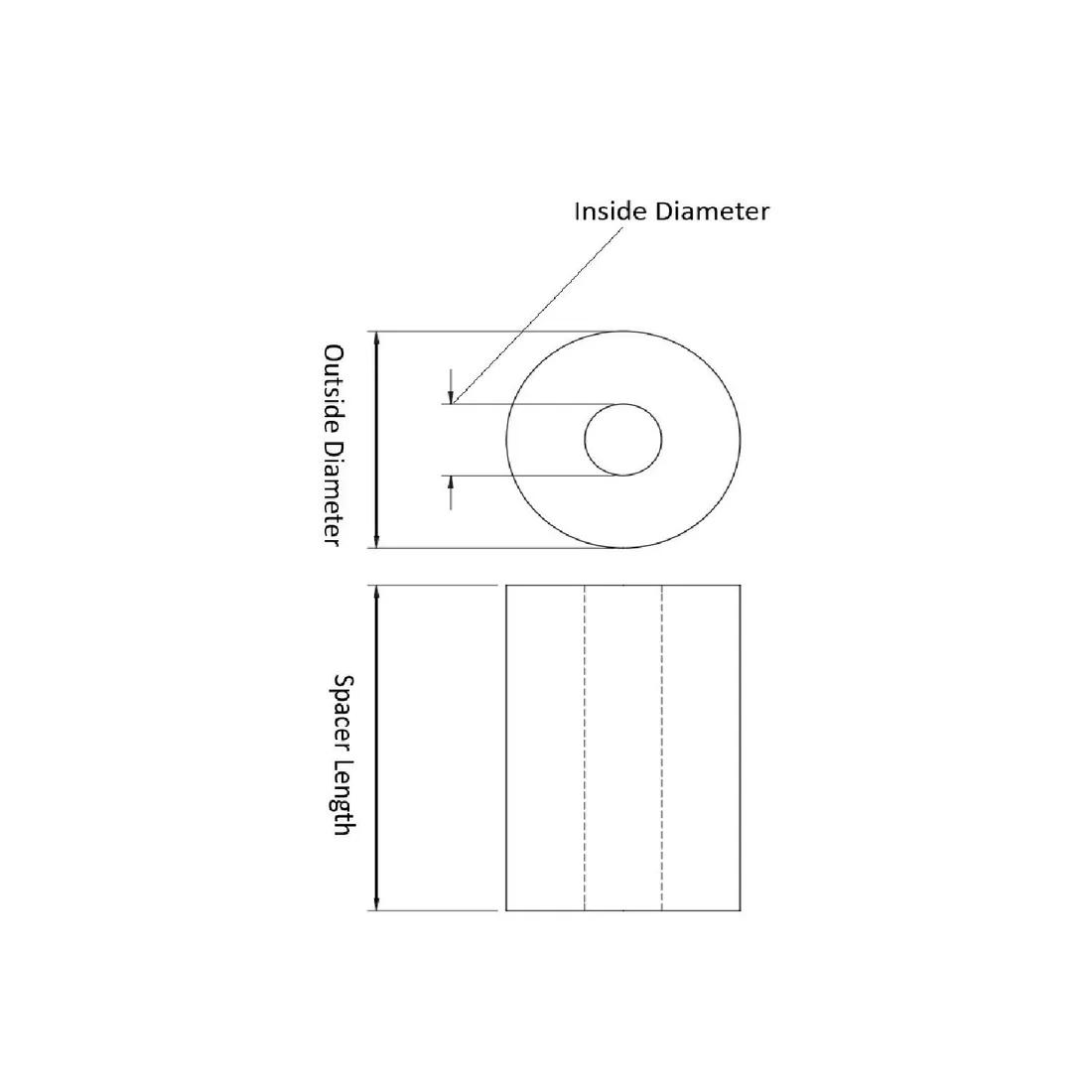

SRSS - Round CPVC Spacer
Showing 1-10 of 49
Per page:1-10 of 49
Item Code | Color | Spacer Length | Inside Diameter | Outside Diameter | Maximum Operating Temperature | Material Flammability Standard | Screw Size | Minimum Operating Temperature | Thread Size | Material | Spacer Shape | Overall Length | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SS3/8-6 | Light Gray | 19.1 | 10.1 | 12.7 | 50 | UL94 V-0 | M9 | 0 | 3/8 | PVC | - | - | |
SS1/4-2 | Light Gray | 6.4 | 6.8 | 12.7 | 50 | UL94 V-0 | M6 | 0 | 1/4 | PVC | - | - | |
SS3/8-4 | Light Gray | 12.7 | 10.1 | 12.7 | 50 | UL94 V-0 | M9 | 0 | 3/8 | PVC | - | - | |
SS1/4-12 | Light Gray | 38.1 | 6.8 | 12.7 | 50 | UL94 V-0 | M6 | 0 | 1/4 | PVC | - | - | |
SS10-2 | Light Gray | 6.4 | 5.1 | 9.5 | 50 | UL94 V-0 | M5 | 0 | #10 | PVC | - | - | |
SS10-4 | Light Gray | 12.7 | 5.1 | 9.5 | 50 | UL94 V-0 | M5 | 0 | #10 | PVC | - | - | |
SS3/8-2 | Light Gray | 6.4 | 10.1 | 12.7 | 50 | UL94 V-0 | M9 | 0 | 3/8 | PVC | - | - | |
SS10-6 | Light Gray | 19.1 | 5.1 | 9.5 | 50 | UL94 V-0 | M5 | 0 | #10 | PVC | - | - | |
SS1/4-8 | Light Gray | 25.4 | 6.8 | 12.7 | 50 | UL94 V-0 | M6 | 0 | 1/4 | PVC | - | - |
Per page:
1-10 of 49
1–5 of 49 variants
Per page:
SS3/8-6
Color
Light Gray
Spacer Length
19.1
Inside Diameter
10.1
Outside Diameter
12.7
SS1/4-2
Color
Light Gray
Spacer Length
6.4
Inside Diameter
6.8
Outside Diameter
12.7
SS3/8-4
Color
Light Gray
Spacer Length
12.7
Inside Diameter
10.1
Outside Diameter
12.7
SS1/4-12
Color
Light Gray
Spacer Length
38.1
Inside Diameter
6.8
Outside Diameter
12.7
Per page:
1–5 of 50
