SRR9XX - Round Nylon Through Spacers
Showing 1-10 of 83
Per page:1-10 of 83

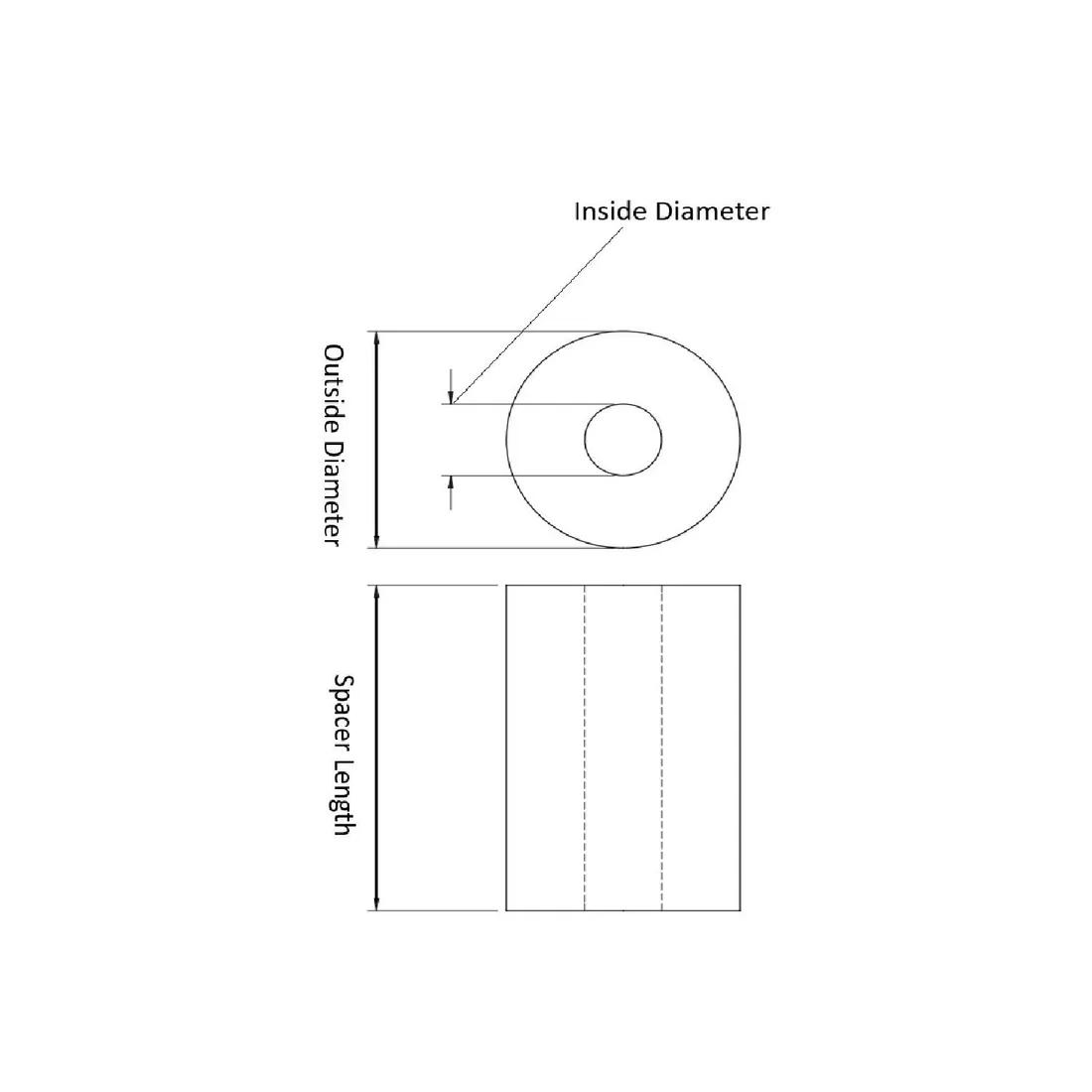

Item Code | Material Flammability Standard | Color | Spacer Length | Outside Diameter | Maximum Operating Temperature | Minimum Operating Temperature | Material | Inside Diameter | UL/CSA Description | Thread Size | Spacer Shape | Overall Length | Screw Size | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
R901-3 | UL94 V-2 | White | 4.8 | 2.2 | 65 | -40 | Nylon 6 | 0.7 | UL E36632 | - | - | - | - | |
R901-1 | UL94 V-2 | White | 1.6 | 2.2 | 65 | -40 | Nylon 6 | 0.7 | UL E36632 | - | - | - | - | |
R901-8 | UL94 V-2 | White | 12.7 | 2.2 | 65 | -40 | Nylon 6 | 0.7 | UL E36632 | - | - | - | - | |
R901-5 | UL94 V-2 | White | 7.9 | 2.2 | 65 | -40 | Nylon 6 | 0.7 | UL E36632 | - | - | - | - | |
R901-2 | UL94 V-2 | White | 3.2 | 2.2 | 65 | -40 | Nylon 6 | 0.7 | UL E36632 | - | - | - | - | |
R901-7 | UL94 V-2 | White | 11.1 | 2.2 | 65 | -40 | Nylon 6 | 0.7 | UL E36632 | - | - | - | - | |
R901-4 | UL94 V-2 | White | 6.4 | 2.2 | 65 | -40 | Nylon 6 | 0.7 | UL E36632 | - | - | - | - | |
R901-6 | UL94 V-2 | White | 9.5 | 2.2 | 65 | -40 | Nylon 6 | 0.7 | UL E36632 | - | - | - | - | |
R902-5 | UL94 V-2 | White | 7.9 | 3.2 | 65 | -40 | Nylon 6 | 0.8 | UL E36632 | - | - | - | - |
Per page:
1-10 of 83
1–5 of 83 variants
Per page:
R901-3
Material Flammability Standard
UL94 V-2
Color
White
Spacer Length
4.8
Outside Diameter
2.2
R901-1
Material Flammability Standard
UL94 V-2
Color
White
Spacer Length
1.6
Outside Diameter
2.2
R901-8
Material Flammability Standard
UL94 V-2
Color
White
Spacer Length
12.7
Outside Diameter
2.2
R901-5
Material Flammability Standard
UL94 V-2
Color
White
Spacer Length
7.9
Outside Diameter
2.2
Per page:
1–5 of 84
