SRNS - NAS5527 Nylon Spacer
Showing 1-10 of 23
Per page:1-10 of 23

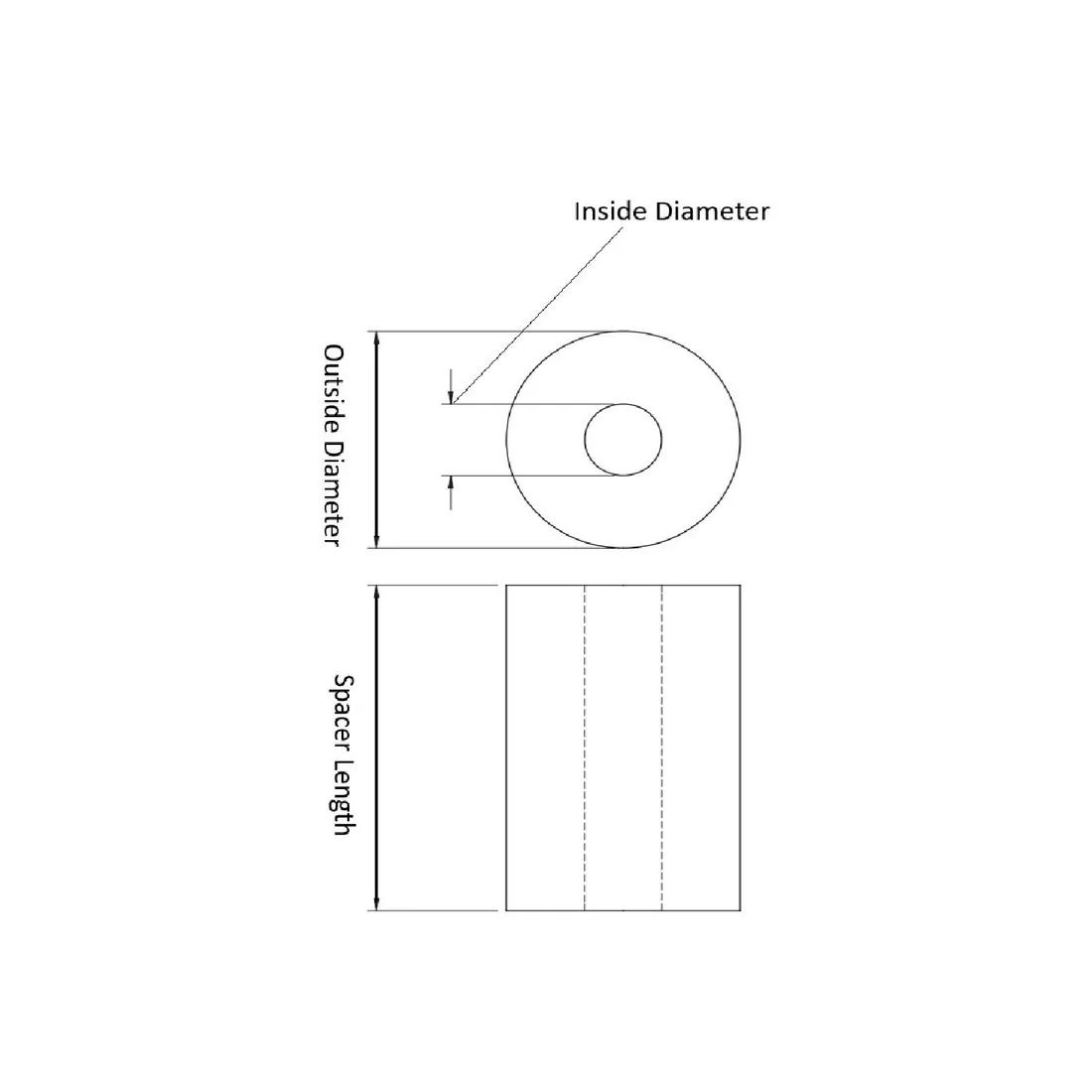

Item Code | Material Flammability Standard | Color | Military Specification | Spacer Length | Outside Diameter | Maximum Operating Temperature | Spacer Shape | Minimum Operating Temperature | Material | Overall Length | Inside Diameter | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
NS-03-02 | UL94 V-2 | Natural | NAS5527-03-02 | 0.598 | 0.472 | 257 | Round | -40 | Nylon 6/6 | 0.598 in | 0.197 | |
NS-03-01 | UL94 V-2 | Natural | NAS5527-03-01 | 0.500 | 0.472 | 257 | Round | -40 | Nylon 6/6 | 0.500 in | 0.197 | |
NS-03-09 | UL94 V-2 | Natural | NAS5527-03-09 | 0.886 | 0.472 | 257 | Round | -40 | Nylon 6/6 | 0.886 in | 0.197 | |
NS-03-03 | UL94 V-2 | Natural | NAS5527-03-03 | 0.250 | 0.472 | 257 | Round | -40 | Nylon 6/6 | 0.250 in | 0.197 | |
NS-03-11 | UL94 V-2 | Natural | NAS5527-03-11 | 0.925 | 0.472 | 257 | Round | -40 | Nylon 6/6 | 0.925 in | 0.197 | |
NS-03-13 | UL94 V-2 | Natural | NAS5527-03-13 | 0.827 | 0.472 | 257 | Round | -40 | Nylon 6/6 | 0.827 in | 0.197 | |
NS-03-04 | UL94 V-2 | Natural | NAS5527-03-04 | 0.190 | 0.472 | 257 | Round | -40 | Nylon 6/6 | 0.190 in | 0.197 | |
NS-04-01 | UL94 V-2 | Natural | NAS5527-04-01 | 0.500 | 0.472 | 257 | Round | -40 | Nylon 6/6 | 0.500 in | 0.260 | |
NS-03-15 | UL94 V-2 | Natural | NAS5527-03-15 | 0.669 | 0.472 | 257 | Round | -40 | Nylon 6/6 | 0.669 in | 0.197 |
Per page:
1-10 of 23
1–5 of 23 variants
Per page:
NS-03-02
Material Flammability Standard
UL94 V-2
Color
Natural
Military Specification
NAS5527-03-02
Spacer Length
0.598
NS-03-01
Material Flammability Standard
UL94 V-2
Color
Natural
Military Specification
NAS5527-03-01
Spacer Length
0.500
NS-03-09
Material Flammability Standard
UL94 V-2
Color
Natural
Military Specification
NAS5527-03-09
Spacer Length
0.886
NS-03-03
Material Flammability Standard
UL94 V-2
Color
Natural
Military Specification
NAS5527-03-03
Spacer Length
0.250
Per page:
1–5 of 24
