SR13SPRT - Retaining Spacers
Showing 1-10 of 140
Per page:1-10 of 140

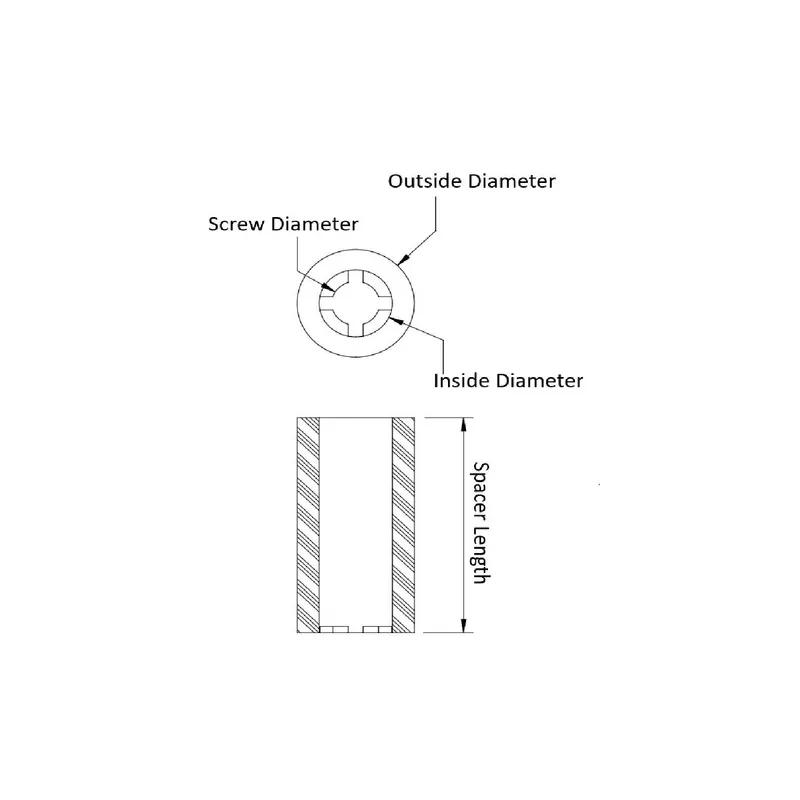

Item Code | Color | Spacer Length | Inside Diameter | Screw Diameter | Outside Diameter | Maximum Operating Temperature | Length | Material Flammability Standard | Screw Size | Minimum Operating Temperature | Material | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
13SPRT097B | Black | 12.7 mm | 7.0 mm | 4.5 mm | 12.7 mm | 85 °C | 12.7 mm | UL94 V-2 | #10 | -40 °C | Nylon 6/6 | |
13SPRT073B | Black | 22.2 mm | 5.0 mm | 3.3 mm | 7.9 mm | 85 °C | 22.2 mm | UL94 V-2 | #6 | -40 °C | Nylon 6/6 | |
13SPRT091B | Black | 3.2 mm | 7.0 mm | 4.5 mm | 12.7 mm | 85 °C | 3.2 mm | UL94 V-2 | #10 | -40 °C | Nylon 6/6 | |
13SPRT033B | Black | 6.4 mm | 2.9 mm | 2.0 mm | 6.4 mm | 85 °C | 6.4 mm | UL94 V-2 | #2 | -40 °C | Nylon 6/6 | |
13SPRT049B | Black | 8.0 mm | 4.0 mm | 2.6 mm | 6.4 mm | 85 °C | 8.0 mm | UL94 V-2 | #4 | -40 °C | Nylon 6/6 | |
13SPRT046B | Black | 3.2 mm | 4.0 mm | 2.6 mm | 6.4 mm | 85 °C | 3.2 mm | UL94 V-2 | #4 | -40 °C | Nylon 6/6 | |
13SPRT063B | Black | 6.4 mm | 5.0 mm | 3.3 mm | 7.9 mm | 85 °C | 6.4 mm | UL94 V-2 | #6 | -40 °C | Nylon 6/6 | |
13SPRT062B | Black | 4.8 mm | 5.0 mm | 3.3 mm | 7.9 mm | 85 °C | 4.8 mm | UL94 V-2 | #6 | -40 °C | Nylon 6/6 | |
13SPRT092B | Black | 4.8 mm | 7.0 mm | 4.5 mm | 12.7 mm | 85 °C | 4.8 mm | UL94 V-2 | #10 | -40 °C | Nylon 6/6 |
Per page:
1-10 of 140
1–5 of 140 variants
Per page:
13SPRT097B
Color
Black
Spacer Length
12.7 mm
Inside Diameter
7.0 mm
Screw Diameter
4.5 mm
13SPRT073B
Color
Black
Spacer Length
22.2 mm
Inside Diameter
5.0 mm
Screw Diameter
3.3 mm
13SPRT091B
Color
Black
Spacer Length
3.2 mm
Inside Diameter
7.0 mm
Screw Diameter
4.5 mm
13SPRT033B
Color
Black
Spacer Length
6.4 mm
Inside Diameter
2.9 mm
Screw Diameter
2.0 mm
Per page:
1–5 of 141
