SR13RSSR - Round Nylon Through Spacers
Showing 1-10 of 149
Per page:1-10 of 149

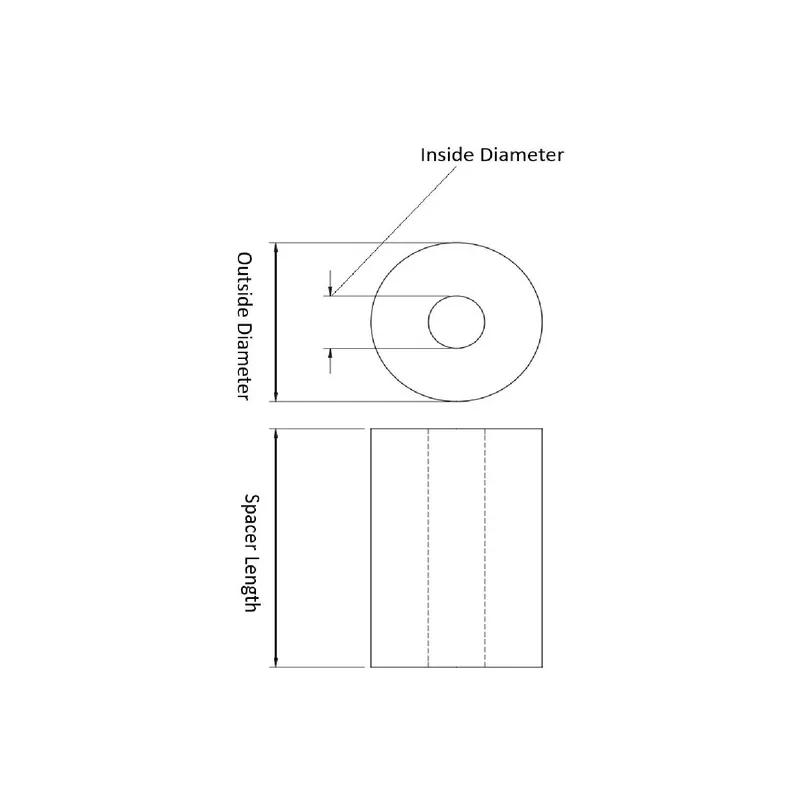

Item Code | Color | Spacer Length | Outside Diameter | Maximum Operating Temperature | Spacer Shape | Material Flammability Standard | Screw Size | Minimum Operating Temperature | Material | Overall Length | Inside Diameter | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
13RSSR0006 | Natural | 6.4 | 0.125 | 149 | Round | UL94 V-2 | #2, M2 | -40 | Nylon 6/6 | 0.250 in | 0.090 | |
13RSSR0008 | Natural | 7.9 | 0.125 | 185 | Round | UL94 V-2 | #0 | -40 | Nylon 6/6 | 0.312 in | 0.090 | |
13RSSR0002 | Natural | 0.125 | 0.125 | 185 | Round | UL94 V-2 | #0 | -40 | Nylon 6/6 | 0.125 in | 0.090 | |
13RSSR0330B | Black | 2.750 | 0.625 | 185 | Round | UL94 V-2 | 5/16 in | -40 | Nylon 6/6 | 2.750 in | 0.315 | |
13RSSR0358B | Black | 2.250 | 1.500 | 185 | Round | UL94 V-2 | 5/8 in | -40 | Nylon 6/6 | 2.500 in | 0.750 | |
13RSSR0122B | Black | 1.125 | 0.500 | 185 | Round | UL94 V-2 | 3/8 in, M9 | -40 | Nylon 6/6 | 1.125 in | 0.380 | |
13RSSR0345B | Black | 3.000 | 0.750 | 185 | Round | UL94 V-2 | 5/16 in | -40 | Nylon 6/6 | 3.000 in | 0.315 | |
13RSSR0073B | Black | 0.281 | 0.375 | 185 | Round | UL94 V-2 | #12, M6 | -40 | Nylon 6/6 | 0.281 in | 0.218 | |
13RSSR0162B | Black | 0.625 | 0.625 | 185 | Round | UL94 V-2 | #10 | -40 | Nylon 6/6 | 0.625 in | 0.192 |
Per page:
1-10 of 149
1–5 of 149 variants
Per page:
13RSSR0006
Color
Natural
Spacer Length
6.4
Outside Diameter
0.125
Maximum Operating Temperature
149
13RSSR0008
Color
Natural
Spacer Length
7.9
Outside Diameter
0.125
Maximum Operating Temperature
185
13RSSR0002
Color
Natural
Spacer Length
0.125
Outside Diameter
0.125
Maximum Operating Temperature
185
13RSSR0330B
Color
Black
Spacer Length
2.750
Outside Diameter
0.625
Maximum Operating Temperature
185
Per page:
1–5 of 150
