SRRIHS - Hex Self Tapping Standoffs
Showing 1-10 of 17
Per page:1-10 of 17

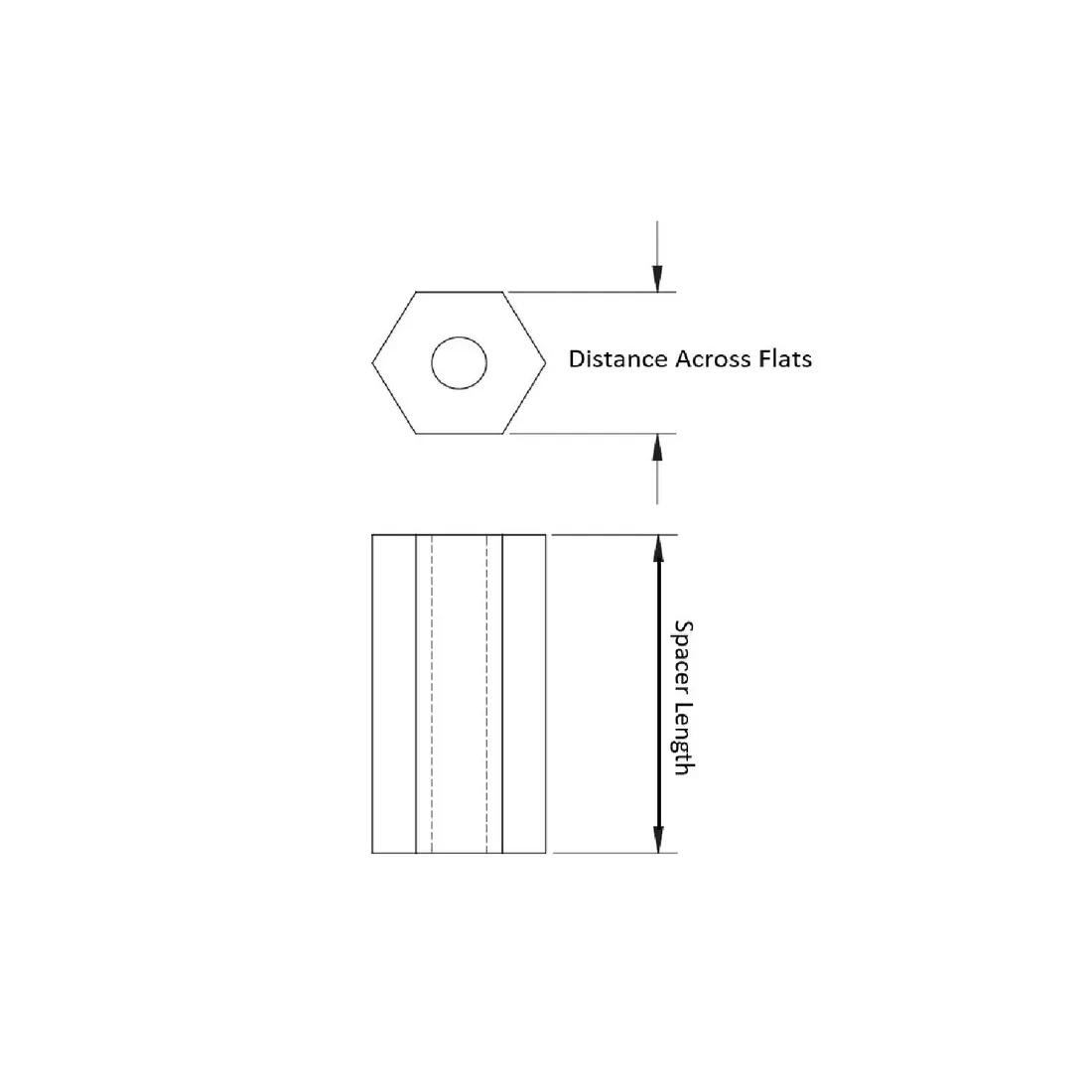

Item Code | Color | Spacer Length | Inside Diameter | Distance Across Flats | Maximum Operating Temperature | Spacer Shape | Material Flammability Standard | Compatible Self-Tapping Screw Size | Minimum Operating Temperature | Thread Size | Material | UL/CSA Description | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
HS-6-12 | Gray | 38.1 mm | 2.8 mm | 6.4 mm | 122 °F | Hexagonal | UL94 V-0 | #6 | 32 °F | #6 | Nylon 6/6 | - | |
HS-4-3 | Light Gray | 9.5 | 2.6 mm | 4.8 | 50 | - | UL94 V-0 | - | 0 | #4 self tapping screw | Chlorinated PVC | UL E335039/192387 | |
HS-6-5 | Light Gray | 15.9 | 2.8 mm | 6.4 | 50 | Hexagonal | UL94 V-0 | #4 | 0 | #4 self tapping screw | CPVC | UL E335039/192387 | |
HS-4-6 | Light Gray | 19.1 | 2.6 mm | 4.8 | 50 | Hexagonal | UL94 V-0 | #4 | 0 | #4 self tapping screw | CPVC | UL E335039/192387 | |
HS-4-8 | Light Gray | 25.4 | 2.6 mm | 4.8 | 50 | Hexagonal | UL94 V-0 | #4 | 0 | #4 self tapping screw | CPVC | UL E335039/192387 | |
HS-6-14 | Light Gray | 44.5 | 2.8 mm | 6.4 | 50 | Hexagonal | UL94 V-0 | #4 | 0 | #4 self tapping screw | CPVC | UL E335039/192387 | |
HS-4-4 | Light Gray | 12.7 | 2.6 mm | 4.8 | 50 | Hexagonal | UL94 V-0 | #4 | 0 | #4 self tapping screw | CPVC | UL E335039/192387 | |
HS-6-4 | Light Gray | 12.7 | 2.8 mm | 6.4 | 50 | Hexagonal | UL94 V-0 | #4 | 0 | #4 self tapping screw | CPVC | UL E335039/192387 | |
HS-4-7 | Light Gray | 22.2 | 2.6 mm | 4.8 | 50 | Hexagonal | UL94 V-0 | #4 | 0 | #4 self tapping screw | CPVC | UL E335039/192387 |
Per page:
1-10 of 17
1–5 of 17 variants
Per page:
HS-6-12
Color
Gray
Spacer Length
38.1 mm
Inside Diameter
2.8 mm
Distance Across Flats
6.4 mm
HS-4-3
Material Flammability Standard
UL94 V-0
Color
Light Gray
Spacer Length
9.5
Distance Across Flats
4.8
HS-6-5
Color
Light Gray
Spacer Length
15.9
Distance Across Flats
6.4
Maximum Operating Temperature
50
HS-4-6
Color
Light Gray
Spacer Length
19.1
Distance Across Flats
4.8
Maximum Operating Temperature
50
Per page:
1–5 of 18
