SRNTS - Metric Male Female Threaded Standoff
Showing 1-4 of 4
Per page:1-4 of 4

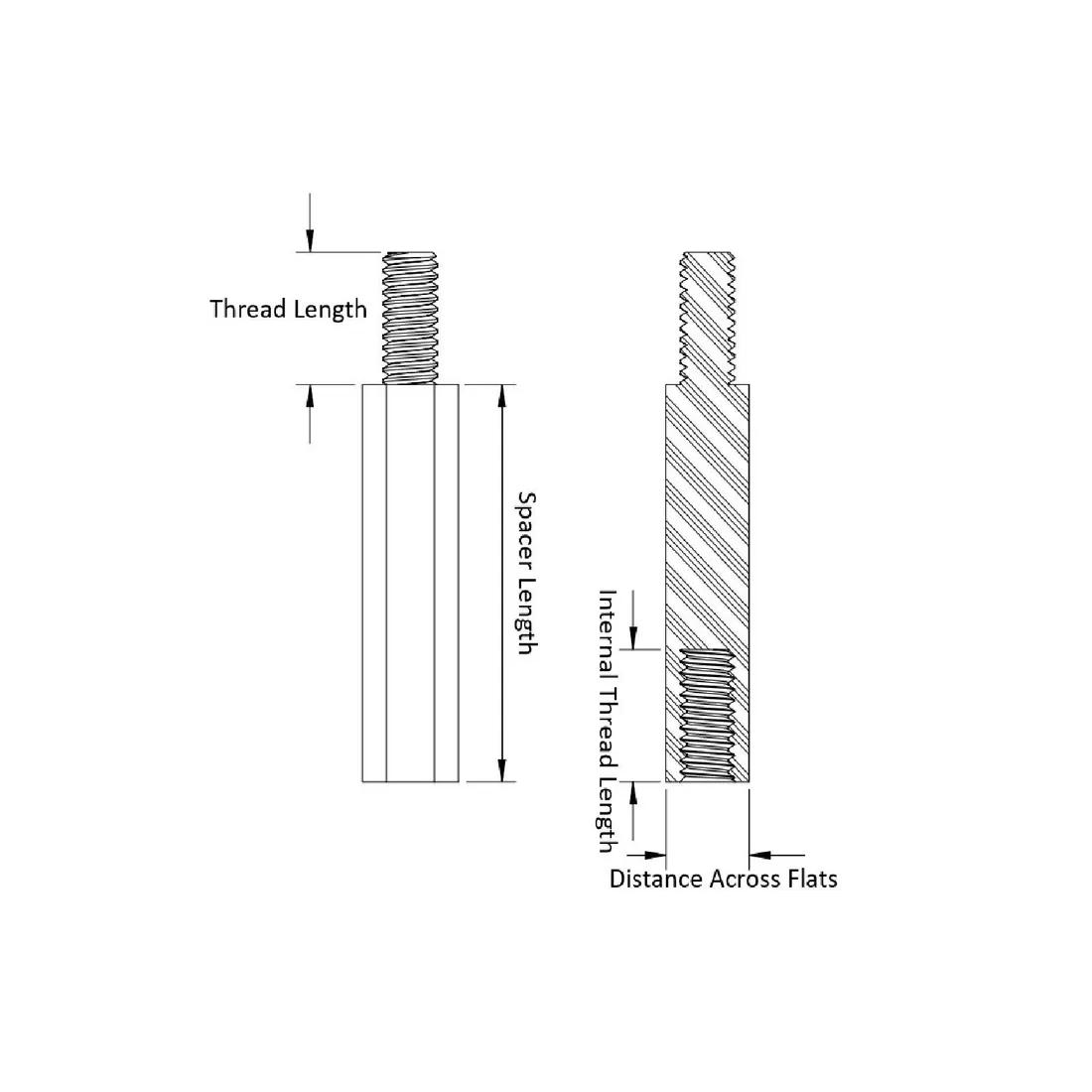

Item Code | External Thread Length | Material Flammability Standard | Color | Spacer Length | UL/CSA Description | Internal Thread Length | Distance Across Flats | Thread Type | Maximum Operating Temperature | Minimum Operating Temperature | Thread Size | Material | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NTS-7 | 6.3 mm | UL94 V-2 | Natural | 7.0 mm | UL E41797 | 6.0 mm | 6.0 mm | M3 | 65 °C | -40 °C | M3 | Nylon 6/6 | |
NTS-17.5 | 6.0 mm | UL94 V-2 | Natural | 17.4 mm | UL E41797 | 10.0 mm | 6.0 mm | - | 65 °C | -40 °C | M3 | Nylon 6/6 | |
NTS-12 | 6.4 mm | UL94 V-2 | Natural | 12.7 mm | UL E41797 | 10.0 mm | 6.0 mm | - | 65 °C | -40 °C | M3 | Nylon 6/6 | |
NTS-37 | 5.5 mm | UL94 V-2 | Natural | 37.1 mm | UL E41797 | 8.0 mm | 8.0 mm | - | 65 °C | -40 °C | M4 | Nylon 6/6 |
Per page:
1-4 of 4
1–5 of 4 variants
Per page:
NTS-7
External Thread Length
6.3 mm
Material Flammability Standard
UL94 V-2
Color
Natural
Spacer Length
7.0 mm
NTS-17.5
External Thread Length
6.0 mm
Material Flammability Standard
UL94 V-2
Color
Natural
Spacer Length
17.4 mm
NTS-12
External Thread Length
6.4 mm
Material Flammability Standard
UL94 V-2
Color
Natural
Spacer Length
12.7 mm
NTS-37
External Thread Length
5.5 mm
Material Flammability Standard
UL94 V-2
Color
Natural
Spacer Length
37.1 mm
