SRHSM - Hex Metric Hex Low Voltage Insulating Standoffs
Showing 1-10 of 29
Per page:1-10 of 29

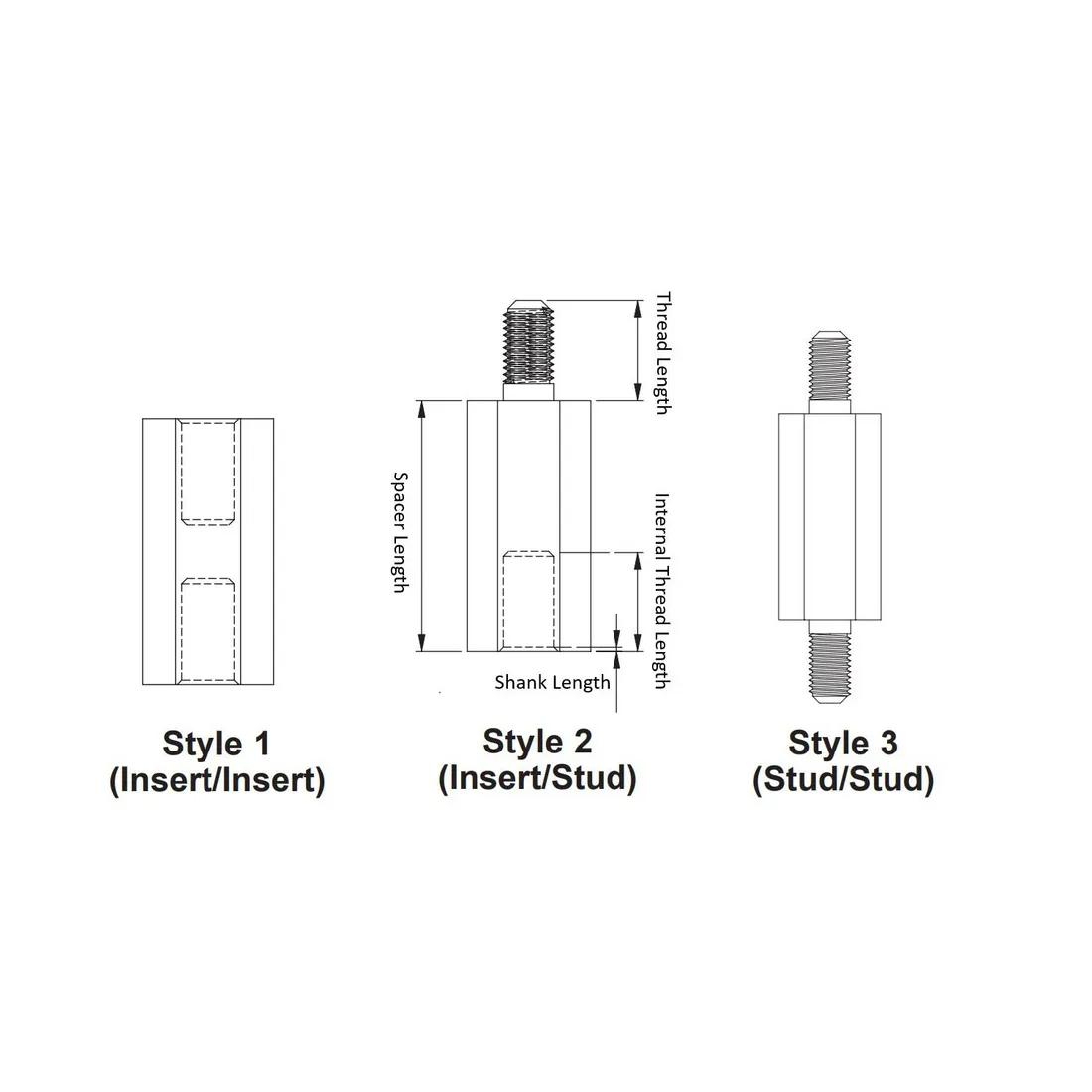

Item Code | Material Flammability Standard | Color | Spacer Length | UL/CSA Description | Distance Across Flats | Maximum External Thread Size | Maximum Operating Temperature | Spacer Shape | Voltage Breakdown | Minimum Operating Temperature | Thread Size | Material | Thread Type | Thread Length | Internal Thread Length B | Internal Thread Length | Insert Material | Spacer Material | Maximum Internal Thread Size | Shank Length (Seed) | External Thread Length | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
HSM3-6.4-15-3 | UL94 HB | Natural | 15.0 mm | UL E53898 | 6.4 mm | M3 | 105 | Hexagonal | 11000 V/mm | -40 | M3 | Nylon 6;Brass | Male/Male | 6.0 mm | - | - | - | - | - | - | - | |
HSM3-6.4-15-1 | UL94 HB | Natural | 15.0 mm | UL E53898 | 6.4 mm | - | 105 | Hexagonal | 11000 V/mm | -40 | M3 | Nylon 6;Brass | - | - | 6.0 mm | 6.0 mm | Brass | Nylon 6/6 | - | - | - | |
HSM3-6.4-15-2 | UL94 HB | Natural | 15.0 mm | UL E53898 | 6.4 mm | M3 | 105 | Hexagonal | 11000 V/mm | -40 | M3 | Nylon 6;Brass | Female/Male | 6.0 mm | - | 6.0 mm | - | - | M3 | - | - | |
HSM3-6.4-32-1 | UL94 V-2 | Natural | 32.0 mm | - | 6.4 mm | - | 185 °F | Hexagonal | - | -40 °F | M3 | Nylon 6/6;Brass | - | 6.0 mm | - | 6.0 mm | - | Nylon 6/6 | - | 0.75 mm | - | |
HSM4-8-32-1 | UL94 V-2 | Natural | 32.0 mm | - | 8.0 mm | - | 185 °F | Hexagonal | - | -40 °F | M4 | Nylon 6/6;Brass | - | 6.0 mm | - | 6.0 mm | - | Nylon 6/6 | - | 1.05 mm | - | |
HSM4-8-32-2 | UL94 V-2 | Natural | 32.0 mm | - | 8.0 mm | - | 185 °F | Hexagonal | - | -40 °F | M4 | Nylon 6/6;Brass | - | 6.0 mm | - | 6.0 mm | Brass | Nylon 6/6 | - | - | 6.0 mm | |
HSM3-6.4-32-2 | UL94 V-2 | Natural | 32.0 mm | - | 6.4 mm | - | 185 °F | Hexagonal | - | -40 °F | M3 | Nylon 6/6;Brass | - | 6.0 mm | - | 6.0 mm | Brass | Nylon 6/6 | - | - | 6.0 mm | |
HSM3-6.4-32-3 | UL94 V-2 | Natural | 32.0 mm | - | 6.4 mm | - | 185 °F | Hexagonal | - | -40 °F | M3 | Nylon 6/6;Brass | Metric | 6.0 mm | - | - | Brass | Nylon 6/6 | - | - | - | |
HSM4-8-32-3 | UL94 V-2 | Natural | 32.0 mm | - | 8.0 mm | - | 185 °F | Hexagonal | - | -40 °F | M4 | Nylon 6/6;Brass | Metric | 6.0 mm | - | - | Brass | Nylon 6/6 | - | - | - |
Per page:
1-10 of 29
1–5 of 29 variants
Per page:
HSM3-6.4-15-3
Material Flammability Standard
UL94 HB
Color
Natural
Spacer Length
15.0 mm
UL/CSA Description
UL E53898
HSM3-6.4-15-1
Material Flammability Standard
UL94 HB
Color
Natural
Internal Thread Length B
6.0 mm
Spacer Length
15.0 mm
HSM3-6.4-15-2
Material Flammability Standard
UL94 HB
Color
Natural
Maximum Internal Thread Size
M3
Spacer Length
15.0 mm
HSM3-6.4-32-1
Material Flammability Standard
UL94 V-2
Spacer Material
Nylon 6/6
Spacer Length
32.0 mm
Internal Thread Length
6.0 mm
Per page:
1–5 of 30
