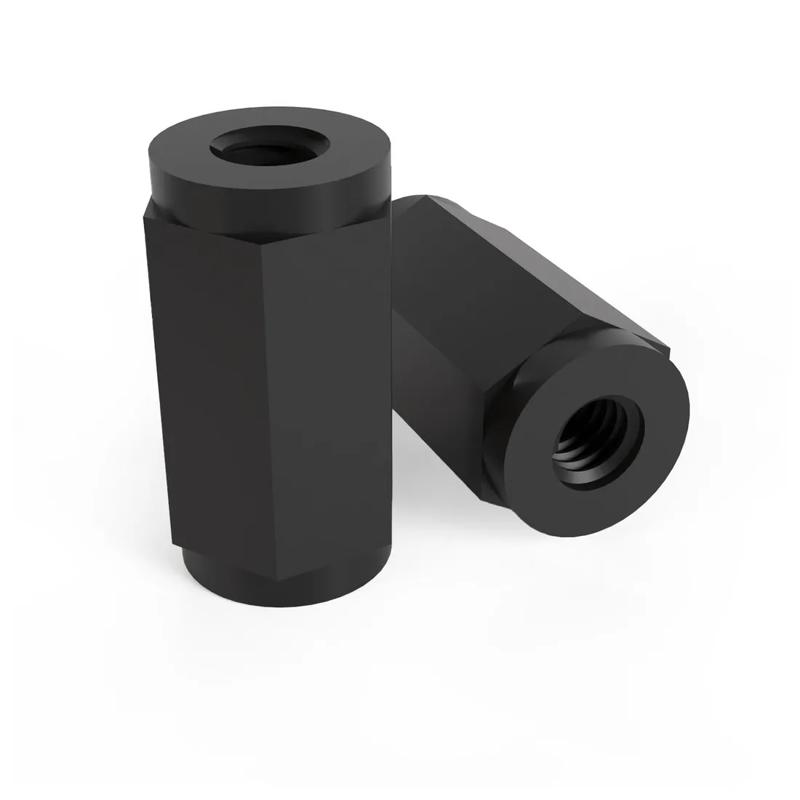

SRHNSM-1 - Metric Hex Threaded Standoff
Showing 1-4 of 4
Per page:1-4 of 4
Item Code | Material Flammability Standard | Color | Spacer Length | Internal Thread Length | Distance Across Flats | Maximum Operating Temperature | Spacer Shape | Minimum Operating Temperature | Thread Size | Material | Internal Thread Size | Thread Type | Type | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
HNSM3-13-5.5-1 | UL94 HB | Black | 13.0 mm | 10.0 mm | 5.5 mm | 221 °F | Hexagonal | -40 °F | M3 | Glass-Filled Nylon 6 | - | - | - | |
HNSM3-28-6-1 | UL94 HB | Black | 28.0 mm | 10.0 mm | 6.0 mm | 221 °F | Hexagonal | -40 °F | M3 | Glass-Filled Nylon 6 | - | - | - | |
HNSM3-30-5.5-1 | UL94 HB | Black | 30.0 | 10.0 mm | 5.5 | 140 | Hexagonal | -20 | M3 | 25% Glass Filled Nylon 6 | M3 | Metric | Female-Female Threaded | |
HNSM3-20-5.5-1 | UL94 HB | Black | 20.0 | 10.0 mm | 5.5 | 140 | Hexagonal | -20 | M3 | 25% Glass Filled Nylon 6 | M3 | Metric | Female-Female Threaded |
Per page:
1-4 of 4
1–5 of 4 variants
Per page:
HNSM3-13-5.5-1
Material Flammability Standard
UL94 HB
Color
Black
Spacer Length
13.0 mm
Internal Thread Length
10.0 mm
HNSM3-28-6-1
Material Flammability Standard
UL94 HB
Color
Black
Spacer Length
28.0 mm
Internal Thread Length
10.0 mm
HNSM3-30-5.5-1
Internal Thread Size
M3
Material Flammability Standard
UL94 HB
Color
Black
Spacer Length
30.0
HNSM3-20-5.5-1
Internal Thread Size
M3
Material Flammability Standard
UL94 HB
Color
Black
Spacer Length
20.0
