SRCBMFTS - Male Female Threaded Standoff
Showing 1-10 of 14
Per page:1-10 of 14

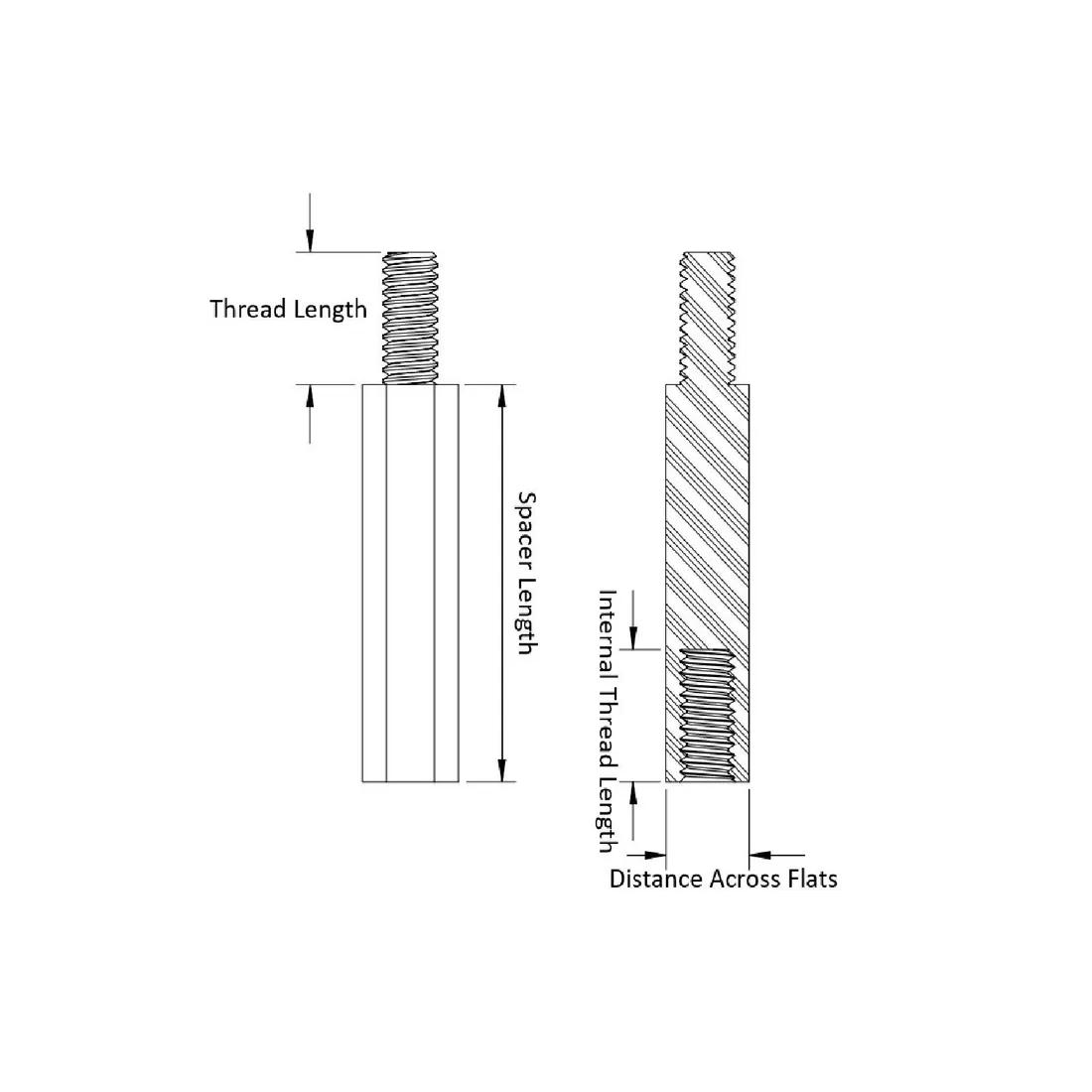

Item Code | Material Flammability Standard | Color | Spacer Length | Internal Thread Length | Distance Across Flats | Thread Length | Maximum Operating Temperature | Spacer Shape | External Thread Length | Internal Thread Size | Minimum Operating Temperature | Thread Size | Material | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CBMFTS240A | UL94 V-2 | Natural | 0.413 in | 0.236 in | 0.220 | 0.236 in | 185 °F | Hexagonal | 0.236 in | M3 x 0.5 | -40 °F | M3 | Nylon 6/6 | |
CBMFTS285A | UL94 V-2 | Natural | 0.669 in | 0.236 in | 0.220 | 0.236 in | 185 °F | Hexagonal | 0.236 in | M3 x 0.5 | -40 °F | M3 | Nylon 6/6 | |
CBMFTS135A | UL94 V-2 | Natural | 0.394 in | 0.236 in | 0.250 in | 0.236 in | 185 °F | Hexagonal | 0.236 in | #6-32 | -40 °F | - | Nylon 6/6 | |
CBMFTS280A | UL94 V-2 | Natural | 0.650 in | 0.236 in | 0.220 | 0.236 in | 185 °F | Hexagonal | 0.236 in | M3 x 0.5 | -40 °F | M3 | Nylon 6/6 | |
CBMFTS270A | UL94 V-2 | Natural | 0.591 in | 0.236 in | 0.220 | 0.236 in | 185 °F | Hexagonal | 0.236 in | M3 x 0.5 | -40 °F | M3 | Nylon 6/6 | |
CBMFTS335A | UL94 V-2 | Natural | 1.181 in | 0.236 in | 0.220 | 0.236 in | 185 °F | Hexagonal | 0.236 in | M3 x 0.5 | -40 °F | M3 | Nylon 6/6 | |
CBMFTS290A | UL94 V-2 | Natural | 0.709 in | 0.236 in | 0.220 | 0.236 in | 185 °F | Hexagonal | 0.236 in | M3 x 0.5 | -40 °F | M3 | Nylon 6/6 | |
CBMFTS310A | UL94 V-2 | Natural | 0.827 in | 0.236 in | 0.220 | 0.236 in | 185 °F | Hexagonal | 0.236 in | M3 x 0.5 | -40 °F | M3 | Nylon 6/6 | |
CBMFTS345A | UL94 V-2 | Natural | 1.378 in | 0.236 in | 0.220 | 0.236 in | 185 °F | Hexagonal | 0.236 in | M3 x 0.5 | -40 °F | M3 | Nylon 6/6 |
Per page:
1-10 of 14
1–5 of 14 variants
Per page:
CBMFTS240A
Material Flammability Standard
UL94 V-2
Color
Natural
Spacer Length
0.413 in
Internal Thread Length
0.236 in
CBMFTS285A
Material Flammability Standard
UL94 V-2
Color
Natural
Spacer Length
0.669 in
Internal Thread Length
0.236 in
CBMFTS135A
Material Flammability Standard
UL94 V-2
Color
Natural
Spacer Length
0.394 in
Internal Thread Length
0.236 in
CBMFTS280A
Material Flammability Standard
UL94 V-2
Color
Natural
Spacer Length
0.650 in
Internal Thread Length
0.236 in
Per page:
1–5 of 15
