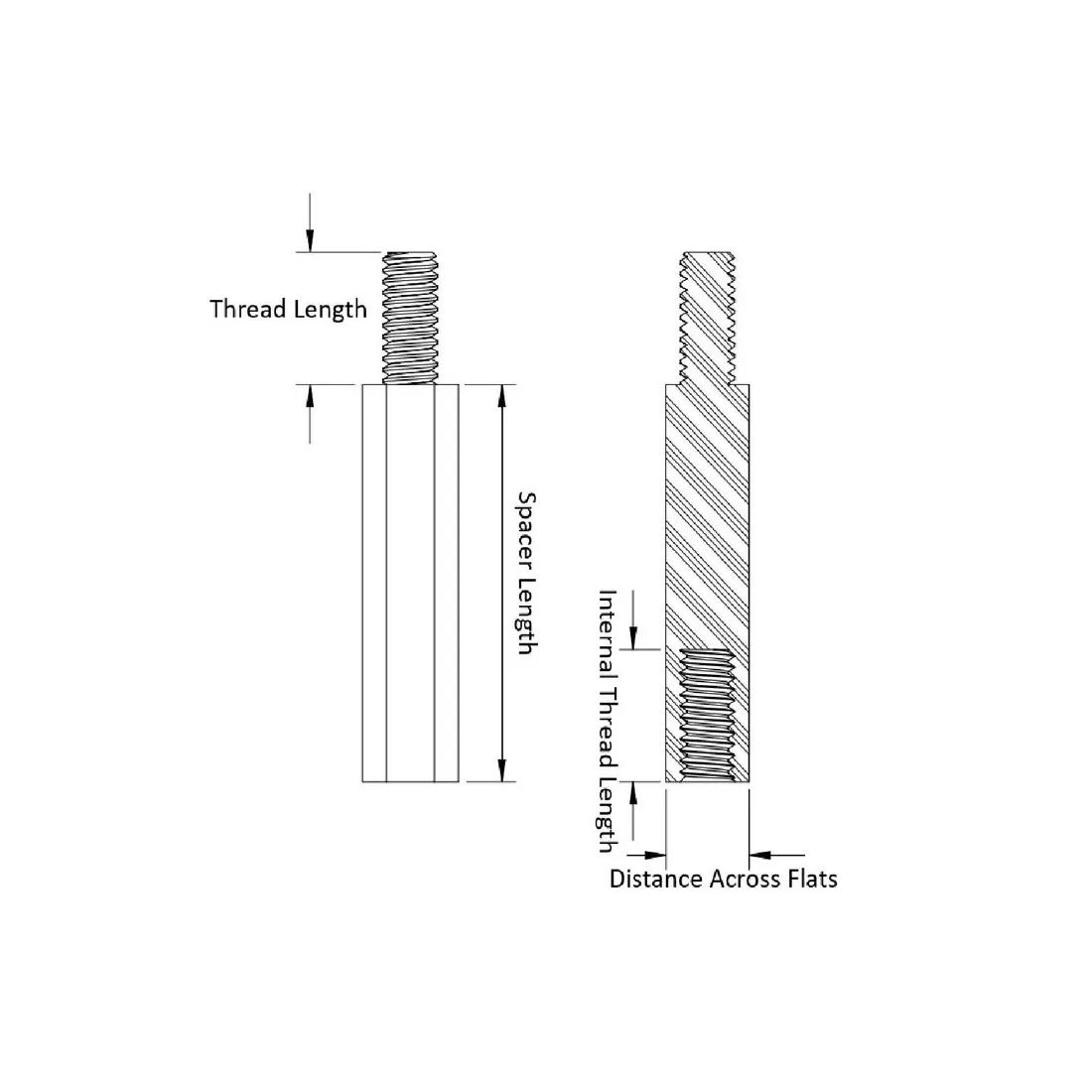

Item Code | External Thread Length | Material Flammability Standard | Color | Spacer Length | Internal Thread Length | Distance Across Flats | Thread Length | Maximum Operating Temperature | Spacer Shape | Minimum Operating Temperature | Material | Internal Thread Size | Thread Size | Thread Type | External Thread Size | Type | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
36M40MF025B | 0.375 in | UL94 V-2 | Black | 0.984 in | 0.375 in | 6.0 mm | 9.5 mm | 85 °C | Hexagonal | -40 °C | Nylon 6/6 | - | - | - | - | - | |
36440MF037B | 0.188 in | UL94 V-2 | Black | 0.375 in | 0.188 in | 0.250 in | 0.188 in | 185 °F | Hexagonal | -40 °F | Nylon 6/6 | - | - | - | - | - | |
36440MF025B | 0.188 in | UL94 V-2 | Black | 0.250 in | 0.188 in | 0.250 in | 0.188 in | 185 °F | Hexagonal | -40 °F | Nylon 6/6 | - | - | - | - | - | |
36440MF050B | 0.188 in | UL94 V-2 | Black | 0.500 in | 0.188 in | 0.250 in | 0.188 in | 185 °F | Hexagonal | -40 °F | Nylon 6/6 | - | - | - | - | - | |
36440MF075B | 0.188 in | UL94 V-2 | Black | 0.750 in | 0.188 in | 0.250 in | 0.188 in | 185 °F | Hexagonal | -40 °F | Nylon 6/6 | - | - | - | - | - | |
36632MF075B | 0.250 in | UL94 V-2 | Black | 0.750 in | 0.250 in | 0.250 in | 0.250 in | 185 °F | Hexagonal | -40 °F | Nylon 6/6 | - | - | - | - | - | |
36632MF050B | 0.250 in | UL94 V-2 | Black | 0.500 in | 0.250 in | 0.250 in | 0.250 in | 185 °F | Hexagonal | -40 °F | Nylon 6/6 | - | - | - | - | - | |
36440MF200B | 0.188 in | UL94 V-2 | Black | 2.000 in | 0.188 in | 0.250 in | 0.188 in | 185 °F | Hexagonal | -40 °F | Nylon 6/6 | - | - | - | - | - | |
36440MF062B | 0.188 in | UL94 V-2 | Black | 0.625 in | 0.188 in | 0.250 in | 0.188 in | 185 °F | Hexagonal | -40 °F | Nylon 6/6 | - | - | - | - | - |
External Thread Length
0.375 in
Material Flammability Standard
UL94 V-2
Color
Black
Spacer Length
0.984 in
External Thread Length
0.188 in
Material Flammability Standard
UL94 V-2
Color
Black
Spacer Length
0.375 in
External Thread Length
0.188 in
Material Flammability Standard
UL94 V-2
Color
Black
Spacer Length
0.250 in
External Thread Length
0.188 in
Material Flammability Standard
UL94 V-2
Color
Black
Spacer Length
0.500 in
