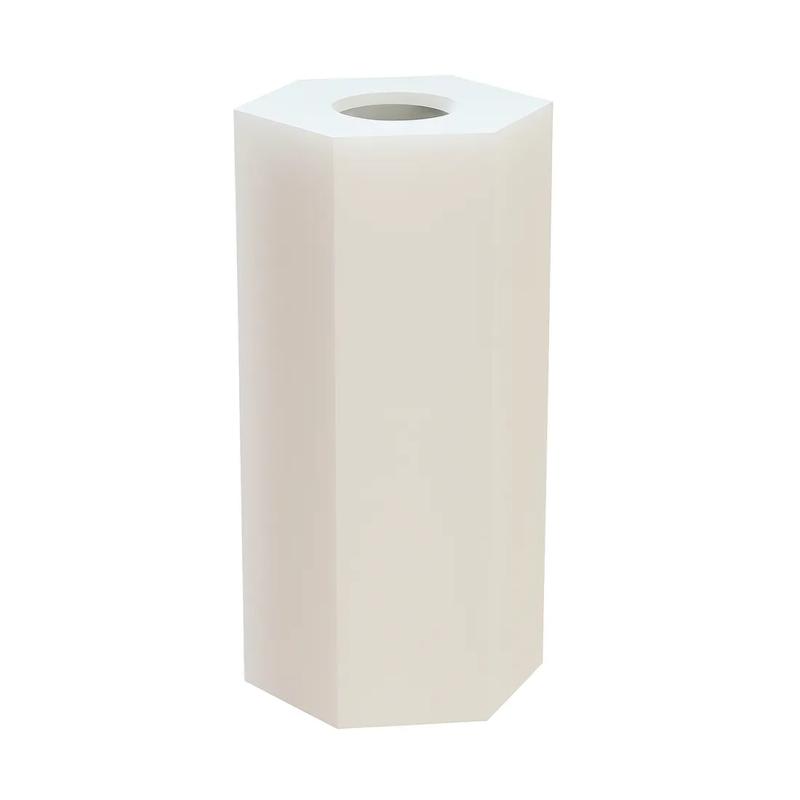

SR35MHSP - Metric Hex Self Tapping Standoffs
Showing 1-9 of 9
Per page:1-9 of 9

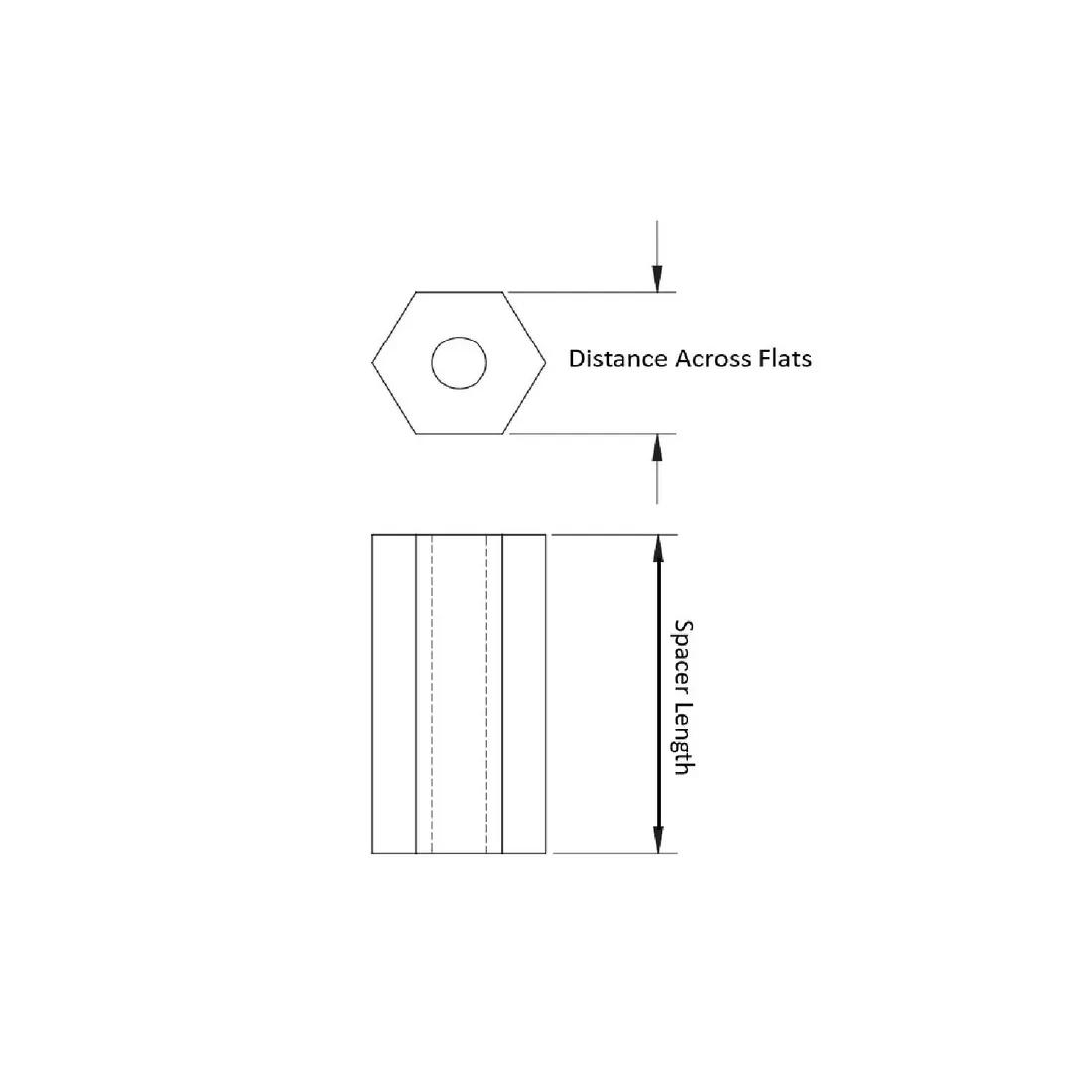

Item Code | Color | Spacer Length | Inside Diameter | Distance Across Flats | Maximum Operating Temperature | Spacer Shape | Material Flammability Standard | Compatible Self-Tapping Screw Size | Minimum Operating Temperature | Thread Size | Material | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
35MHSP004 | Natural | 20.0 mm | 2.6 mm | 6.0 mm | 85 | Hexagonal | UL94 V-2 | M3 | -40 | M3 | Nylon 6/6 | |
35MHSP006 | Natural | 6.0 mm | 3.6 mm | 6.0 mm | 85 | Hexagonal | UL94 V-2 | M4 | -40 | M4 | Nylon 6/6 | |
35MHSP020 | Natural | 20.0 mm | 3.6 mm | 6.0 mm | 85 | Hexagonal | UL94 V-2 | M4 | -40 | M4 | Nylon 6/6 | |
35MHSP008 | Natural | 8.0 mm | 3.6 mm | 6.0 mm | 85 | Hexagonal | UL94 V-2 | M4 | -40 | M4 | Nylon 6/6 | |
35MHSP010 | Natural | 10.0 mm | 3.6 mm | 6.0 mm | 85 | Hexagonal | UL94 V-2 | M4 | -40 | M4 | Nylon 6/6 | |
35MHSP015 | Natural | 15.0 mm | 3.6 mm | 6.0 mm | 85 | Hexagonal | UL94 V-2 | M4 | -40 | M4 | Nylon 6/6 | |
35MHSP012 | Natural | 12.0 mm | 3.6 mm | 6.0 mm | 85 | Hexagonal | UL94 V-2 | M4 | -40 | M4 | Nylon 6/6 | |
35MHSP018 | Natural | 18.0 mm | 3.6 mm | 6.0 mm | 85 | Hexagonal | UL94 V-2 | M4 | -40 | M4 | Nylon 6/6 | |
35MHSP025 | Natural | 25.0 mm | 3.6 mm | 6.0 mm | 85 | Hexagonal | UL94 V-2 | M4 | -40 | M4 | Nylon 6/6 |
Per page:
1-9 of 9
1–5 of 9 variants
Per page:
35MHSP004
Color
Natural
Spacer Length
20.0 mm
Inside Diameter
2.6 mm
Distance Across Flats
6.0 mm
35MHSP006
Color
Natural
Spacer Length
6.0 mm
Inside Diameter
3.6 mm
Distance Across Flats
6.0 mm
35MHSP020
Color
Natural
Spacer Length
20.0 mm
Inside Diameter
3.6 mm
Distance Across Flats
6.0 mm
35MHSP008
Color
Natural
Spacer Length
8.0 mm
Inside Diameter
3.6 mm
Distance Across Flats
6.0 mm
Per page:
1–5 of 10
