SR35HSP - Hex Self Tapping Standoffs
Showing 1-10 of 69
Per page:1-10 of 69

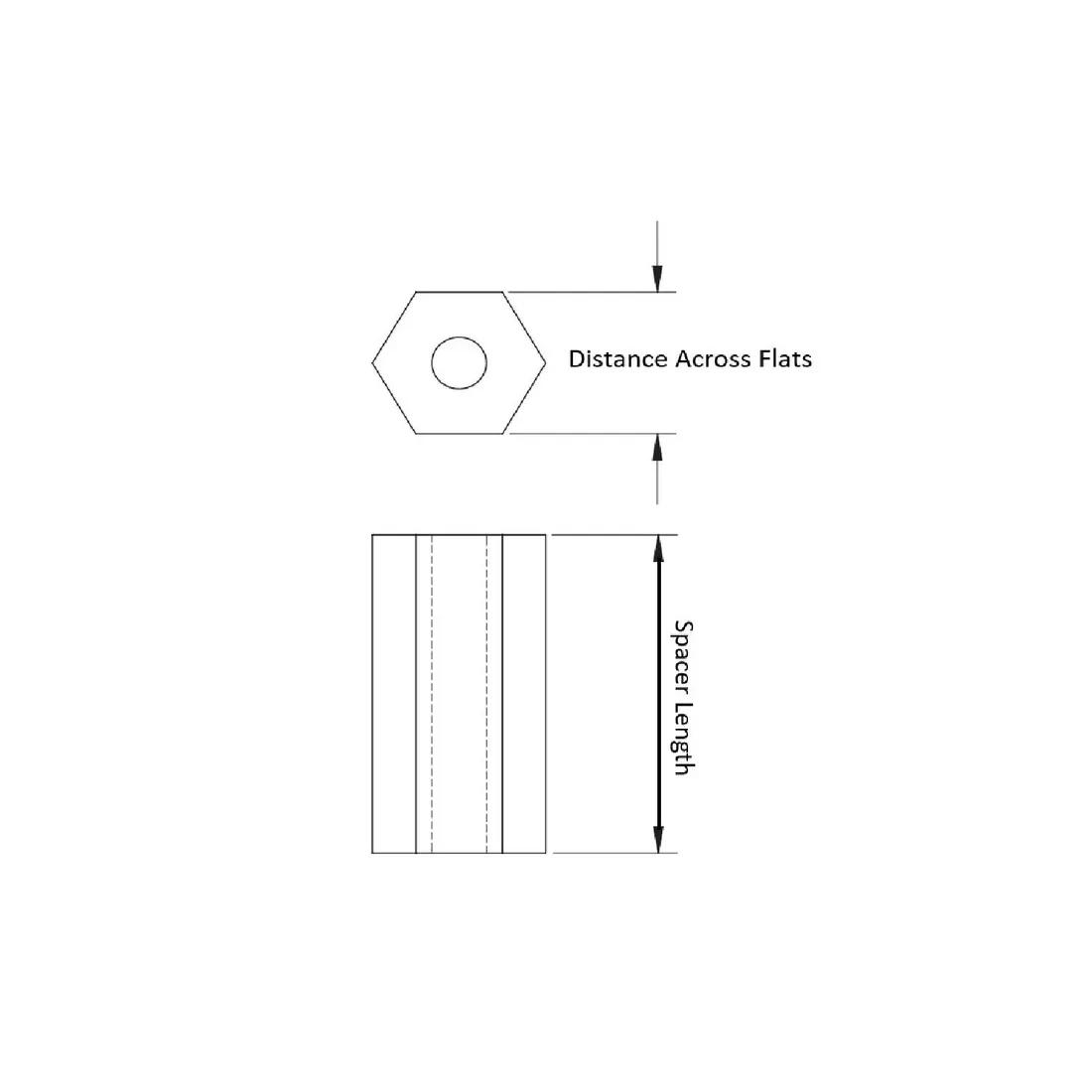

Item Code | Color | Spacer Length | Inside Diameter | Distance Across Flats | Maximum Operating Temperature | Spacer Shape | Material Flammability Standard | Compatible Self-Tapping Screw Size | Minimum Operating Temperature | Thread Size | Material | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
35HSP014B | Black | 19.1 mm | 3.6 mm | 6.4 mm | 85 °C | Hexagonal | UL94 V-2 | #8 | -40 °C | #8 | Nylon 6/6 | |
35HSP107B | Black | 9.5 mm | 2.9 mm | 4.8 mm | 85 °C | Hexagonal | UL94 V-2 | #6 | -40 °C | #6 | Nylon 6/6 | |
35HSP124B | Black | 19.1 mm | 2.3 mm | 4.8 mm | 85 °C | Hexagonal | UL94 V-2 | #4 | -40 °C | #4 | Nylon 6/6 | |
35HSP113B | Black | 14.3 mm | 1.9 mm | 4.8 mm | 85 °C | Hexagonal | UL94 V-2 | #2 | -40 °C | #2 | Nylon 6/6 | |
35HSP016B | Black | 22.2 mm | 2.3 mm | 6.4 mm | 85 °C | Hexagonal | UL94 V-2 | #4 | -40 °C | #4 | Nylon 6/6 | |
35HSP309B | Black | 19.1 mm | 2.8 mm | 9.5 mm | 85 °C | Hexagonal | UL94 V-2 | #6 | -40 °C | #6 | Nylon 6/6 | |
35HSP005B | Black | 25.4 mm | 2.3 mm | 6.4 mm | 85 °C | Hexagonal | UL94 V-2 | #4 | -40 °C | #4 | Nylon 6/6 | |
35HSP116B | Black | 22.2 mm | 2.3 mm | 4.8 mm | 85 °C | Hexagonal | UL94 V-2 | #4 | -40 °C | #4 | Nylon 6/6 | |
35HSP037 | Natural | 21.0 mm | 2.4 mm | 6.4 mm | 185 °F | Hexagonal | UL94 V-2 | #4 | -40 °F | #4 | Nylon 6/6 |
Per page:
1-10 of 69
1–5 of 69 variants
Per page:
35HSP014B
Color
Black
Spacer Length
19.1 mm
Inside Diameter
3.6 mm
Distance Across Flats
6.4 mm
35HSP107B
Color
Black
Spacer Length
9.5 mm
Inside Diameter
2.9 mm
Distance Across Flats
4.8 mm
35HSP124B
Color
Black
Spacer Length
19.1 mm
Inside Diameter
2.3 mm
Distance Across Flats
4.8 mm
35HSP113B
Color
Black
Spacer Length
14.3 mm
Inside Diameter
1.9 mm
Distance Across Flats
4.8 mm
Per page:
1–5 of 70
