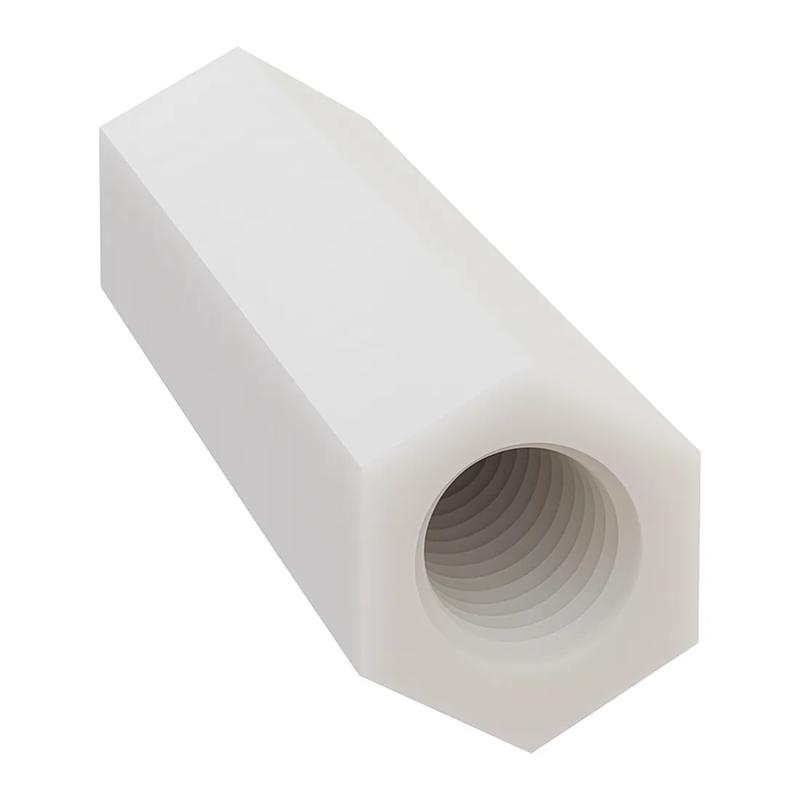

SR14MMHTSP - Metric Threaded Hex Standoffs
Showing 1-8 of 8
Per page:1-8 of 8

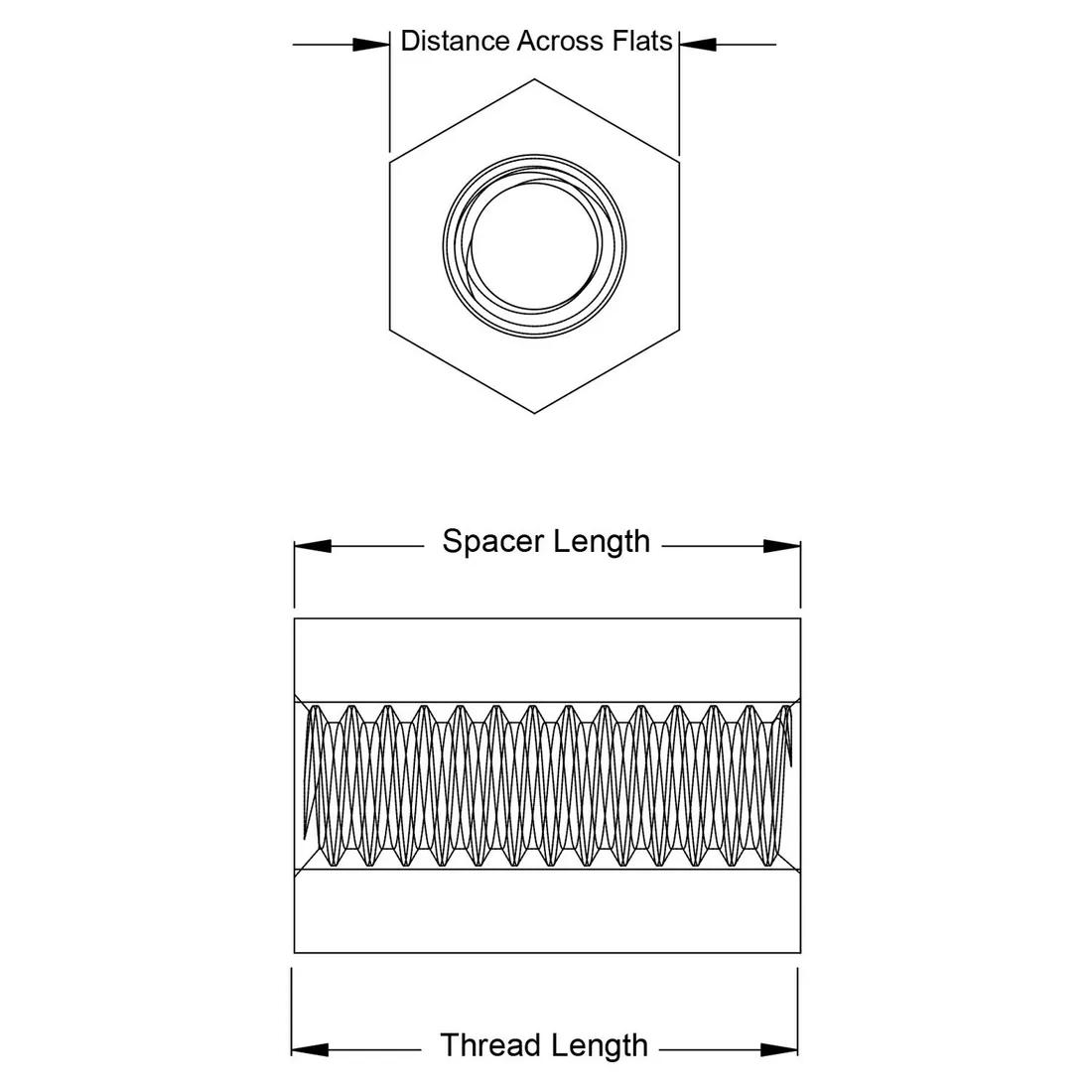

Item Code | Internal Thread Size | Material Flammability Standard | Color | Spacer Length | Distance Across Flats | Thread Type | Maximum Operating Temperature | Tap Size | Minimum Operating Temperature | Thread Size | Material | Type | Spacer Shape | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
14MMHTSP025 | M4 x 0.7 | UL94 V-2 | Natural | 25.0 mm | 6.0 mm | Metric | 85 | 9.5 mm | -40 | M4 | Nylon | Female Threaded | Hexagonal | |
14MMHTSP012 | M4 x 0.7 | UL94 V-2 | Natural | 12.0 mm | 6.0 mm | Metric | 85 | - | -40 | M4 | Nylon | Female Threaded | Hexagonal | |
14MMHTSP006 | M4 x 0.7 | UL94 V-2 | Natural | 6.0 mm | 6.0 mm | Metric | 85 | - | -40 | M4 | Nylon | Female Threaded | Hexagonal | |
14MMHTSP010 | M4 x 0.7 | UL94 V-2 | Natural | 10.0 mm | 6.0 mm | Metric | 85 | - | -40 | M4 | Nylon | Female Threaded | Hexagonal | |
14MMHTSP018 | M4 x 0.7 | UL94 V-2 | Natural | 18.0 mm | 6.0 mm | Metric | 85 | - | -40 | M4 | Nylon | Female Threaded | Hexagonal | |
14MMHTSP020 | M4 x 0.7 | UL94 V-2 | Natural | 20.0 mm | 6.0 mm | Metric | 85 | 9.5 mm | -40 | M4 | Nylon | Female Threaded | Hexagonal | |
14MMHTSP008 | M4 x 0.7 | UL94 V-2 | Natural | 8.0 mm | 6.0 mm | Metric | 85 | - | -40 | M4 | Nylon | Female Threaded | Hexagonal | |
14MMHTSP015 | M4 x 0.7 | UL94 V-2 | Natural | 15.0 mm | 6.0 mm | Metric | 85 | - | -40 | M4 | Nylon | Female Threaded | Hexagonal |
Per page:
1-8 of 8
1–5 of 8 variants
Per page:
14MMHTSP025
Internal Thread Size
M4 x 0.7
Material Flammability Standard
UL94 V-2
Color
Natural
Spacer Length
25.0 mm
14MMHTSP012
Internal Thread Size
M4 x 0.7
Material Flammability Standard
UL94 V-2
Color
Natural
Spacer Length
12.0 mm
14MMHTSP006
Internal Thread Size
M4 x 0.7
Material Flammability Standard
UL94 V-2
Color
Natural
Spacer Length
6.0 mm
14MMHTSP010
Internal Thread Size
M4 x 0.7
Material Flammability Standard
UL94 V-2
Color
Natural
Spacer Length
10.0 mm
Per page:
1–5 of 9
