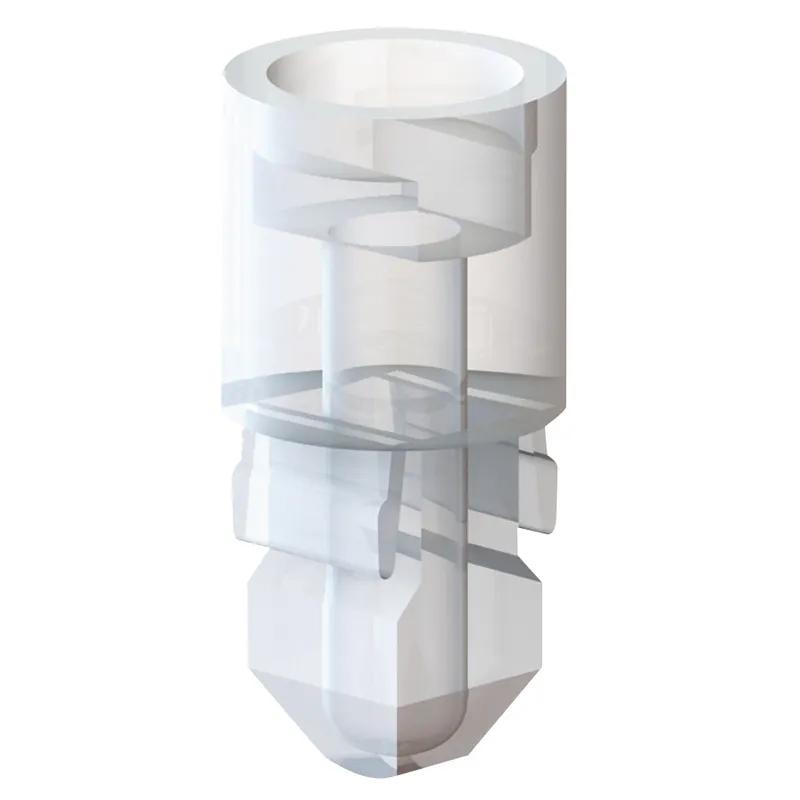

SRSN - Spacer Nut
Showing 1-6 of 6
Per page:1-6 of 6
Item Code | Color | Body Diameter | Spacer Length | Maximum Operating Temperature | Material Flammability Standard | Screw Size | Minimum Operating Temperature | Material | Head Shape | Panel Thickness | Square Size | Base Hole Type | Maximum Panel Thickness B | Locking Head Height | Hole Diameter B | Screw Type | Hole Diameter A | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SN-375 | Clear | 0.500 in | 0.375 in | 239 °F | UL94 HB | #8 | -40 °F | PC | Round | 0.063 in | 0.312 in | - | - | - | - | - | - | |
SN-125 | Clear | 0.500 in | 0.125 in | 239 °F | UL94 HB | #8 | -40 °F | PC | Round | 0.063 in | 0.312 in | - | - | - | - | - | - | |
SN-187 | Clear | 12.7 | 4.7 | 115 | UL94 HB | #8 | -40 | PC | Round | - | 7.9 | Square | 1.6 mm | 14.0 mm | 7.9 mm | Self Tapping | 4.2 mm | |
SN-500 | Clear | 12.7 | 12.7 | 115 | UL94 HB | #8 | -40 | PC | Round | - | 7.9 | Square | 1.6 mm | 14.0 mm | 7.9 mm | Self Tapping | 4.2 mm | |
SN-312 | Clear | 12.7 | 8.0 | 115 | UL94 HB | #8 | -40 | PC | Round | - | 7.9 | Square | 1.6 mm | 14.0 mm | 7.9 mm | Self Tapping | 4.2 mm | |
SN-250 | Clear | 12.7 | 6.4 | 115 | UL94 HB | #8 | -40 | PC | Round | - | 7.9 | Square | 1.6 mm | 14.0 mm | 7.9 mm | Self Tapping | 4.2 mm |
Per page:
1-6 of 6
1–5 of 6 variants
Per page:
SN-375
Color
Clear
Body Diameter
0.500 in
Spacer Length
0.375 in
Maximum Operating Temperature
239 °F
SN-125
Color
Clear
Body Diameter
0.500 in
Spacer Length
0.125 in
Maximum Operating Temperature
239 °F
SN-187
Base Hole Type
Square
Body Diameter
12.7
Spacer Length
4.7
Maximum Panel Thickness B
1.6 mm
SN-500
Base Hole Type
Square
Body Diameter
12.7
Spacer Length
12.7
Maximum Panel Thickness B
1.6 mm
Per page:
1–5 of 7
