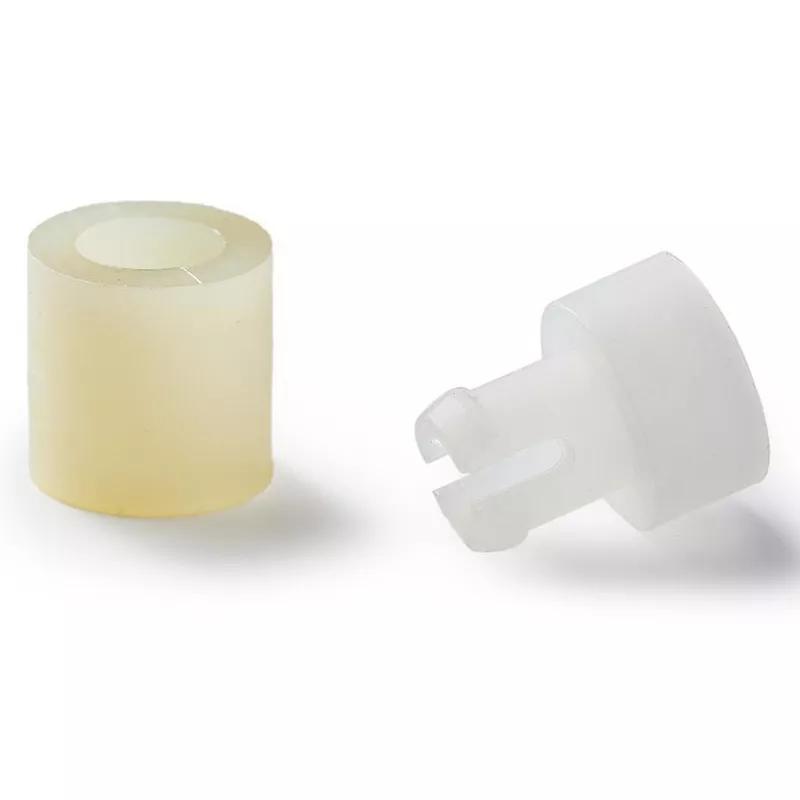

SRCS-113 - Through Hole Spacers
Showing 1-10 of 16
Per page:1-10 of 16
Item Code | Material Flammability Standard | Hole A Fix Type | Color | Body Diameter | Spacer Length | Hole B Fix Type | Style | Type | Minimum Operating Temperature | Thread Size | Material | Maximum Panel Thickness A | Maximum Operating Temperature | Hole Diameter A | UL/CSA Description | Mounting Hole Diameter | Locking Head Height A | Locking Head Height | Retainer Diameter | Pin Head Diameter | Pin Head Height (Seed) | Retainer Height | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CSR4-787-01 | UL94 V-2 | Snap Lock | Natural | 0.295 in | 0.787 in | Snap Lock Fix | 2 | Retainer | -40 °F | #4, M2.5 | Nylon 6/6 | 0.093 in | 185 °F | - | - | - | - | - | - | - | - | - | |
CSR6-787-01 | UL94 V-2 | Snap Lock | Natural | 0.394 in | 0.787 in | Snap Lock Fix | 2 | Retainer | -40 °F | #6, M3 | Nylon 6/6 | 0.093 in | 185 °F | - | - | - | - | - | - | - | - | - | |
CSP4-01 | UL94 V-2 | Snap Lock Fix | Natural | 7.5 | 5.0 mm | Snap Lock Fix | 1 | Pin | -40 | #4;M2.5 | Nylon 6/6 | 2.36 | 85 | 5.0 | UL E70062 | 5.0 mm | 0.100 in | 2.5 mm | 7.5 mm | - | - | - | |
CSP8-01 | UL94 V-2 | Snap Lock Fix | Natural | 11.0 | 6.9 mm | Snap Lock Fix | 1 | Pin | -40 | #8;M4 | Nylon 6/6 | 2.36 | 85 | 8.3 | UL E70062 | 6.9 mm | 0.220 in | 5.5 mm | 11.1 mm | 8.4 mm | 3.6 mm | - | |
CSR4-295-01 | UL94 V-2 | Snap Lock Fix | Natural | 0.295 in | 0.295 in | Snap Lock Fix | 2 | Retainer | -40 | #4;M2.5 | Nylon 6/6 | 2.36 | 85 | - | UL E70062 | - | - | - | 7.5 mm | - | - | 7.5 mm | |
CSR6-224-01 | UL94 V-2 | Snap Lock Fix | Natural | 0.394 in | 0.224 in | Snap Lock Fix | 2 | Retainer | -40 | #6;M3 | Nylon 6/6 | 2.36 | 85 | - | UL E70062 | - | - | - | 10.0 mm | - | - | 5.7 mm | |
CSR4-394-01 | UL94 V-2 | Snap Lock Fix | Natural | 0.295 in | 0.394 in | Snap Lock Fix | 2 | Retainer | -40 | #4;M2.5 | Nylon 6/6 | 2.36 | 85 | - | UL E70062 | - | - | - | 7.5 mm | - | - | 10.0 mm | |
CSR4-224-01 | UL94 V-2 | Snap Lock Fix | Natural | 0.295 in | 0.224 in | Snap Lock Fix | 2 | Retainer | -40 | #4;M2.5 | Nylon 6/6 | 2.36 | 85 | - | UL E70062 | - | - | - | 7.5 mm | - | - | 5.7 mm | |
CSR8-591-01 | UL94 V-2 | Snap Lock Fix | Natural | 0.436 in | 0.591 in | Snap Lock Fix | 2 | Retainer | -40 | #8;M4 | Nylon 6/6 | 2.36 | 85 | - | UL E70062 | - | - | - | 11.0 mm | - | - | 15.0 mm |
Per page:
1-10 of 16
1–5 of 16 variants
Per page:
CSR4-787-01
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Snap Lock
Color
Natural
Body Diameter
0.295 in
CSR6-787-01
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Snap Lock
Color
Natural
Body Diameter
0.394 in
CSP4-01
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Snap Lock Fix
Color
Natural
Body Diameter
7.5
CSP8-01
Pin Head Diameter
8.4 mm
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Snap Lock Fix
Color
Natural
Per page:
1–5 of 17
