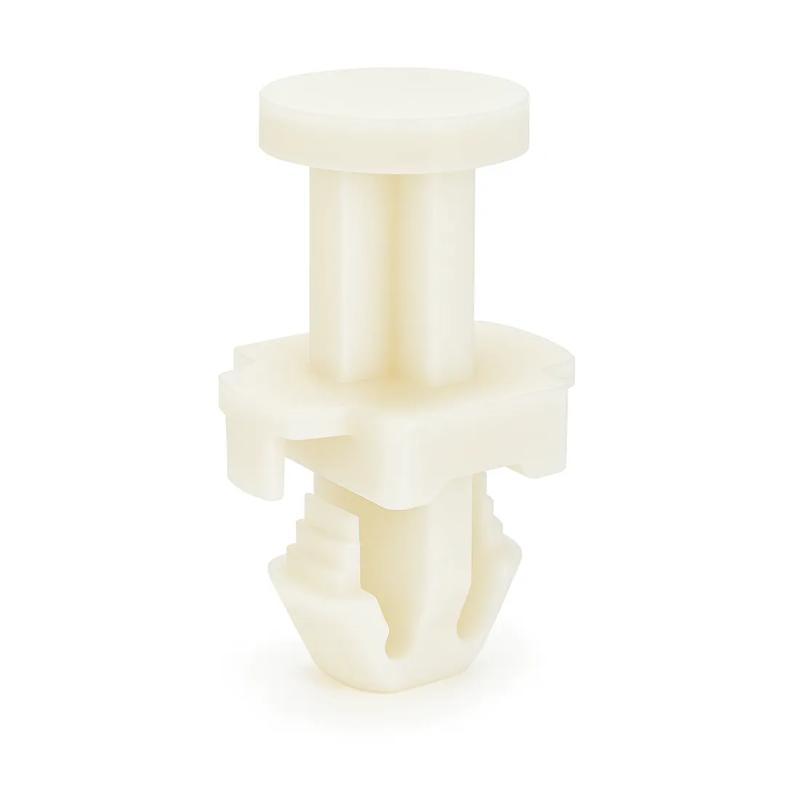

SRPSE - Metric Push Spacer
Showing 1-8 of 8
Per page:1-8 of 8
Item Code | Spacer Length | Overall Length | Locking Head Height B | Maximum Operating Temperature | Material Flammability Standard | Minimum Hole Diameter | Hole Diameter B | Color | Minimum Operating Temperature | Material | Maximum Panel Thickness | Flange Diameter | Hole B Fix Type | Minimum Panel Thickness | Style | Maximum Panel Thickness B | Type | Locking Head Height | Hole Diameter | Exposed End Diameter | Head Width | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PSE-4M-19 | 4.0 | 7.9 mm | 0.075 in | 110 | UL94 V-0 | 4.0 mm | 0.157 in | Natural | -40 | Nylon 6/6 | 1.6 mm | 6.0 | Snap Lock | 0.8 | 3 | 0.062 in | Push Spacer | 1.9 mm | - | - | - | |
PSE-6M-19 | 6.0 | 9.9 mm | 0.075 in | 110 | UL94 V-0 | 4.0 mm | 0.157 in | Natural | -40 | Nylon 6/6 | 1.6 mm | 6.0 | Snap Lock | 0.8 | 3 | 0.062 in | Push Spacer | 1.9 mm | - | - | - | |
PSE-4M-01 | 4.0 | 7.9 mm | 0.075 in | 85 | UL94 V-2 | 4.0 mm | 0.157 in | Natural | -40 | Nylon 6/6 | 1.6 mm | 6.0 | Snap Lock | 0.8 | 3 | 0.062 in | Push Spacer | 1.9 mm | - | - | - | |
PSE-7M-01 | 7.0 | 10.9 mm | 0.075 in | 85 | UL94 V-2 | 4.0 mm | 0.157 in | Natural | -40 | Nylon 6/6 | 1.6 mm | 6.0 | Snap Lock | 0.8 | 3 | 0.062 in | Push Spacer | 1.9 mm | - | - | - | |
PSE-8M-19 | 8.0 | 11.9 mm | 0.075 in | 110 | UL94 V-0 | 4.0 mm | 0.157 in | Natural | -40 | Nylon 6/6 | 1.6 mm | 6.0 | Snap Lock | 0.8 | 3 | 0.062 in | Push Spacer | 1.9 mm | - | - | - | |
PSE-8M-01 | 8.0 | 11.9 mm | 0.075 in | 85 | UL94 V-2 | 4.0 mm | 0.157 in | Natural | -40 | Nylon 6/6 | 1.6 mm | 6.0 | Snap Lock | 0.8 | 3 | 0.062 in | Push Spacer | 1.9 mm | - | - | - | |
PSE-6M-01 | 6.0 | 9.9 mm | 3.9 mm | 85 | UL94 V-2 | - | 0.157 in | Natural | -40 | Nylon 6/6 | 1.6 | 6.0 | Snap Lock | 0.8 | 3 | 0.062 in | - | 0.075 in | 0.157 in | - | 6.0 mm | |
PSE-7M-19 | 7.0 | 10.9 mm | 0.075 in | 110 | UL94 V-0 | 4.0 mm | 0.157 in | Natural | -40 | Nylon 6/6 | 1.6 mm | 6.0 | Snap Lock | 0.8 | 3 | 0.062 in | Push Spacer | 1.9 mm | - | - | - |
Per page:
1-8 of 8
1–5 of 8 variants
Per page:
PSE-4M-19
Spacer Length
4.0
Overall Length
7.9 mm
Locking Head Height B
0.075 in
Maximum Operating Temperature
110
PSE-6M-19
Spacer Length
6.0
Overall Length
9.9 mm
Locking Head Height B
0.075 in
Maximum Operating Temperature
110
PSE-4M-01
Spacer Length
4.0
Overall Length
7.9 mm
Locking Head Height B
0.075 in
Maximum Operating Temperature
85
PSE-7M-01
Spacer Length
7.0
Overall Length
10.9 mm
Locking Head Height B
0.075 in
Maximum Operating Temperature
85
Per page:
1–5 of 9
