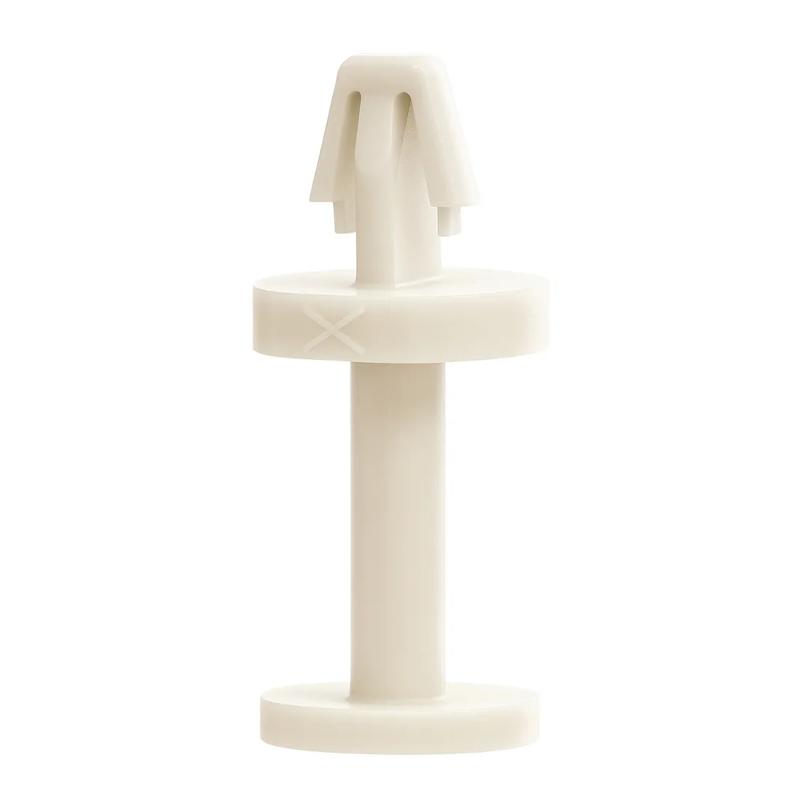

SRPSD - Metric Push Spacer
Showing 1-10 of 16
Per page:1-10 of 16
Item Code | Spacer Length | UL/CSA Description | Locking Head Height B | Maximum Operating Temperature | Material Flammability Standard | Minimum Hole Diameter | Hole Diameter B | Color | Maximum Hole Diameter | Body Diameter | Minimum Operating Temperature | Material | Maximum Panel Thickness | Flange Diameter | Hole B Fix Type | Style | Maximum Panel Thickness B | Type | Locking Head Height | Hole Diameter | Overall Length | Base Width | Exposed End Diameter | Head Width | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PSD-10M-01 | 10.0 | UL E70062 | 0.138 in | 85 | UL94 V-2 | 3.0 mm | 0.120 in | Natural | 3.1 mm | 2.5 | -40 | Nylon 6/6 | 1.6 mm | 6.0 | Snap Lock | 1 | 0.062 in | Push Spacer | 3.5 mm | - | - | - | - | - | |
PSD-14M-01 | 14.0 | UL E70062 | 0.138 in | 85 | UL94 V-2 | 3.0 mm | 0.120 in | Natural | 3.1 mm | 2.5 | -40 | Nylon 6/6 | 1.6 mm | 6.0 | Snap Lock | 1 | 0.062 in | Push Spacer | 3.5 mm | - | - | - | - | - | |
PSD-18M-01 | 18.0 | UL E70062 | 0.138 in | 85 | UL94 V-2 | 3.0 mm | 0.120 in | Natural | 3.1 mm | 2.5 | -40 | Nylon 6/6 | 1.6 mm | 6.0 | Snap Lock | 1 | 0.062 in | Push Spacer | 3.5 mm | - | - | - | - | - | |
PSD-14M-19 | 14.0 | UL E70062 | 0.138 in | 110 | UL94 V-0 | 3.0 mm | 0.120 in | Natural | 3.1 mm | 2.5 | -40 | Nylon 6/6 | 1.6 mm | 6.0 | Snap Lock | 1 | 0.062 in | Push Spacer | 3.5 mm | - | - | - | - | - | |
PSD-12M-01 | 12.0 | UL E70062 | 0.138 in | 85 | UL94 V-2 | 3.0 mm | 0.120 in | Natural | 3.1 mm | 2.5 | -40 | Nylon 6/6 | 1.6 mm | 6.0 | Snap Lock | 1 | 0.062 in | Push Spacer | 3.5 mm | - | - | - | - | - | |
PSD-10M-19 | 10.0 | UL E70062 | 0.138 in | 110 | UL94 V-0 | 3.0 mm | 0.120 in | Natural | 3.1 mm | 2.5 | -40 | Nylon 6/6 | 1.6 mm | 6.0 | Snap Lock | 1 | 0.062 in | Push Spacer | 3.5 mm | - | - | - | - | - | |
PSD-7M-01 | 7.0 | UL E70062 | 0.138 in | 85 | UL94 V-2 | 3.0 mm | 0.120 in | Natural | 3.1 mm | 2.5 | -40 | Nylon 6/6 | 1.6 mm | 6.0 | Snap Lock | 1 | 0.062 in | Push Spacer | 3.5 mm | - | - | - | - | - | |
PSD-18M-19 | 18.0 | UL E70062 | 0.138 in | 110 | UL94 V-0 | 3.0 mm | 0.120 in | Natural | 3.1 mm | 2.5 | -40 | Nylon 6/6 | 1.6 mm | 6.0 | Snap Lock | 1 | 0.062 in | Push Spacer | 3.5 mm | - | - | - | - | - | |
PSD-4M-01 | 4.0 | UL E70062 | 0.138 in | 85 | UL94 V-2 | 3.0 mm | 0.120 in | Natural | 3.1 mm | 2.5 | -40 | Nylon 6/6 | 1.6 mm | 6.0 | Snap Lock | 1 | 0.062 in | Push Spacer | 3.5 mm | - | - | - | - | - |
Per page:
1-10 of 16
1–5 of 16 variants
Per page:
PSD-10M-01
Spacer Length
10.0
UL/CSA Description
UL E70062
Locking Head Height B
0.138 in
Maximum Operating Temperature
85
PSD-14M-01
Spacer Length
14.0
UL/CSA Description
UL E70062
Locking Head Height B
0.138 in
Maximum Operating Temperature
85
PSD-18M-01
Spacer Length
18.0
UL/CSA Description
UL E70062
Locking Head Height B
0.138 in
Maximum Operating Temperature
85
PSD-14M-19
Spacer Length
14.0
UL/CSA Description
UL E70062
Locking Head Height B
0.138 in
Maximum Operating Temperature
110
Per page:
1–5 of 17
