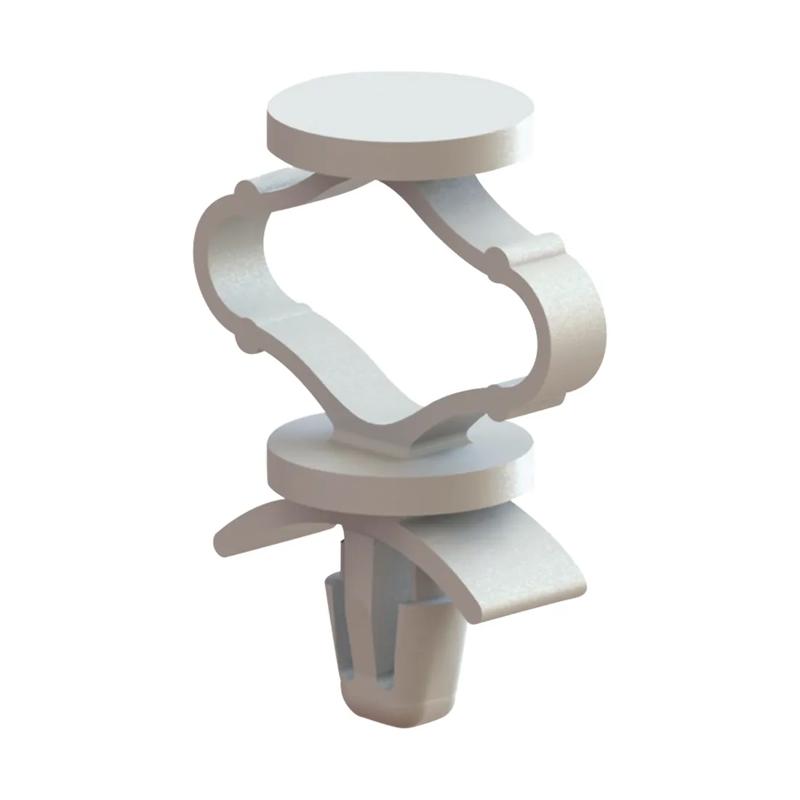

SRPSC - Push Spacer with Cushion
Showing 1-4 of 4
Per page:1-4 of 4
Item Code | Material Flammability Standard | Body Diameter | Hole Diameter | Maximum Panel Thickness | Locking Head Height B | Maximum Operating Temperature | Hole Diameter B | Color | Minimum Operating Temperature | Material | Overall Width | Spacer Length | Minimum Panel Thickness | Maximum Panel Thickness B | Minimum Panel Thickness B | Type | Locking Head Height | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PSC-3 | UL94 HB | 10.0 | 4.8 | 2.0 mm | 0.210 in | 85 | 0.187 in | Natural | -40 | Nylon 6/6 | 14.3 | 15.9 | 0.030 | 0.078 in | 0.8 mm | Cushion | 5.3 mm | |
PSC-1 | UL94 HB | 10.0 | 4.8 | 2.0 mm | 0.210 in | 85 | 0.187 in | Natural | -40 | Nylon 6/6 | 14.3 | 9.5 | 0.030 | 0.078 in | 0.8 mm | Cushion | 5.3 mm | |
PSC-4 | UL94 HB | 10.0 | 4.8 | 2.0 mm | 0.210 in | 85 | 0.187 in | Natural | -40 | Nylon 6/6 | 14.3 | 19.1 | 0.030 | 0.078 in | 0.8 mm | Cushion | 5.3 mm | |
PSC-2 | UL94 HB | 10.0 | 4.8 | 2.0 mm | 0.210 in | 85 | 0.187 in | Natural | -40 | Nylon 6/6 | 14.3 | 12.7 | 0.030 | 0.078 in | 0.8 mm | Cushion | 5.3 mm |
Per page:
1-4 of 4
1–5 of 4 variants
Per page:
PSC-3
Material Flammability Standard
UL94 HB
Body Diameter
10.0
Hole Diameter
4.8
Maximum Panel Thickness
2.0 mm
PSC-1
Material Flammability Standard
UL94 HB
Body Diameter
10.0
Hole Diameter
4.8
Maximum Panel Thickness
2.0 mm
PSC-4
Material Flammability Standard
UL94 HB
Body Diameter
10.0
Hole Diameter
4.8
Maximum Panel Thickness
2.0 mm
PSC-2
Material Flammability Standard
UL94 HB
Body Diameter
10.0
Hole Diameter
4.8
Maximum Panel Thickness
2.0 mm
