SRPS - Push Spacer
Showing 1-10 of 25
Per page:1-10 of 25

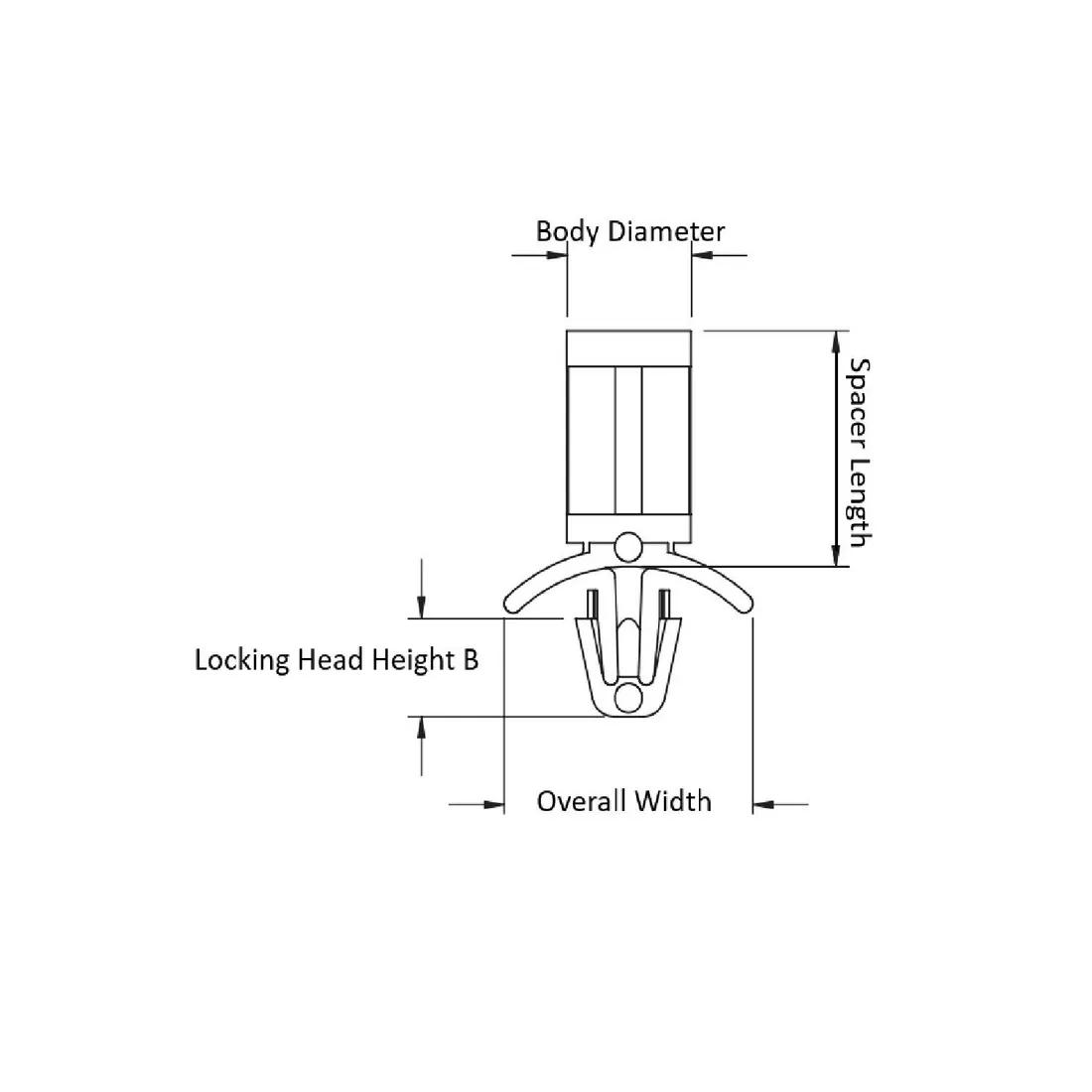

Item Code | Material Flammability Standard | Body Diameter | Hole Diameter | UL/CSA Description | Maximum Panel Thickness | Locking Head Height B | Maximum Operating Temperature | Locking Head Height | Hole Diameter B | Color | Minimum Operating Temperature | Material | Overall Width | Spacer Length | Minimum Panel Thickness | Style | Maximum Panel Thickness B | Minimum Panel Thickness B | Exposed End Diameter | Strap Width | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PS-10-19 | UL94 V-0 | 7.1 | 4.8 | UL E70062 | 2.0 mm | 0.210 in | 110 | 5.6 mm | 0.187 in | Natural | -40 | Nylon 6/6 | 14.3 | 15.9 | 0.030 | 1 | 0.078 in | 0.8 mm | - | - | |
PS-3-01 | UL94 V-2 | 7.1 | 4.8 | UL E70062 | 2.0 mm | 0.210 in | 85 | 5.6 mm | 0.187 in | Natural | -40 | Nylon 6/6 | 14.3 | 4.8 | 0.030 | 1 | 0.078 in | 0.8 mm | - | - | |
PS-14-19 | UL94 V-0 | 7.1 | 4.8 | UL E70062 | 2.0 mm | 0.210 in | 110 | 5.6 mm | 0.187 in | Natural | -40 | Nylon 6/6 | 14.3 | 22.2 | 0.030 | 1 | 0.078 in | 0.8 mm | - | - | |
PS-14-01 | UL94 V-2 | 7.1 | 4.8 | UL E70062 | 2.0 mm | 0.210 in | 85 | 5.6 mm | 0.187 in | Natural | -40 | Nylon 6/6 | 14.3 | 22.2 | 0.030 | 1 | 0.078 in | 0.8 mm | - | - | |
PS-10-01 | UL94 V-2 | 7.1 | 4.8 | UL E70062 | 2.0 mm | 0.210 in | 85 | 5.6 mm | 0.187 in | Natural | -40 | Nylon 6/6 | 14.3 | 15.9 | 0.030 | 1 | 0.078 in | 0.8 mm | - | - | |
PS-8-01 | UL94 V-2 | 7.1 | 4.8 | UL E70062 | 2.0 mm | 0.210 in | 85 | 5.6 mm | 0.187 in | Natural | -40 | Nylon 6/6 | 14.3 | 12.7 | 0.030 | 1 | 0.078 in | 0.8 mm | - | - | |
PS-12-01 | UL94 V-2 | 7.1 | 4.8 | UL E70062 | 2.0 mm | 0.210 in | 85 | 5.6 mm | 0.187 in | Natural | -40 | Nylon 6/6 | 14.3 | 19.1 | 0.030 | 1 | 0.078 in | 0.8 mm | - | - | |
PS-7-19 | UL94 V-0 | 7.1 | 4.8 | UL E70062 | 2.0 mm | 0.210 in | 110 | 5.6 mm | 0.187 in | Natural | -40 | Nylon 6/6 | 14.3 | 11.1 | 0.030 | 1 | 0.078 in | 0.8 mm | - | - | |
PS-6-19 | UL94 V-0 | 7.1 | 4.8 | UL E70062 | 2.0 mm | 0.210 in | 110 | 5.6 mm | 0.187 in | Natural | -40 | Nylon 6/6 | 14.3 | 9.5 | 0.030 | 1 | 0.078 in | 0.8 mm | - | - |
Per page:
1-10 of 25
1–5 of 25 variants
Per page:
PS-10-19
Material Flammability Standard
UL94 V-0
Body Diameter
7.1
Hole Diameter
4.8
UL/CSA Description
UL E70062
PS-3-01
Material Flammability Standard
UL94 V-2
Body Diameter
7.1
Hole Diameter
4.8
UL/CSA Description
UL E70062
PS-14-19
Material Flammability Standard
UL94 V-0
Body Diameter
7.1
Hole Diameter
4.8
UL/CSA Description
UL E70062
PS-14-01
Material Flammability Standard
UL94 V-2
Body Diameter
7.1
Hole Diameter
4.8
UL/CSA Description
UL E70062
Per page:
1–5 of 26
