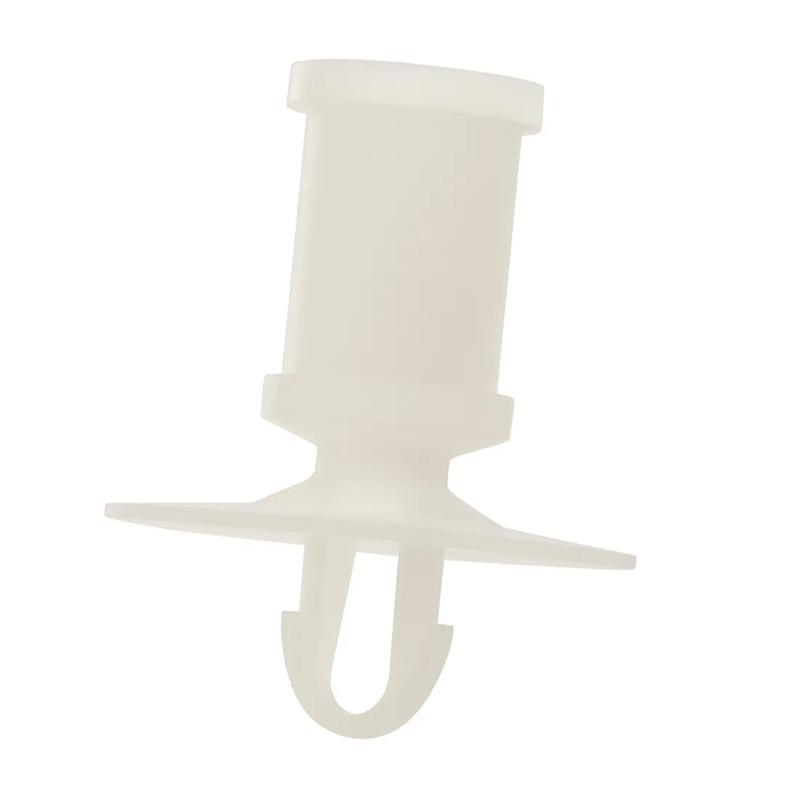

SRCPST - Cupped Teardrop Push Spacer
Showing 1-9 of 9
Per page:1-9 of 9
Item Code | Material Flammability Standard | Body Diameter | Hole Diameter | UL/CSA Description | Maximum Panel Thickness | Locking Head Height B | Maximum Panel Thickness B | Maximum Operating Temperature | Locking Head Height | Hole Diameter B | Color | Minimum Operating Temperature | Material | Overall Width | Spacer Length | Exposed End Diameter | Overall Diameter | Hole B Fix Type | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CPST-3-01 | UL94 V-2 | 4.4 | 2.5 | UL E70062 | 1.6 mm | 0.080 in | 0.062 in | 85 | 2.0 mm | 0.100 in | Natural | -40 | Nylon 6/6 | 9.5 | 4.8 | - | - | - | |
CPST-4-01 | UL94 V-2 | 4.4 | 2.5 | UL E70062 | 1.6 mm | 0.080 in | 0.062 in | 85 | 2.0 mm | 0.100 in | Natural | -40 | Nylon 6/6 | 9.5 | 6.4 | - | - | - | |
CPST-10-01 | UL94 V-2 | 4.4 | 2.5 | UL E70062 | 1.6 mm | 0.080 in | 0.062 in | 85 | 2.0 mm | 0.100 in | Natural | -40 | Nylon 6/6 | 9.5 | 15.9 | - | - | - | |
CPST-2-01 | UL94 V-2 | 4.4 | 2.5 | UL E70062 | 1.6 mm | 0.080 in | 0.062 in | 85 | 2.0 mm | 0.100 in | Natural | -40 | Nylon 6/6 | 9.5 | 3.2 | - | - | - | |
CPST-5-01 | UL94 V-2 | 4.4 | 2.5 | UL E70062 | 1.6 mm | 0.080 in | 0.062 in | 85 | 2.0 mm | 0.100 in | Natural | -40 | Nylon 6/6 | 9.5 | 7.9 | - | - | - | |
CPST-9-01 | UL94 V-2 | 4.4 | 2.5 | UL E70062 | 1.6 mm | 0.080 in | 0.062 in | 85 | 2.0 mm | 0.100 in | Natural | -40 | Nylon 6/6 | 9.5 | 14.3 | - | - | - | |
CPST-6-01 | UL94 V-2 | 4.4 | 2.5 | UL E70062 | 1.6 mm | 0.080 in | 0.062 in | 85 | 2.0 mm | 0.100 in | Natural | -40 | Nylon 6/6 | 9.5 | 9.5 | - | - | - | |
CPST-7-01 | UL94 V-2 | 4.4 | 2.5 | UL E70062 | 1.6 mm | 0.080 in | 0.062 in | 85 | 2.0 mm | 0.100 in | Natural | -40 | Nylon 6/6 | 9.5 | 11.1 | - | - | - | |
CPST-8-01 | UL94 V-2 | - | 0.100 in | - | 0.062 in | 0.080 in | 0.062 in | 185 | 0.080 in | 0.100 in | Natural | -40 | Nylon 6/6 | - | 0.500 | - | 0.375 in | Snap Lock |
Per page:
1-9 of 9
1–5 of 9 variants
Per page:
CPST-3-01
Material Flammability Standard
UL94 V-2
Body Diameter
4.4
Hole Diameter
2.5
UL/CSA Description
UL E70062
CPST-4-01
Material Flammability Standard
UL94 V-2
Body Diameter
4.4
Hole Diameter
2.5
UL/CSA Description
UL E70062
CPST-10-01
Material Flammability Standard
UL94 V-2
Body Diameter
4.4
Hole Diameter
2.5
UL/CSA Description
UL E70062
CPST-2-01
Material Flammability Standard
UL94 V-2
Body Diameter
4.4
Hole Diameter
2.5
UL/CSA Description
UL E70062
Per page:
1–5 of 10
