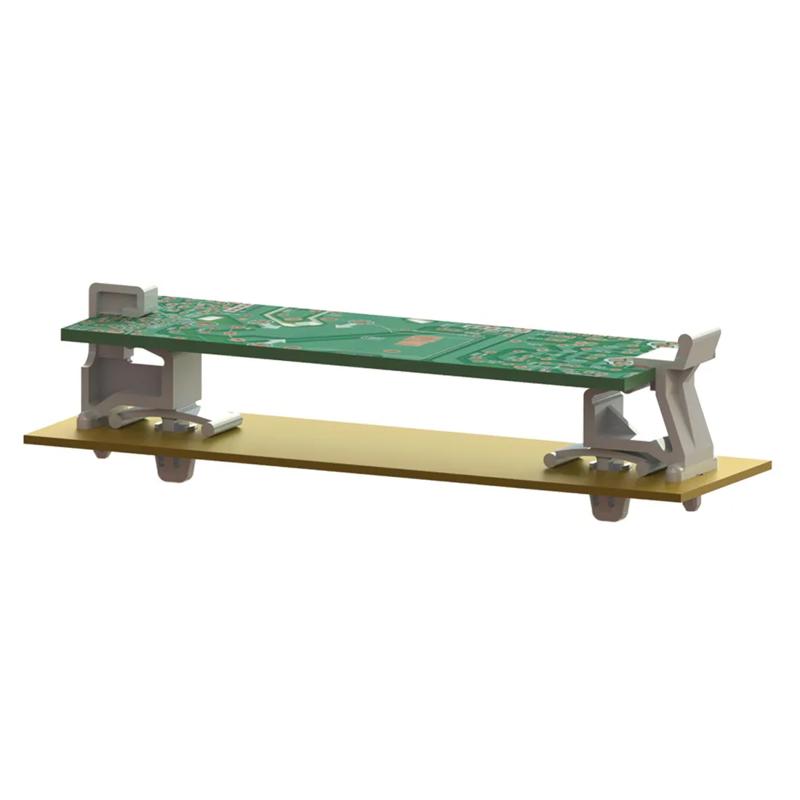

SRUBM - Universal Board Mount
Showing 1-3 of 3
Per page:1-3 of 3
Item Code | Minimum Panel Thickness A | Material Flammability Standard | Hole A Fix Type | Color | Spacer Length | UL/CSA Description | Hole B Fix Type | Locking Head Height B | Locking Head Height A | Minimum Operating Temperature | Material | Style | Maximum Panel Thickness B | Minimum Panel Thickness B | Maximum Panel Thickness A | Maximum Operating Temperature | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
UBM-22.0M-01 | 1.6 mm | UL94 V-2 | Unlocking Fix | Natural | 22.0 | UL E70062 | Snap Lock Fix | 5.3 mm | 3.9 | -40 | Nylon 6/6 | 1 | 2.3 | 1.0 mm | 2.3 | 85 | |
UBM-15.5M-01 | 1.6 mm | UL94 V-2 | Unlocking Fix | Natural | 15.5 | UL E70062 | Snap Lock Fix | 5.3 mm | 3.9 | -40 | Nylon 6/6 | 1 | 2.3 | 1.0 mm | 2.3 | 85 | |
UBM-12.3M-01 | 1.6 mm | UL94 V-2 | Unlocking Fix | Natural | 12.3 | UL E70062 | Snap Lock Fix | 5.3 mm | 3.9 | -40 | Nylon 6/6 | 1 | 2.3 | 1.0 mm | 2.3 | 85 |
Per page:
1-3 of 3
1–4 of 3 variants
Per page:
UBM-22.0M-01
Minimum Panel Thickness A
1.6 mm
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Unlocking Fix
Color
Natural
UBM-15.5M-01
Minimum Panel Thickness A
1.6 mm
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Unlocking Fix
Color
Natural
UBM-12.3M-01
Minimum Panel Thickness A
1.6 mm
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Unlocking Fix
Color
Natural
