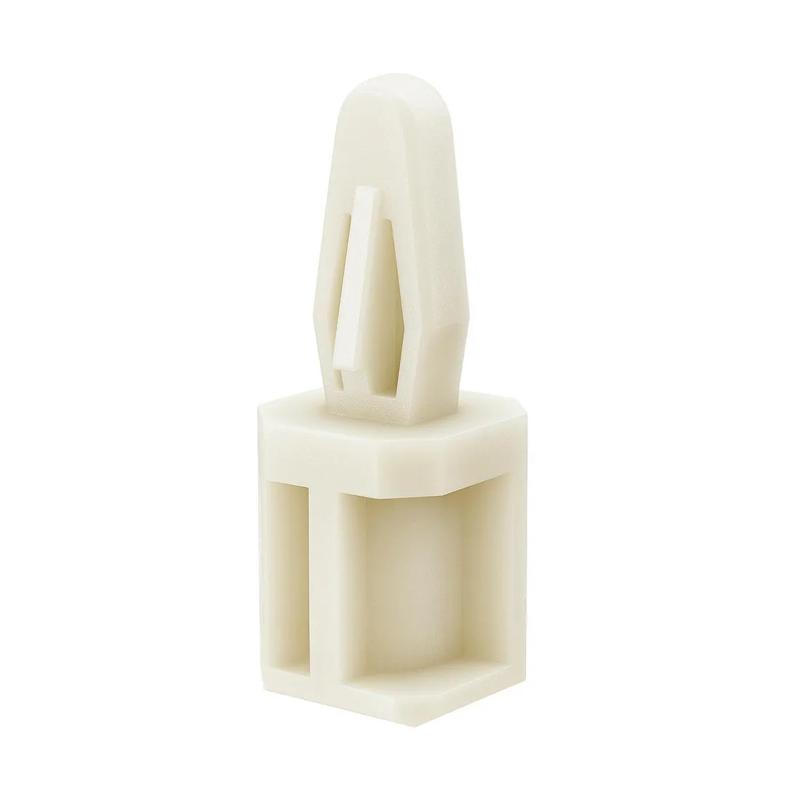

SRTCBS - Self-Tapping Locking PCB Support
Showing 1-10 of 18
Per page:1-10 of 18
Item Code | Internal Thread Size | Hole A Fix Type | Spacer Length | UL/CSA Description | Distance Across Flats | Style | Locking Head Height | Spacer Shape | Material Flammability Standard | Mounting Method | Hole Diameter B | Color | Hole Diameter | Hole Diameter A | Minimum Operating Temperature | Thread Size | Material | Maximum Panel Thickness | Internal Thread Length | Hole B Fix Type | Maximum Panel Thickness A | Maximum Operating Temperature | Locking Head Height A | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TCBS-10-01 | #6;M3.5 | Snap Lock | 15.9 | UL E70062 | 7.9 mm | 1 | 10.2 mm | Hexagonal | UL94 V-2 | Snap-Lock | 3.5 mm | Natural | 4.0 | 4.0 mm | -40 °C | #6 | Nylon 6/6 | 1.6 mm | 7.9 mm | Female Thread | 1.57 mm | 85 °C | - | |
TCBS-12-19 | #6;M3.5 | Snap Lock | 19.1 | UL E70062 | 7.9 | 1 | 10.2 mm | Hexagonal | UL94 V-0 | Snap-Lock | 3.5 mm | Natural | 4.0 | 4.0 | -40 | #6 | Nylon 6/6 | 1.6 mm | 7.9 mm | Female Thread | 1.57 | 110 | 0.400 in | |
TCBS-10-19 | #6;M3.5 | Snap Lock | 15.9 | UL E70062 | 7.9 | 1 | 10.2 mm | Hexagonal | UL94 V-0 | Snap-Lock | 3.5 mm | Natural | 4.0 | 4.0 | -40 | #6 | Nylon 6/6 | 1.6 mm | 7.9 mm | Female Thread | 1.57 | 110 | 0.400 in | |
TCBS-14-01 | #6;M3.5 | Snap Lock | 22.2 | UL E70062 | 7.9 | 1 | 10.2 mm | Hexagonal | UL94 V-2 | Snap-Lock | 3.5 mm | Natural | 4.0 | 4.0 | -40 | #6 | Nylon 6/6 | 1.6 mm | 7.9 mm | Female Thread | 1.57 | 85 | 0.400 in | |
TCBS-22.5-19 | #6;M3.5 | Snap Lock | 35.7 | UL E70062 | 7.9 | 1 | 10.2 mm | Hexagonal | UL94 V-0 | Snap-Lock | 3.5 mm | Natural | 4.0 | 4.0 | -40 | #6 | Nylon 6/6 | 1.6 mm | 7.9 mm | Female Thread | 1.57 | 110 | 0.400 in | |
TCBS-16-01 | #6;M3.5 | Snap Lock | 25.4 | UL E70062 | 7.9 | 1 | 10.2 mm | Hexagonal | UL94 V-2 | Snap-Lock | 3.5 mm | Natural | 4.0 | 4.0 | -40 | #6 | Nylon 6/6 | 1.6 mm | 7.9 mm | Female Thread | 1.57 | 85 | 0.400 in | |
TCBS-18-01 | #6;M3.5 | Snap Lock | 28.6 | UL E70062 | 7.9 | 1 | 10.2 mm | Hexagonal | UL94 V-2 | Snap-Lock | 3.5 mm | Natural | 4.0 | 4.0 | -40 | #6 | Nylon 6/6 | 1.6 mm | 7.9 mm | Female Thread | 1.57 | 85 | 0.400 in | |
TCBS-6-19 | #6;M3.5 | Snap Lock | 9.5 | UL E70062 | 7.9 | 1 | 10.2 mm | Hexagonal | UL94 V-0 | Snap-Lock | 3.5 mm | Natural | 4.0 | 4.0 | -40 | #6 | Nylon 6/6 | 1.6 mm | 7.9 mm | Female Thread | 1.57 | 110 | 0.400 in | |
TCBS-12-01 | #6;M3.5 | Snap Lock | 19.1 | UL E70062 | 7.9 | 1 | 10.2 mm | Hexagonal | UL94 V-2 | Snap-Lock | 3.5 mm | Natural | 4.0 | 4.0 | -40 | #6 | Nylon 6/6 | 1.6 mm | 7.9 mm | Female Thread | 1.57 | 85 | 0.400 in |
Per page:
1-10 of 18
1–5 of 18 variants
Per page:
TCBS-10-01
Internal Thread Size
#6;M3.5
Hole A Fix Type
Snap Lock
Spacer Length
15.9
UL/CSA Description
UL E70062
TCBS-12-19
Internal Thread Size
#6;M3.5
Hole A Fix Type
Snap Lock
Spacer Length
19.1
UL/CSA Description
UL E70062
TCBS-10-19
Internal Thread Size
#6;M3.5
Hole A Fix Type
Snap Lock
Spacer Length
15.9
UL/CSA Description
UL E70062
TCBS-14-01
Internal Thread Size
#6;M3.5
Hole A Fix Type
Snap Lock
Spacer Length
22.2
UL/CSA Description
UL E70062
Per page:
1–5 of 19
