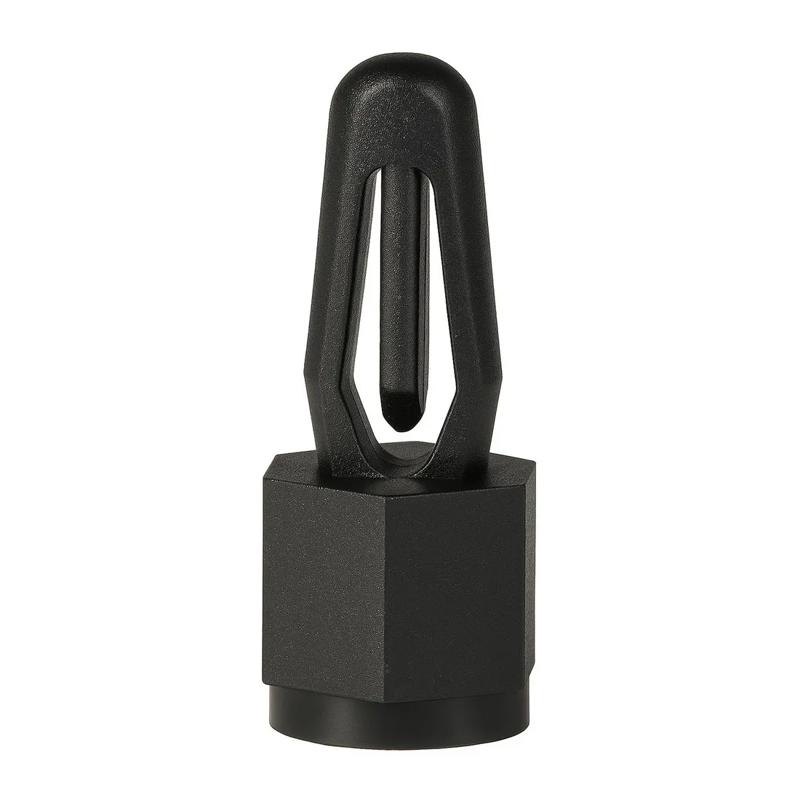

SRTCBN - Metric Female Threaded Locking PCB Support
Showing 1-6 of 6
Per page:1-6 of 6
Item Code | Internal Thread Size | Material Flammability Standard | Hole A Fix Type | Color | Spacer Length | UL/CSA Description | Distance Across Flats | Locking Head Height A | Style | Locking Head Height | Hole Diameter | Hole Diameter A | Minimum Operating Temperature | Thread Size | Material | Internal Thread Length | Hole B Fix Type | Maximum Panel Thickness A | Maximum Operating Temperature | Type | Spacer Shape | Maximum Panel Thickness | Thread Type | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TCBN-T1-M4-8-6 | M4 | UL94 HB | Snap Lock | Black | 6.0 mm | UL E41938 | 8.0 mm | 9.5 mm | 2 | 9.5 mm | 4.0 mm | 4.0 mm | -40 | M4 | Nylon 6/6 | 4.0 mm | Female Thread | 1.6 mm | 110 | Female | Hexagonal | - | - | |
TCBN-T1-M3-6-8 | M3 | UL94 HB | Snap Lock | Black | 8.0 | UL E41938 | 6.0 | 0.374 in | 2 | 9.5 mm | 4.0 mm | 4.0 | -40 | M3 | Nylon 6/6 | 6.0 mm | Female Thread | 1.6 | 110 | - | - | 1.6 mm | - | |
TCBN-T1-M4-8-8 | M4 | UL94 HB | Snap Lock | Black | 8.0 mm | UL E41938 | 8.0 mm | - | 2 | 9.5 mm | 4.0 mm | 4.0 mm | -40 | M4 | Nylon 6/6 | 6.0 mm | Female Thread | 1.6 mm | 110 | - | - | 1.6 mm | - | |
TCBN-T1-M4-8-5 | M4 | UL94 HB | Snap Lock | Black | 5.0 mm | - | 8.0 mm | 9.5 mm | 2 | - | 4.0 mm | 4.0 mm | -40 | M4 | Nylon 6/6 | 3.0 mm | Female Thread | 1.6 mm | 110 | Female | Hexagonal | 1.6 mm | Metric | |
TCBN-T1-M3-6-5 | M3 | UL94 HB | Snap Lock | Black | 5.0 | - | 6.0 | 9.5 | 2 | - | 4.0 | 4.0 | -40 | M3 | Nylon 6/6 | 3.0 mm | Female Thread | 1.6 | 110 | Locking PCB Support | Hexagonal | 1.6 mm | - | |
TCBN-T1-M3-6-6 | M3 | UL94 HB | Snap Lock | Black | 6.0 | UL E41938 | 6.0 | 0.374 in | 2 | 9.5 mm | 4.0 | 4.0 | -40 | M3 | Nylon 6/6 | 4.0 mm | Female Thread | 1.6 | 110 | - | - | 1.6 mm | - |
Per page:
1-6 of 6
1–5 of 6 variants
Per page:
TCBN-T1-M4-8-6
Internal Thread Size
M4
Material Flammability Standard
UL94 HB
Hole A Fix Type
Snap Lock
Color
Black
TCBN-T1-M3-6-8
Internal Thread Size
M3
Material Flammability Standard
UL94 HB
Hole A Fix Type
Snap Lock
Color
Black
TCBN-T1-M4-8-8
Internal Thread Size
M4
Material Flammability Standard
UL94 HB
Hole A Fix Type
Snap Lock
Color
Black
TCBN-T1-M4-8-5
Internal Thread Size
M4
Material Flammability Standard
UL94 HB
Hole A Fix Type
Snap Lock
Color
Black
